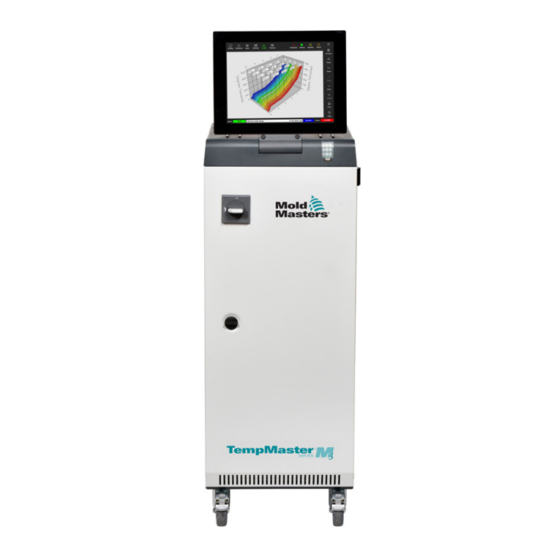

Mold-Masters Tempmaster M3 Quick Manual

Quick Guide for Tempmaster™ M3 Controller
Main Screens and Menus
Configure the Controller
Create a New Tool
Configure Control Cards
Configure Tool Parameters Zone By Zone
Configure Tool and System Settings
Save a Tool / Settings to the Toolstore
Set Zone Temperature
Set up Easyview Screen

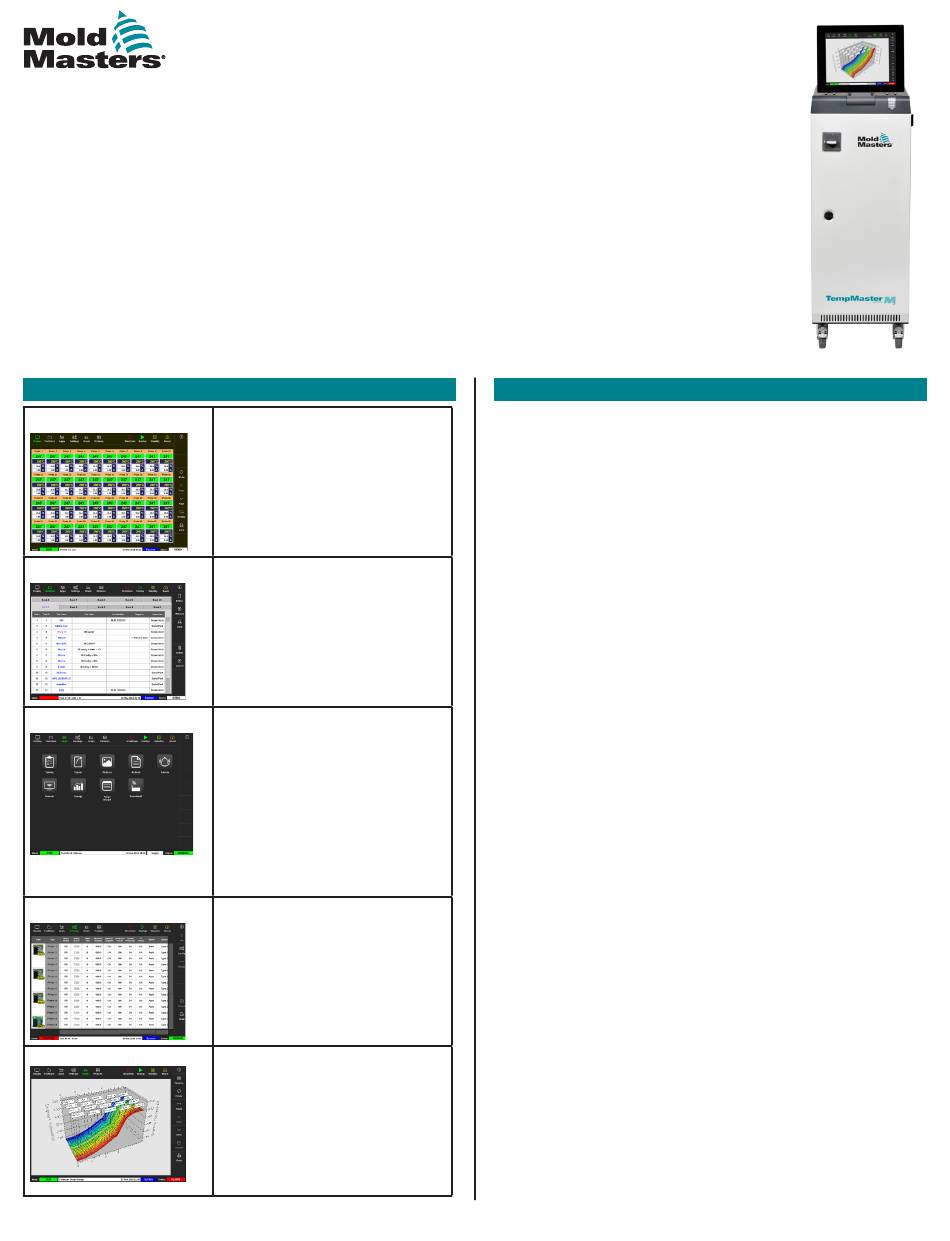

Main Screens and Menus
Display Screen
ToolStore Screen
Apps Screen
Settings Screen
Graph Screen
Refer to the M3 Controller User Manual for full instructions and safety information.
Functions:
Monitor and Information:
observe zone condition
Control: side command buttons
change from page to page
Navigation: tabs allow the user to
switch between the different pages
Description:
List of tools with names and saved
settings.
Gives access to other pages:
•
Testing
•
Export
•
Pictures
•
Actions
•
Alarms
•
Remote
•
Energy
•
Purge Wizard
•
Smart Mold
Description:
Gives access to tool and system
settings.
Description:
Displays graphs of temperature
or power versus time for up to 20
zones.
Operate the Controller
Startup
Load Tool Settings
Change Modes—Individual Zones
Change Modes—Multiple Zones
Check Zone Performance
Shutdown
Global Support
Configure the Controller
Create a New Tool
1. Choose [ToolStore].
2. Choose an empty tool slot and then choose [Detect].
3. Enter the password if required.
4. Enter a tool name.
Configure Control Cards
1. Choose [Settings].
2. Choose a zone from the Type column.
3. Choose [Set].
4. Choose a zone type.
5. Change header color if required.
6. Choose [OK] to accept the changes.
Note: all temperature control cards initally default to probe zones and
use probe default values.
Configure Tool Parameters Zone By Zone
1. Choose [Settings].
2. Choose the zone or zones to be configured and choose the
column of the required parameter.
3. Choose [Set] and enter the password if required.
4. Set the required value.
5. Repeat steps 2 through 5 for each parameter that requires
adjustment.
NOTE: see the user manual for a list of tool parameters and their
descriptions.
Configure Tool / System Settings
1. Choose [Settings] and then choose [Config].
2. Enter the password if required.
3. Choose [Tool Config] from Tool Settings or [System Config] from
System Settings.
4. Choose the required setting and enter the required value or
option.
5. Choose [OK] to accept the value.
IMPORTANT: to save a setting change permanently, save it to the
ToolStore.
2021 Mold-Masters (2007) Limited. All Rights Reserved.
