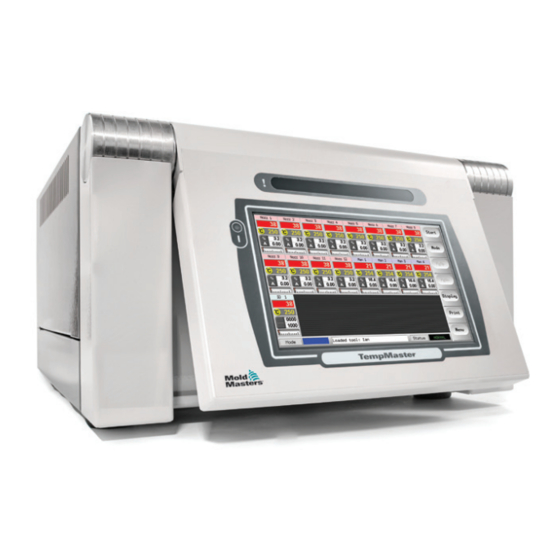

Mold-Masters Tempmaster M1 Quick Manual

Quick Guide for Tempmaster™ M1
Plus Controller
Main Screens and Menus
Configure the Controller
Create a New Tool
Configure Control Cards
Configure Tool Parameters
Configure Controller Parameters
Configure Zone Settings
Set Probe and Manifold Temperatures
Save to the Toolbank

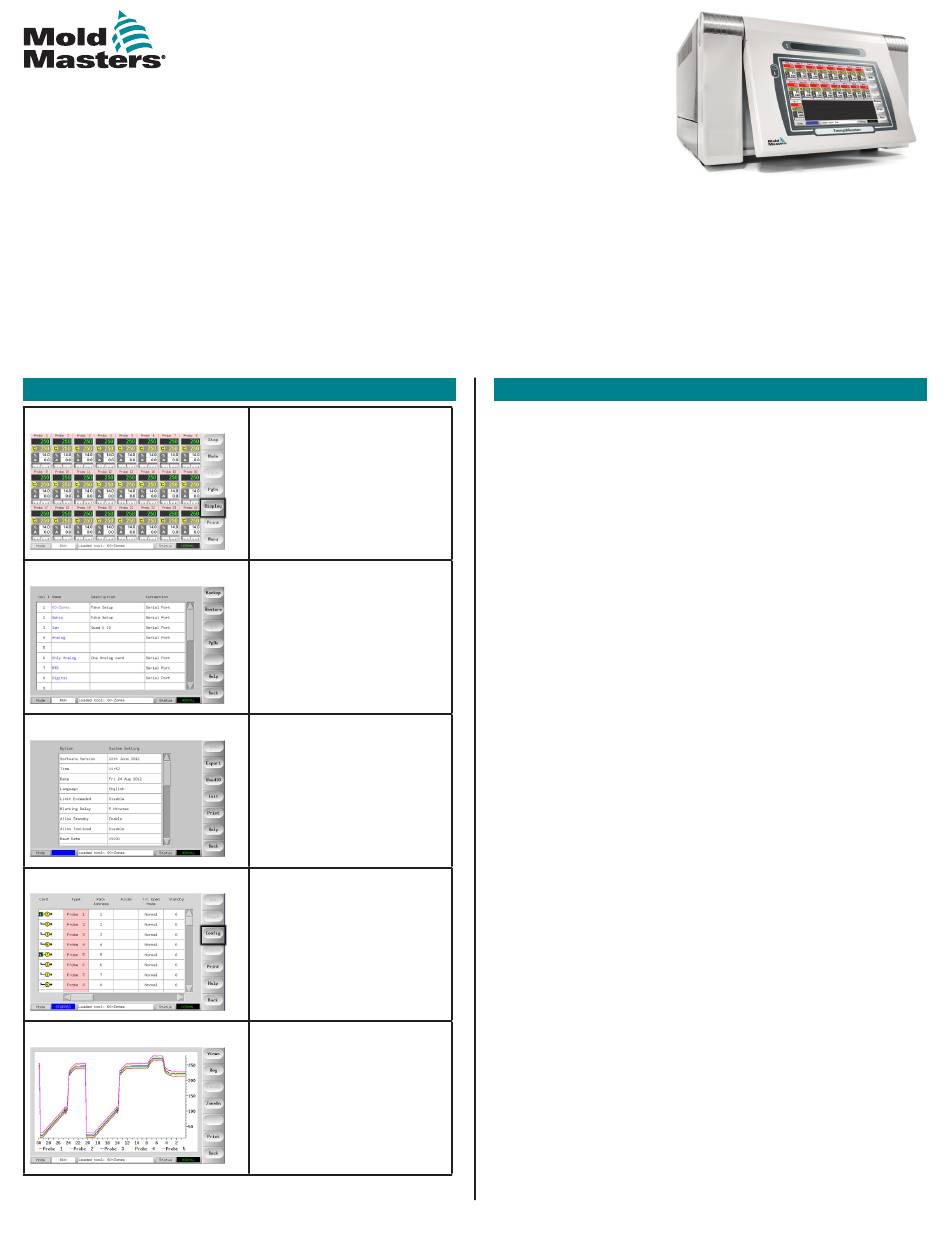

Main Screens and Menus
Main Page
ToolStore Page
Utilities Page
Setup Page
Graph Page
Refer to the M1P Controller User Manual for full instructions and safety information.
Functions:
•
Monitor - observe zone
condition
•
Control - choose mode
•
Navigation - [Menu]
button opens the
Navigation screen
Description:
List of tools with names and
saved settings
Gives access to:
•
Exit
•
Config
•
Export
•
Quad IO
Description:
User can configure and
alter global and specific tool
parameters.
Description:
Displays historical record
of the last 30 minutes of
operation
Operate the Controller
Startup Procedure
Change Or Set Zone Temperatures
Change Modes - Individual Zones
Change Modes - Multiple Zones
Check Zone Performance
Shutdown Procedure
Global Support
Configure the Controller
Create a New Tool
1. Choose [Menu] to open the ToolStore page.
2. Choose a blank tool slot then choose [Detect].
3. Enter system password.
4. Type in a new name for the tool.
5. Choose [Enter].
Configure Control Cards
1. Choose the first zone to be configured.
2. Choose the last zone to be configured.
3. Choose [Range] to include all zones in between.
4. Choose [Set] to see the Configure Card Slot menu.
5. Choose zone type: manifold, spear, monitor, special or not used.
6. Choose header color.
7. Choose [OK].
8. Repeat steps 1 through 4 until all zones are configured.
Note: zones populate with default values which can be accepted or
changed.
Configure Tool Parameters
1. Choose zones of the same type.
2. Choose parameter.
3. Choose [Set].
4. Set value.
5. Choose [Enter].
Note: see User Manual for full listing and description of tool
parameters.
Configure Controller Parameters
1. Choose [Config] to view the global parameters.
2. To view the global parameters and their current settings, choose
[List].
3. Choose setting and required option / function.
4. Choose [OK] to keep the changes or choose [Cancel] to leave
without making changes.
Note: see User Manual for full listing and description of global
parameters.
© 2021 Mold-Masters (2007) Limited. All Rights Reserved
.
