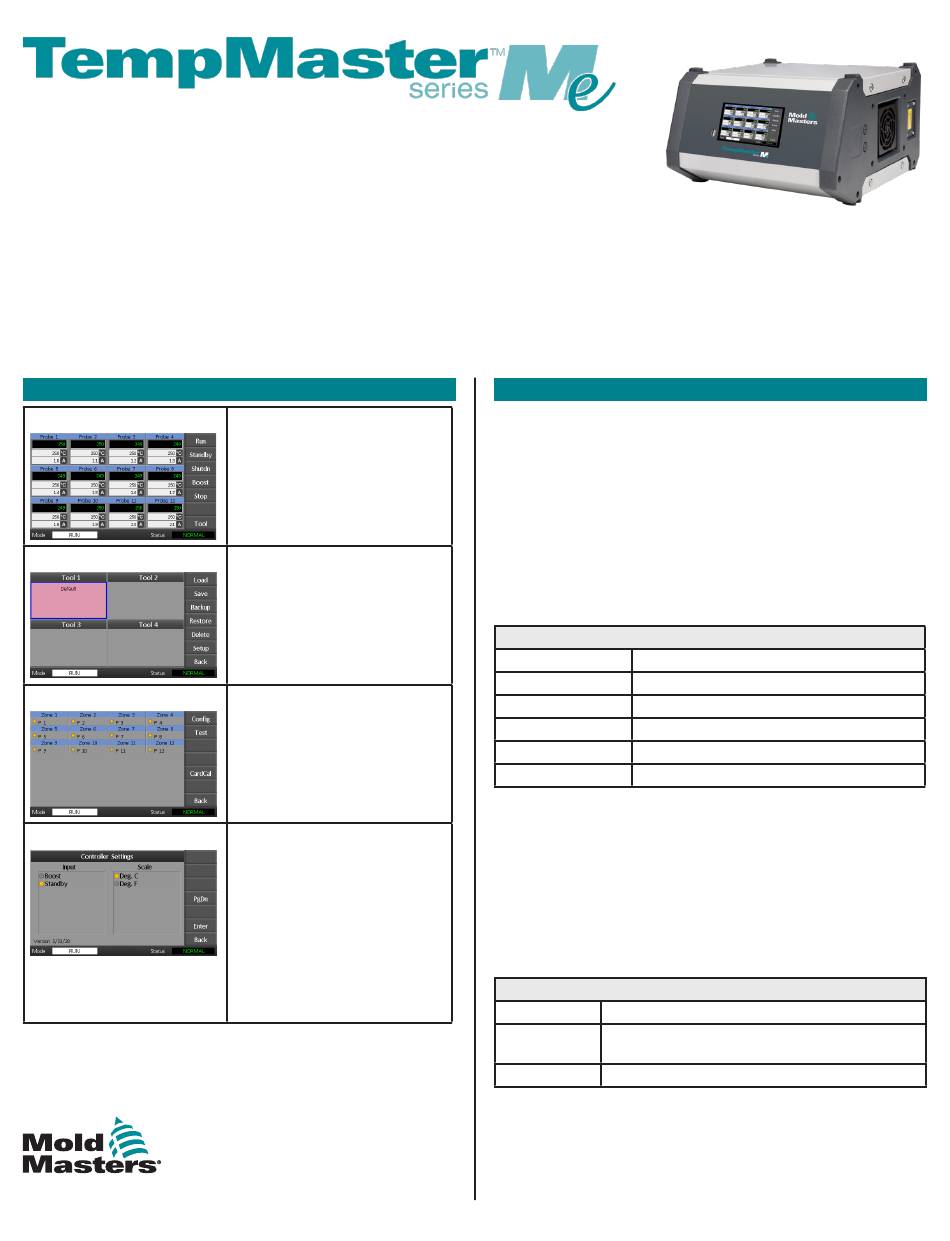

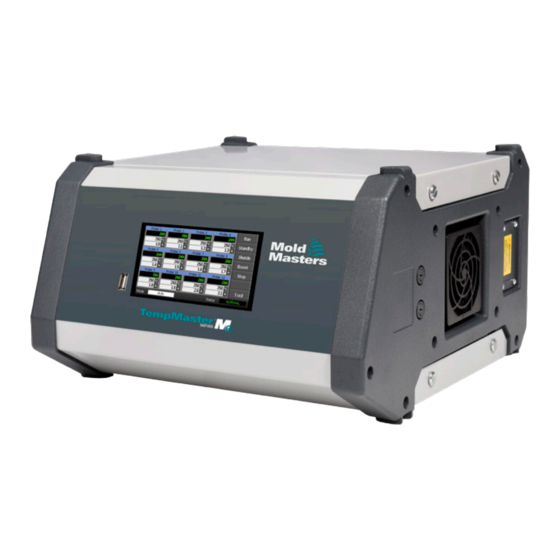

Mold-Masters TempMaster Series Quick Manual

Quick Guide For Tempmaster™ Me Controller
Main Screens and Menus
Configure the Controller
Configure Controller Settings
Configure Global Settings
Configure Zone Settings
Set Zone Limits
Set Zone Temperature
Set Boost Or Standby Temperature
Main Screens and Menus
Main Page
ToolStore Page
Setup Tool Page
Controller Setting Page
Refer to the TempMaster Me Controller User Manual for full instructions and safety information.
Functions:
• Monitor - observe zone
condition
• Control - choose mode
• Set - set or alter setpoint or
Run modes
Description:
List of tools with their names and
saved settings.
Description:
Gives access through [Config]
button to:
• Controller Settings Pages
• Global Settings Page
Description:
Access to set or alter the following
parameters:
• Input
• Scale (temperature)
• Power Display
• Language
• Password Control
• Earth Leakage
Operate the Controller
Change Zone Temperature
Switch To Manual Mode
Switch Modes - Multiple Zones
Global Support
Configure the Controller
Configure Controller Settings
1. Choose [Tool] to open the ToolStore page.
2. Choose [Setup] to open the Options page.
If prompted, enter the System password.
3. Choose [Config].
4. Choose [Options] to open Controller Settings pages.
Use [PgUp] and [PgDn] to view a list of all controller settings.
5. Move the blue selection indicator to an option.
6. Choose [Enter] to confirm or choose [Cancel] to leave without
changing settings.
Controller Settings Options
Input Enables remote input to auxiliary HA4 socket
Scale Choose °C or °F
Power Display Displays percentage power or current
Language Choose language displayed on console
Password Control Enables or disables password access
Earth Leakage Enables or disables earth leakage
Configure Global Settings
1. Choose [Tool] to open the Tool page.
2. Choose [Setup] to open the Options page.
If prompted, enter the System password.
3. Choose [Config].
4. Choose [Global] to open the Global settings page.
5. Choose [Edit] and enter required value.
6. Choose [Back] to close panel and leave without making changes.
Global Settings Options
Boost Time Sets the length of time the Boost temperature is on
Max Limits the highest temperature that user can set
Temperature
Max Power Limits the highest power level that user can set
