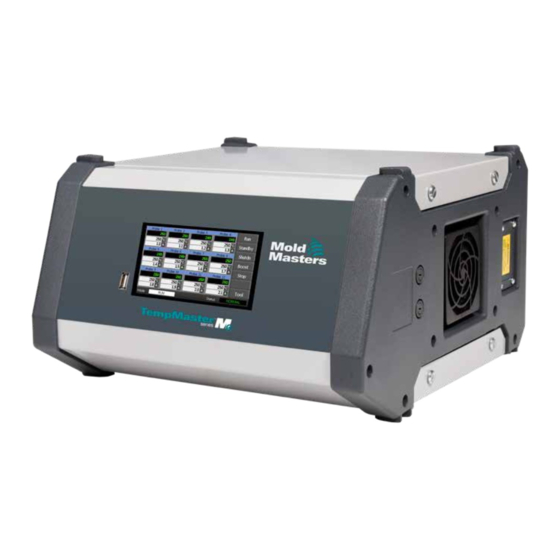

Mold-Masters TempMasters ME Series User Manual
  1. Manuals
  2. Brands
  3. Mold-Masters Manuals
  4. Controller
  5. TempMasters ME Series
  6. User manual

Mold-Masters TempMasters ME Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual for Me6 & Me12
version 1
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TempMasters ME Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mold-Masters TempMasters ME Series

Summary of Contents for Mold-Masters TempMasters ME Series

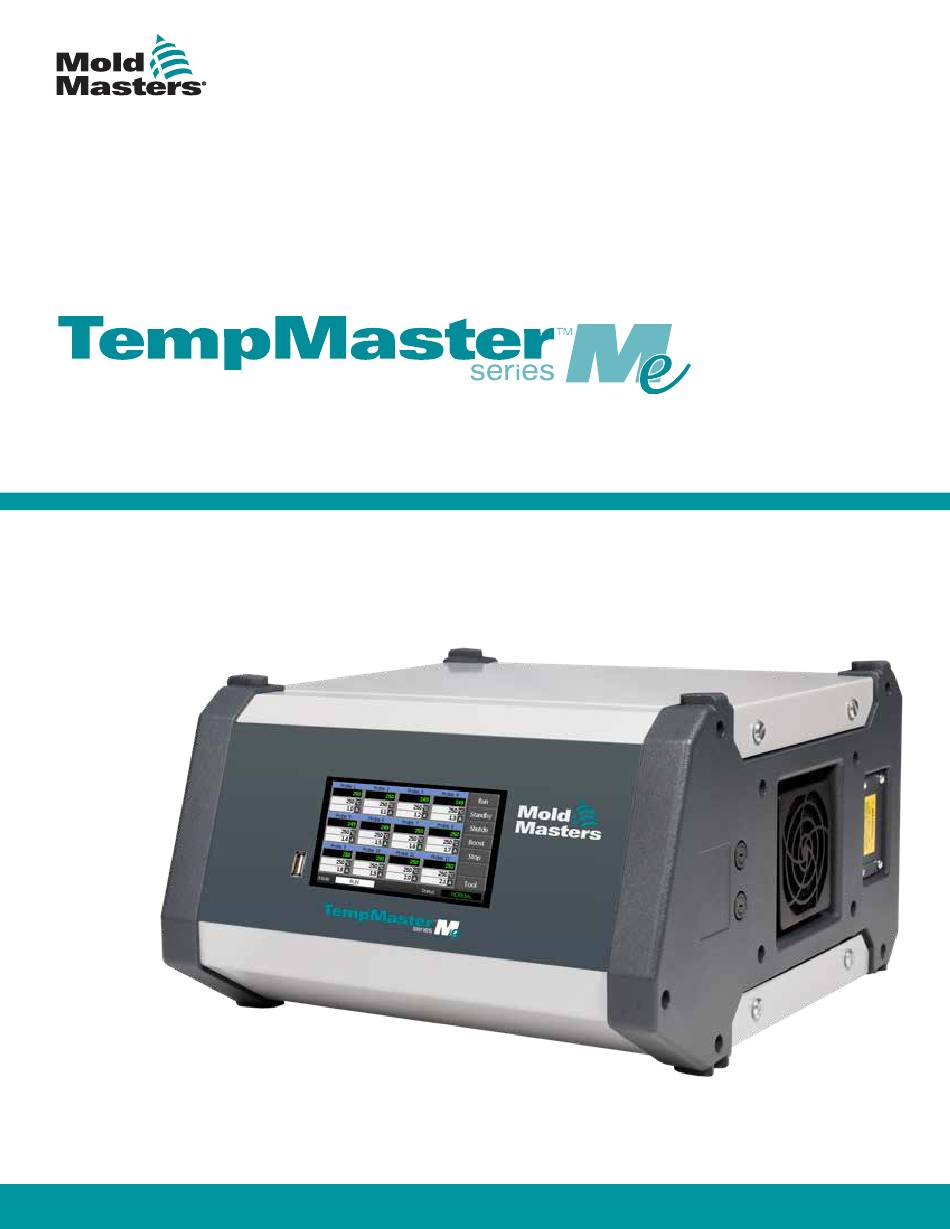

  • Page 1 User Manual for Me6 & Me12 version 1 Original Instructions...
  • Page 2 REMOVE AND RETAIN THIS SHEET Every machine leaves our factory with two levels of password protection. We recommend that you remove this sheet in order to establish your own security. User Password: unix System Password: linux...

  • Page 4: Table Of Contents

    1.2 Release Details ....................1-1 1.3 Warranty Details ....................1-1 1.4 Returned Goods Policy ..................1-1 1.5 Movement or Resale of Mold-Masters Products or Systems ......1-1 1.6 Copyright ......................1-2 1.7 Units of Measure and Conversion Factors ............1-2 Section 2 - Global Support ..........1-4 2.1 Corporate Offices....................1-4...
  • Page 5 6.21 Save the Changed Tool Settings ..............6-17 6.22 Delete a Tool ....................6-19 6.23 Backup Tool Settings ..................6-21 6.24 Restore Tool Settings ..................6-22 6.25 Restore a Tool ....................6-22 Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 6 9.4 Filter Option ......................9-6 9.5 Alarm Output / Auxiliary Input ................9-6 9.6 USB Port ......................9-7 9.7 Standard Tool Connections ................9-8 Index ..................I Section 10 - Index ..............I © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 8: Section 1 - Introduction

    Mold-Masters representative. 1.4 Returned Goods Policy Please do not return any parts to Mold-Masters without pre-authorization and a return authorization number supplied by Mold-Masters. Our policy is one of continuous improvement and we reserve the right to alter product specifications at any time without giving notice.

  • Page 9: Copyright

    INTRODUCTION 1.6 Copyright © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Mold-Masters ® and the Mold-Masters logo are trademarks of Mold-Masters Limited. 1.7 Units of Measure and Conversion Factors NOTE The dimensions given in this manual are from original manufacturing drawings.

  • Page 11: Section 2 - Global Support

    El Marques, Queretaro C.P. 76246 fax: +39 049/5019951 tel: +82-31-431-4756 Mexico italy@moldmasters.com korea@moldmasters.com tel: +52 442 713 5661 (sales) tel: +52 442 713 5664 (service) mexico@moldmasters.com Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 12: International Representatives

    2310 Slovenska Bistrica Kemenskoe City Dnipropetrovsk Russia Slovenija Region 51935, Ukraine tel: +7 (495) 199-14-51 +386 59 969 117 tel: +38 (038) 277-82-82 moldmasters@system.com.ru info@picta.si moldmasters@parkgroup.com.ua Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 14: Section 3 - Safety

    SAFETY Section 3 - Safety 3.1 Introduction Please be aware that the safety information provided by Mold-Masters does not absolve the integrator and employer from understanding and following international and local standards for safety of machinery. It is the responsibility of the end integrator to integrate the final system, provide...

  • Page 15: Safety Hazards

    10. Area inside the guards and outside the mold area Front view with guards removed Front View with Guards Removed Figure 3-1 Hazard areas of an injection molding machine © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 16 Hazards due to reduction in mechanical strength of the plasticizing and / or injection cylinder due to overheating. Feed Opening Pinching and crushing between injection screw movement and housing. See Figure 3-1 area 6 Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 17 Crush or impact hazards caused by the movement of the power operated Gate gates. Vapors and Gases Certain processing conditions and / or resins can cause hazardous fumes or vapors. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 18: Operational Hazards

    • Never perform any work on the mold machine unless the hydraulic pump has been stopped. • Check frequently for possible oil leaks / water leaks. Stop the machine and make repairs. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 19 Failure to support the machine can result in severe injury or death. • Mold cable from the controller to the mold must be removed before servicing the mold. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 20: General Safety Symbols

    Warning – Slip, Trip or Fall Hazard Do not climb on equipment surfaces. Serious slip, trip, or fall injuries can result from personnel climbing on equipment surfaces. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 21: Wiring Check

    / or equipment. Failure to do wiring or connections properly will result in equipment failure. The use of Mold-Masters standard connections can help to eliminate the potential for wiring errors. Mold-Masters Ltd. cannot be responsible for damage caused by customer wiring and / or connection errors.

  • Page 22: Lockout Safety

    Burns from contact with hot parts, materials or equipment such as furnaces • Fires and explosions • Chemical exposures from gases or liquids released from pipelines Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 23: Electrical Lockout

    The last lock to be removed should be that of the person supervising the lockout and this responsibility should not be delegated. © Industrial Accident Prevention Association, 2008. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 24: Energy Forms And Lockout Guidelines

    • Storage tanks and vessels in lockout devices, or lockout attachments) and tag valves. • Bleed off excess liquids or gases. • Blank lines as necessary. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 25: Ground Connection

    Figure 3-2 Ground connection of the Me controller 3.10 Disposal WARNING Mold-Masters declines any responsibility for personal injury or personal damage arising from reuse of the individual components, if these parts are used other than for the original and proper intended purpose.

  • Page 26: Me Controller User Hazards

    The controller cabinet and touchscreen console should be installed in a clean dry environment where the ambient conditions do not exceed the following limits: • Temperature +5 to +45°C • Relative Humidity 90% (non-condensing) Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 28: Section 4 - Overview

    Temperature Control Closed loop (Auto) or open loop (Manual) with HR Method software Temperature Scale Celsius (Centigrade) or Fahrenheit Voltage Bandwidth Stable within (20% supply voltage swing) Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 29: The Controller Cabinet

    The DC power supplies for the cards, data communications and an alarm output relay are all provided by a single power supply unit. This is located on top of the upper chassis panel. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 30: Screen Layout

    The side command buttons change from page to page. Information The bottom row shows • on the left: the Mode window • on the right: the Status window Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 31: Main Page

    Error message Problem detected. reads as white text See Table 8-1 for a list of possible on red background. error messages. Zone Off Individual zone switched off. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 32: Main Page - Change Modes

    OVERVIEW 4.11 Main Page - Change Modes The main page shows all available modes. Confirmation is required to choose a new mode. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 33: More

    OVERVIEW 4.12 More Pages The ToolStore Page The Setup Tool Page The Graph Page The Zoom Page © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 34: The User Interface

    Mode Keys – Auto, Manual and Boost, to set working mode 4.14 Screen Saver The screen backlight turns off after five minutes of inactivity. Touch the screen to reactivate it. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 35: Section 5 - Setup

    Refer to the serial plate on the controller cabinet for confirmation of the supply requirements. If the local supply is outside the specified range, please contact Mold-Masters for advice. WARNING - ELECTRICAL SHOCK HAZARD It is crucial to comply with these warnings to minimize any personal danger.

  • Page 36: Default Settings

    1. Choose [Tool] to open the ToolStore page. 2. Choose [Setup] to open the Setup Tool page. If prompted, enter the System password. 3. Choose [Config] to display the configuration options. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 37 5. Choose an option. The option button will turn blue. 6. Choose [Enter] to confirm the selection or [Back] to leave the page without making any changes. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 38: Set The Global Parameters

    1. Choose [Tool] to open the ToolStore page. 2. Choose [Setup] to open the Setup Tool page. If prompted, enter the System password. 3. Choose [Config] to display the configuration options. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 39 The Maximum Power level that is permitted is 100%. Choose [Edit] to set any parameter or [Back] to close the panel and leave without making any changes. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 40: Zone Settings

    2. Choose [Setup] to open the Setup Tool page. If prompted, enter the System password. 3. Choose one or more zones to see new command buttons. Choose [Set] to view the next page. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 41 5. Choose an option. The option button will turn blue. 6. Choose [Enter] to confirm the selection or [Back] to leave the page without making any changes. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 42: Set The Temperature

    SETUP 5.6 Set the Temperature 1. Choose the first zone. 2. Choose the last zone. 3. Choose [Range]. 4. Choose [Set]. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 43 The system sees this as a temporary condition and will not show an overall alarm condition until the tool has had time to reach the new set temperatures. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 44: Monitor Temperature Limits

    Choose one zone at a time until you have selected all the required zones. • Choose the first zone, the last zone, and [Range] to include all the zones in between. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 45 Temperature limits are applicable to the current scale. A High limit of “10” in Celsius automatically becomes “18” if the scale is changed to Fahrenheit. 8. Choose [Back] to return to Main page. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 46: Set Boost Temperature

    Choose one zone at a time until you have selected all the required zones. • Choose the first zone, the last zone, and [Range] to include all the zones in between. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 47 7. Enter the required Boost temperature. NOTE The maximum permitted Boost temperature is 100° C or 180° F. 8. Choose [Backl] to return to the Main page. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 48: Set Standby Value

    [Set] to show the Zone setting options 4. Choose [Standby] to open the Standby panel. 5. Choose [Edit] from the Standby panel to show the keypad. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 49 6. Enter the required Standby temperature. NOTE The maximum permitted Standby temperature is 100° C or 180° F. 7. Choose [Back] to return to the Main page. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 50: Save A New Tool

    3. Enter the Tool Name and choose the [Enter] button. NOTE The maximum length allowed for a tool name is 12 characters. 4. Choose [Load] and [OK] to accept the new tool. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 51 5. Return to the ToolStore page to see the new tool with the new name. 6. Choose [Back] to return to the Main page with the new tool saved. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 52: Password Security

    Level 1 password or no password, then the System password will expire after 20 seconds. The user will still be able to access any page that requires a Level 1 password or no password. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 53: Set Password Control

    5-19 5.14 Set Password Control 1. Choose [Tool]. 2. Choose [Setup]. If prompted, enter a password. NOTE Either the User or System password can be used. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 54 6. Choose [Enable] to have a higher level password control or [Disable] for Open control. 7. Choose [Enter] to accept the setting or [Back] to return to the Main page. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 55: Password Application Table

    No other function except zone up or down Tools View available tools Load Restore Save Delete Backup New (Create new tools) Tools - Setup Config (Change any values) Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 57: Section 6 - Operation

    When the controller is switched on, all zones go into Stop mode. 6.3 Switch Off (Shutdown) NOTE Mold-Masters recommends that you use the console to shut down the heating load. 1. On the Main page, choose [Stop] to shut down the heating load.

  • Page 58: More About Run And Shutdown

    Temperatures configured. Temperature remains reduced until RUN command is given. STOP Mode Button Set all power levels to zero. Tool cools down to room temperature at its own rate. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 59: Boost Mode - Individual Zones

    3. Enter a password. NOTE Either the User or System password can be used. The keypad is displayed: 4. Choose [Boost] and set the required Boost temperature. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 60 OPERATION The screen returns to the Main page and the boosted temperature is shown: The zone returns to normal temperature after the preset Boost time. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 61: Switch Off Individual Zones

    1. Choose any one or more zones. 2. Choose [Set]. 3. Enter a password. NOTE Either the User or System password can be used. The keypad is shown: Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 62: Return A Zone To Normal Operation

    5. Return to the Main page to check that the selected zone is switched off. 6.8 Return a Zone to Normal Operation 1. Choose the zone. 2. Choose [Set]. 3. On the keypad, choose [On]. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 63: Set Or Change Zone Temperatures

    2. Choose the last zone. 3. Choose [Set]. NOTE Temperature and power settings have preset limits as described in section "5.4 Set the Global Parameters". 4. Enter the password. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 64 The system interprets this as a temporary condition and will not show an overall alarm condition until the tool has had time to attain the new set temperatures. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 65: Change To Manual Mode

    1. Choose the first zone 2. Choose the last zone. 3. Choose [Set]. 4. Enter a password. NOTE Either the User or System password can be used. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 66 OPERATION 6-10 5. Choose [Man] and enter the percentage. Choose [Ent]. NOTE Temperature and power settings have preset limits as described on page 5-5. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 67: Slave Mode

    5. Return to the Main page to check that the first zone is now slaved to the second selected zone. The slaved zone will display the number of the zone to which it has been slaved: Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 68: Alarms

    It will switch to STOP when 90°C / 194°F has been reached. Black text Any zones with Boost temperatures configured BOOST on yellow are being temporarily raised. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 69: Status Window

    The Status Alarm is only active when in RUN mode in order to prevent slower systems from raising unnecessary alarms. Once at their set temperature, systems switch to RUN mode and the alarm becomes active. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 70: Identify Zone Alarms

    The system will not show an overall alarm condition until the tool has had time to reach the new set temperatures. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 71: The Toolstore Page

    3. Choose [Back] to return to the previous page. 4. Choose [Setup]. Enter the System password. The Tool Setup page offers more control of the setup of the tool. See "Section 5 - Setup". Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 72: Load Tool Settings

    1. Choose a tool. 2. Choose [Load]. 3. Enter the System password. 4. Choose [OK] to load the tool. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 73: Save The Tool Settings

    1. Choose a blank tool slot. 2. Choose [Save]. 3. Enter the System password. 4. Enter a new tool name. 5. Choose [Ent]. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 74 10. Leave this page, and make all necessary changes. This process creates a new tool with new settings. To restore the original tool settings, return to the ToolStore page and choose the original tool. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 75: Delete A Tool

    3. Press [OK] to return to the ToolStore page. Choose the tool to be deleted. 5. Choose [Delete]. A prompt appears asking the user to confirm the action. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 76 OPERATION 6-20 6. Choose [OK] to confirm. 7. Return to the ToolStore page to check that the unwanted tool has been deleted. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 77: Backup Tool Settings

    If there is a problem saving to the memory stick, a warning message is displayed. Repeat the procedure using a different memory stick. 4. Remove the memory stick. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 78: Restore Tool Settings

    6.25 Restore a Tool 1. Insert the memory stick. 2. Choose a blank tool slot. 3. Choose [Restore]. 4. Remove the memory stick. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 80: Section 7 - Maintenance

    After completing the test on the first zone, the routine then moves on to subsequent zones until all have been tested. At the end of the test it builds a list of results to show how the test progressed. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 81: Run A Self Diagnostic Test

    1. Choose [Tool]. 2. Choose [Setup]. If prompted, enter the System password. 3. Choose [Test]. 4. Choose [OK] to start the test. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 82 5. At the end of the test, choose [Save] to export the results to an external memory stick as a CSV file. 6. Choose [Back] to leave the test page and return to the ToolStore page. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 83: Interpret The Test Results

    Indicates faulty T/C positioning or close zone proximity. User Stopped The test was stopped. User Skipped The test for this zone was skipped while it was being tested. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 84: Service And Repair The Controller

    7.6 Replacement Parts Mold-Masters does not expect that you will need to repair any controller parts at board level other than fuses. In the unlikely event of any board failure, we provide an excellent repair and exchange facility for all our customers.

  • Page 85: Procedure

    All the supplementary circuits (console supply, power supply, fans) are protected by a pair of fuses that are located on the side of the controller. Table 7-2 Supplementary Fuses Fuse 20 mm anti-surge Rating © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 86: Controller Cards

    Figure 7-1 Only use ceramic body fuses The controller card has protection fuses for the heating load output. Table 7-3 Output Fuse Type Fuse 32 mm Ceramic FF Ultra-Fast Rating 15 A Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 87: Section 8 - Troubleshooting

    If the system detects a malfunction in one or more of the control zones, then it displays an error message on the Main page in place of a temperature value. See "Table 8-1 Fault and Warning Messages" for more details. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 88 • The offending zone can also be slaved thermocouple. to a good zone until the fault can be cleared. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 89 • If the fuse is good, then check the wiring for faults or replace the thermocouple Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 90: Other Possible Fault Conditions

    8.3 Module Removal To remove any control module from the controller, cabinet power must be isolated from the source. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...

  • Page 92: Section 9 - Wiring Of Hot Runner Controller

    Please take care with Star / Delta configuration since incorrect connection may appear to work but can result in damage to the controller. The following standards only apply to controllers wired to Mold-Masters standard. Other specifications may have been stated when the controller was ordered.

  • Page 93: Set The Power Rail To The Star Configuration

    1. Unscrew the terminal cover from the right side panel. 2. Remove the 6 position jumper from the terminal cover. 3. Remove the 3x2 position jumpers from the terminal block. © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 94 4. Insert the 6 position jumper into the terminal block. 5. Place the 3x2 position jumpers in the terminal cover. 6. Screw the terminal cover onto the controller. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 95: Set The Power Rail To The Delta Configuration

    1. Unscrew the terminal cover from the right side panel. 2. Remove the 3x2 position jumpers from the terminal cover. 3. Remove the 6 position jumper from the terminal block © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 96 4. Insert the 3x2 position jumpers into the terminal block. 5. Place the 6 position jumper in the terminal cover. 6. Screw the terminal cover onto the controller. Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 97: Filter Option

    WIRING OF HOT RUNNER CONTROLLER 9.4 Filter Option In countries where noise across power lines is a concern, Mold-Masters recommends that an inline filter is fitted. Please contact Mold-Masters for details. 9.5 Alarm Output / Auxiliary Input An optional cabinet connector provides an alarm output from an internal set of relay contacts.

  • Page 98: Usb Port

    A USB port is provided which enables certain functions such as: • backup and restore tool settings • save tool-test results Table 9-2 Pin Connections Connection Figure 9-2 USB port Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.

  • Page 99: Standard Tool Connections

    Maximum: 230Vac - 16A Figure 9-3 6-zone only – single HAN24E to HASCO Standard 140 mm 56 mm 170 mm Figure 9-4 Harting 24B housing with double lever © 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 Controller User Manual...
  • Page 100 10(+), 22(-) T/C 11 11(+), 23(-) T/C 12 12(+), 24(-) Figure 9-5 12-48 zone -pairs of HANE24E wired to Mold-Masters standard 140 mm 56 mm 170 mm Figure 9-6 Harting 24B housing with double lever Me6 & Me12 Controller User Manual...

  • Page 102: Index

    Language 5-3 Main Page 4-4 Manual Mode 6-10 Mode Window 6-13 Monitoring Temperature Limits 5-10 Operating Modes 6-2, 6-3 Password Override 5-20 Restoring Tool Settings 6-24 Me6 & Me12 Controller User Manual © 2020 Mold-Masters (2007) Limited. All Rights Reserved.
  • Page 103 +65 6261 7793 tel: +82 31 431 4756 tel: +86 512 86162882 e: singapore@moldmasters.com e: korea@moldmasters.com e: china@moldmasters.com   JAPAN tel: +81 44 986 2101 e: japan@moldmasters.com www.moldmasters.com Copyright 2020 Mold-Masters (2007) Limited. All Rights Reserved. Me6 & Me12 User Manual...
