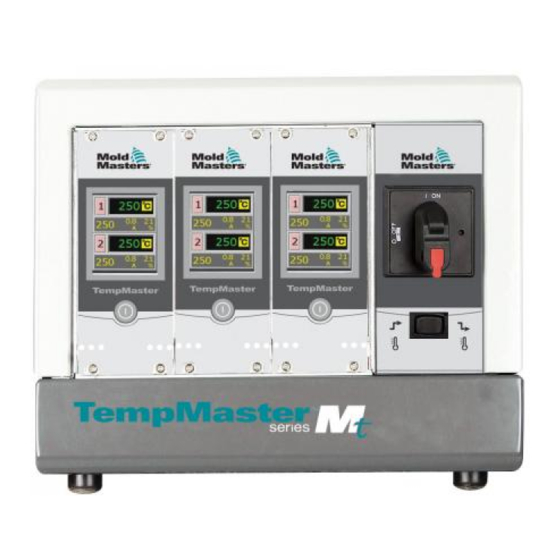

Mold-Masters Tempmaster MT Quick Manual

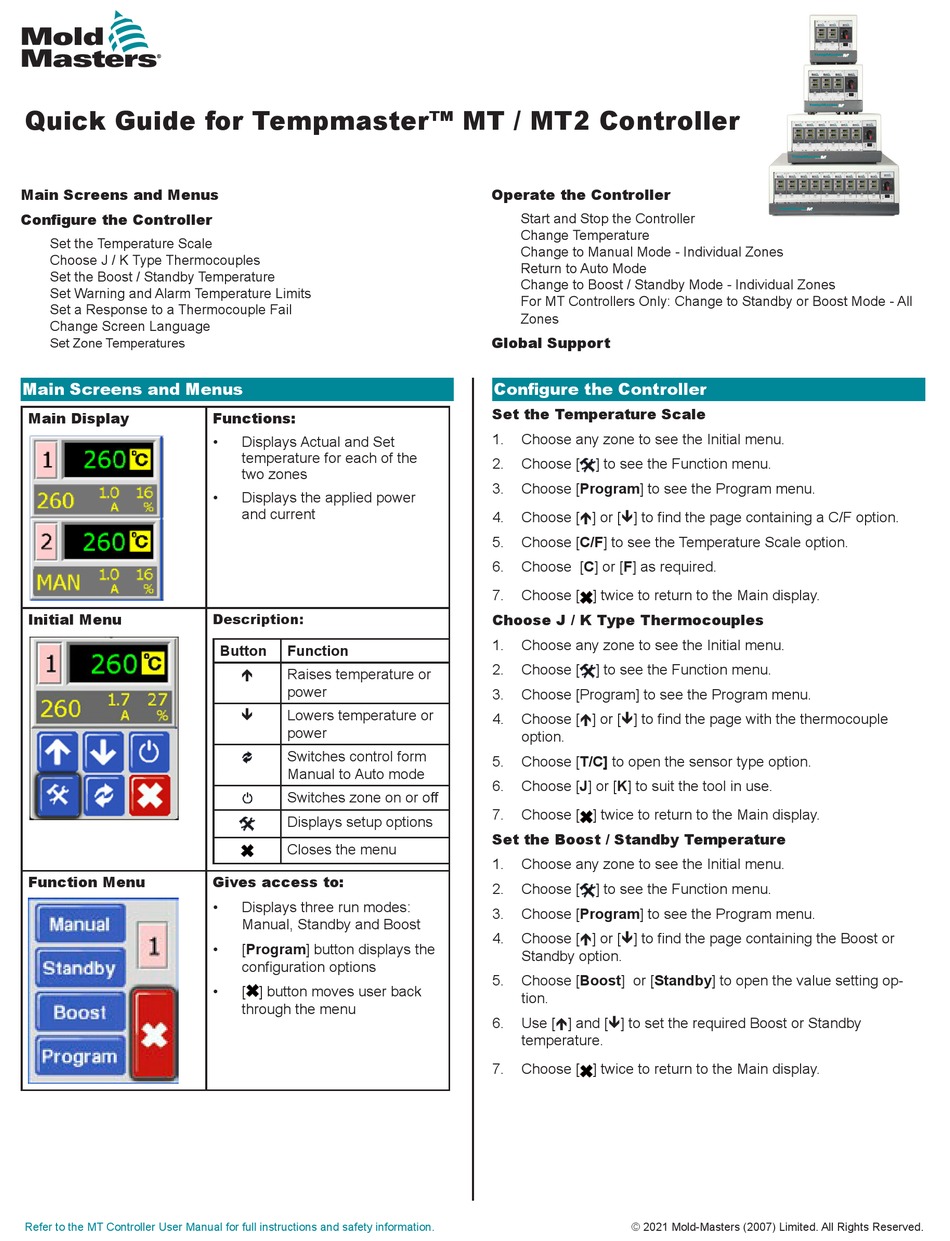

Quick Guide for Tempmaster™ MT / MT2 Controller
Main Screens and Menus
Configure the Controller
Set the Temperature Scale
Choose J / K Type Thermocouples
Set the Boost / Standby Temperature
Set Warning and Alarm Temperature Limits
Set a Response to a Thermocouple Fail
Change Screen Language
Set Zone Temperatures
Main Screens and Menus
Main Display
Initial Menu
Function Menu
Refer to the MT Controller User Manual for full instructions and safety information.
Functions:
• Displays Actual and Set
temperature for each of the
two zones
• Displays the applied power
and current
Description:
Button Function
Raises temperature or

power
Lowers temperature or

power
Switches control form
Manual to Auto mode
Switches zone on or off
Displays setup options
Closes the menu
Gives access to:
• Displays three run modes:
Manual, Standby and Boost
• [Program] button displays the
configuration options
• [ ] button moves user back
through the menu
Operate the Controller
Start and Stop the Controller
Change Temperature
Change to Manual Mode - Individual Zones
Return to Auto Mode
Change to Boost / Standby Mode - Individual Zones
For MT Controllers Only: Change to Standby or Boost Mode - All
Zones
Global Support
Configure the Controller
Set the Temperature Scale
1. Choose any zone to see the Initial menu.
2. Choose [ ] to see the Function menu.
3. Choose [Program] to see the Program menu.
4. Choose [ ] or [ ] to find the page containing a C/F option.
 
5. Choose [C/F] to see the Temperature Scale option.
6. Choose [C] or [F] as required.
7. Choose [ ] twice to return to the Main display.
Choose J / K Type Thermocouples
1. Choose any zone to see the Initial menu.
2. Choose [ ] to see the Function menu.
3. Choose [Program] to see the Program menu.
4. Choose [ ] or [ ] to find the page with the thermocouple
 
option.
5. Choose [T/C] to open the sensor type option.
6. Choose [J] or [K] to suit the tool in use.
7. Choose [ ] twice to return to the Main display.
Set the Boost / Standby Temperature
1. Choose any zone to see the Initial menu.
2. Choose [ ] to see the Function menu.
3. Choose [Program] to see the Program menu.
4. Choose [ ] or [ ] to find the page containing the Boost or
 
Standby option.
5. Choose [Boost] or [Standby] to open the value setting op-
tion.
6. Use [ ] and [ ] to set the required Boost or Standby
 
temperature.
7. Choose [ ] twice to return to the Main display.
