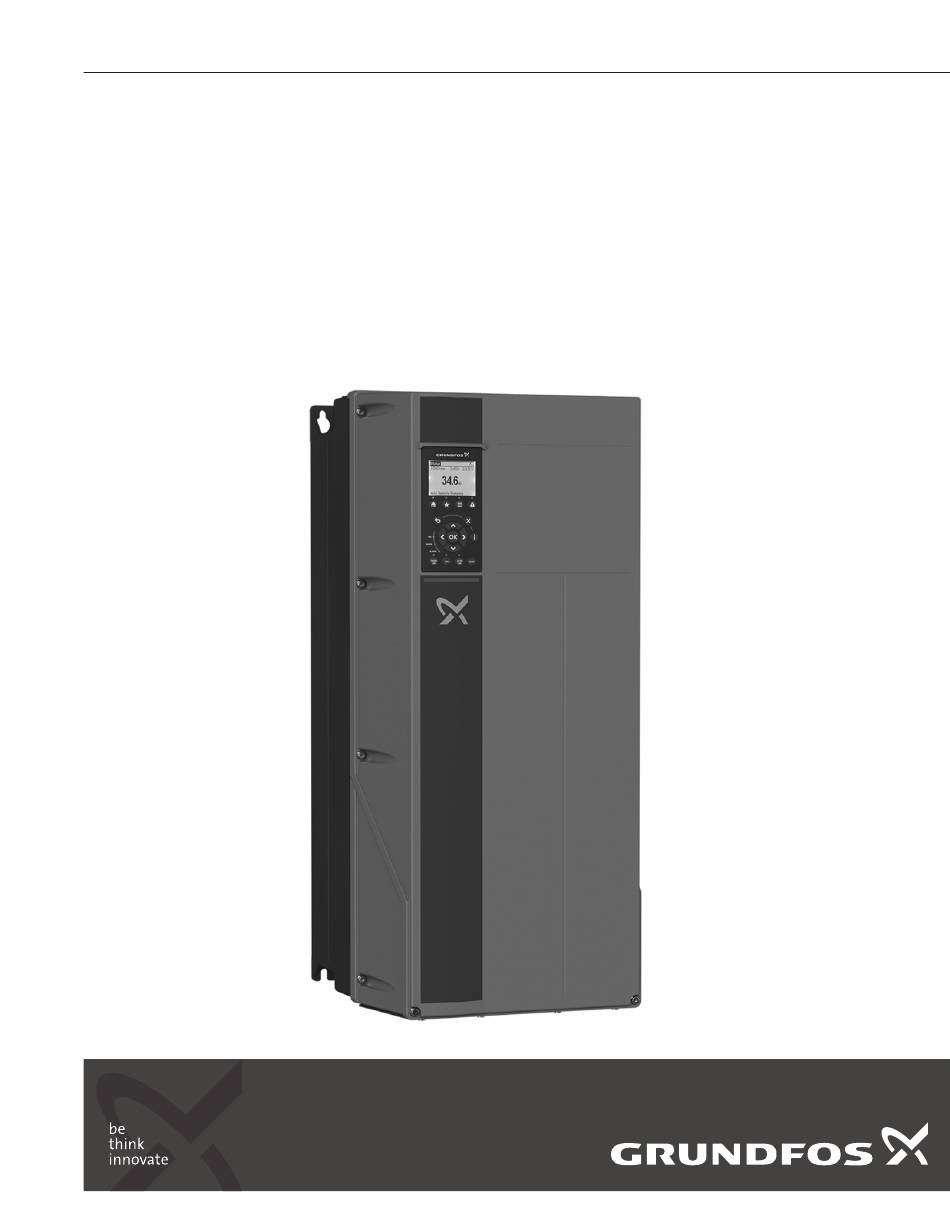

- Page 1 GRUNDFOS INSTRUCTIONS SmartFlo Start-up guide for SP pumps Installation and operating instructions...
- Page 3 SmartFlo English (US) Installation and operating instructions ............4...
-
Page 4: Table Of Contents
SmartFlo Quick guide, SP version ....5 Local Control Panel (keypad) ....6 Menu selection . -
Page 5: Smartflo Quick Guide, Sp Version
2. SmartFlo Quick guide, SP version 5. Plug the terminal strip. 1. Remove the terminal cover. Signal terminals Access to signal terminals 6. Open up the jaw of the terminal by pressing a screwdriver into 2. Set DIP switch A54 to position "I". -
Page 6: Local Control Panel (Keypad)
3. Local Control Panel (keypad) Display Menu selection Navigation Status LEDs WARN. ALARM Operation HAND AUTO RESET 3.1 Menu selection Button Description [Status]: Used for selecting the single-display screen or multi-display screen. Also used for returning to the display mode when in the [Quick Menu] or [Main Menu]. [Favorites Menu]: Gives access to the parameters in the [Favorites Menu]. -
Page 7: Navigation
3.2 Navigation Button Description [Back]: Used for reverting to the previous step or exiting the current parameter subgroup. [Cancel]: Used if a change to the selected parameter is not to be carried out. [Information]: Displays information about a command parameter or function in any display window. Press the [Infor- mation], [Cancel] or [Back] buttons to exit. -
Page 8: Preliminary Configuration
Death or serious personal injury ‐ Touching the electrical parts may be fatal, even after SmartFlo has been switched off. Before starting any work on SmartFlo, the main supply and other input voltages must be switched off for at least 7 minutes. -
Page 9: Transducer Wiring
5. Transducer wiring The type of the supplied transducer: 24 VDC, 4-20 mA, 2-wire with a braided shield. The brown wire (+ 24 VDC) must to be connected to terminal 12. The black wire (signal) must to be connected to terminal 54. The braided shield must be attached to the chassis of the VFD, as seen below. -
Page 10: First-Time Setup Via The "Start-Up Guide
6. First-time setup via the "Start-up Guide" 5. Select "Asynchronous motor" as the motor type. At each step, if defaulted to the correct selection, press Start-up Guide 1(1) the [Down] button to continue to the next step. If the se- Please select the motor of lection needs to be changed, press OK and use the [Up] the pump or select “skip... - Page 11 In the example above, it is assumed that there is no sine-wave filter installed. For Grundfos 230 V 3-phase motors, the direction of motor rotation is correct in case of the following wiring: yellow 11. Select "No" for the question about running an automatic motor motor lead to terminal 96, red motor lead to terminal 97 and adaptation (AMA).
- Page 12 17. Select "4-20mA" for the feedback sensor type. Start-up Guide 1(1) Feedback Sensor Type (Terminal 54) 4-20mA Feedback sensor type 18. Enter "60 psi" as the setpoint. Start-up Guide 1(1) Enter Setpoint 60 psi Setpoint 19. By pressing OK, the setup is completed. Start-up Guide 1(1) Basic set-up is...
-
Page 13: Setting The"End Of Curve Tolerance
Example: Calculation for "End of Curve Tolerance": Setpoint - (37.5% × Sensor range) = 15 psi Setpoint = 60 psi Sensor range = 120 psi Contact the Grundfos Groundwater Contractor Technical Hotline for further assistance. 60.1 psi 0.00A 1(1) 22-5... -
Page 14: Disabling The "Hand On" Mode From The Keypad
8. Disabling the "Hand on" mode from the keypad 1. Press the [Main Menu] button twice to go to the beginning of the main menu. 2. Press OK on the highlighted "0-** Operation/Display" menu. 3. Press the [Down] button until "0-4* LCD Keypad" is highlighted, and press OK. 4. -
Page 15: Locking The Keypad
9. Locking the keypad 1. Press the [Main Menu] button twice to go to the beginning of the main menu. 2. Press OK on the highlighted "0-** Operation/Display" menu. 3. Press the [Down] button until "0-6* Password" is highlighted, and press OK. Keep the value for parameter "0-60 Main Menu Password". -
Page 16: Technical Support
10. Technical support For technical support, contact the Grundfos Groundwater Contractor Technical Hotline which is open 12 hours a day. • Phone: (844) 824-8953 • Email: gwhotline@grundfos.com... - Page 17 U.S.A. GRUNDFOS Water Utility Headquarters 856 Koomey Road Brookshire, Texas 77423 USA GRUNDFOS CBS Inc. 902 Koomey Road Brookshire, TX 77423 USA Phone: 281-994-2700 Toll Free: 1-800-955-5847 Fax: 1-800-945-4777 GRUNDFOS Pumps Corporation 9300 Loiret Boulevard Lenexa, Kansas 66219 USA Tel.: +1 913 227 3400...
- Page 18 92660176 09.2021 ECM: 1323361...
