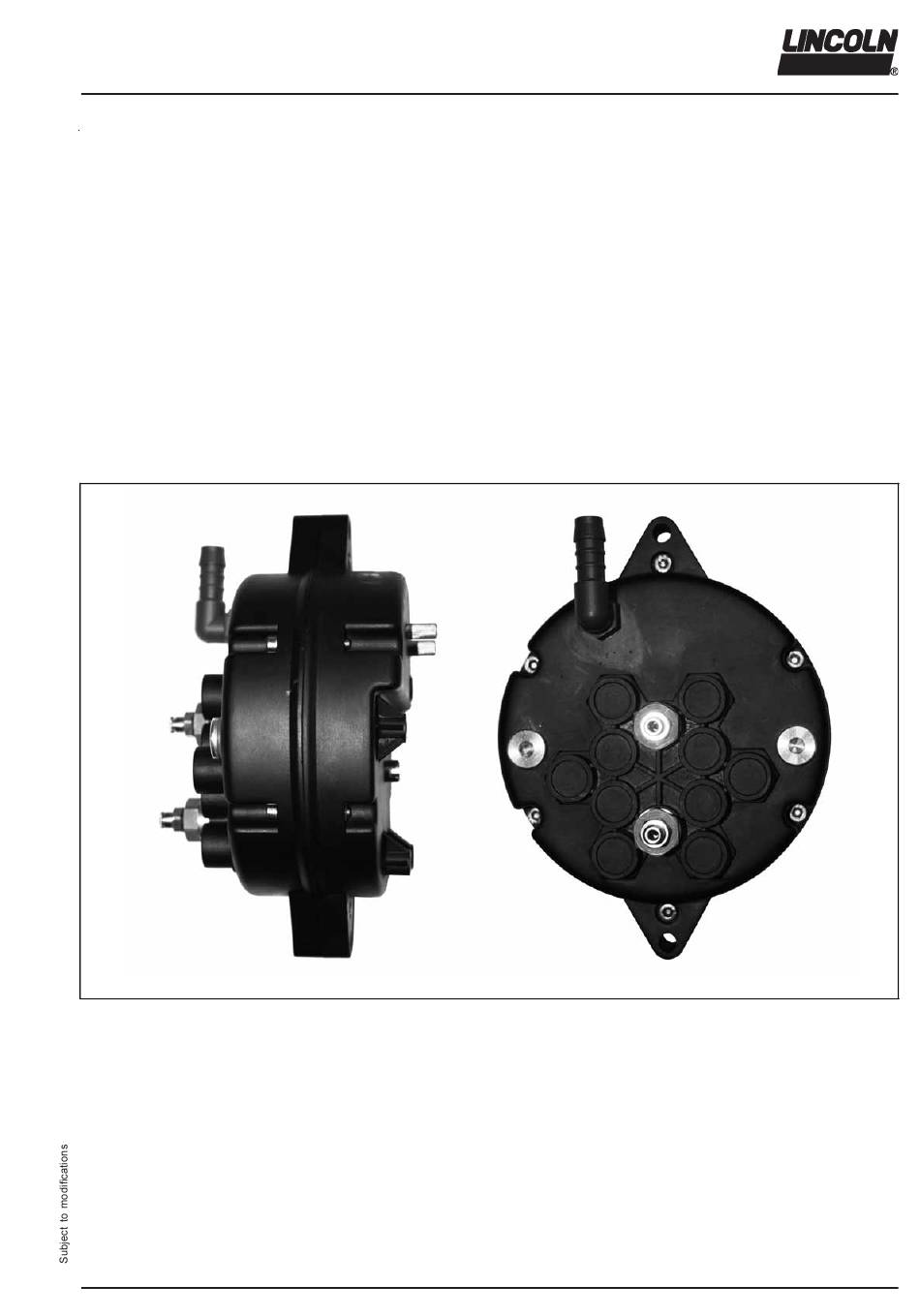

- Page 1 User Manual Operation Instructions 4.1EN-10004-A08 Mechanically-Driven Oil Lubrication Pump MOP 112 6014c07 810-53025-1 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 2 Subject to modifications without prior notification. © 2008 by LINCOLN GmbH Postfach 1263 Phone: +49 (6227) 33-0 D-69183 Walldorf Fax: +49 (6227) 33-259 Page 2 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 3: Table Of Contents
Service ................4 System Design ..............9 Safety Instructions Operating Method .............. 9 Appropriate Use ..............5 Type Code MOP 112 ............10 Misuse ................5 Exclusion of Liability ............ 5 Accident Prevention Regulations ........5 Maintenance and Repair General Safety Instructions ..........5 Maintenance .............. -
Page 4: Introduction
/ system. Therefore, for the operation of your device always use original parts made by Lincoln 1013A94 GmbH. Page 4 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 5: Safety Instructions
Misuse customer are subject to prior consultation with the manu- facturer of the lubrication system or with its appointed Any use of the MOP 112 that is not expressly mentioned in dealer. this User Manual will be regarded as misuse. -
Page 6: Installation
Lubricant feed line (Ø 6 mm) B-MOP112-010a08 //D - Admissible tolerance of smoothness (0.3 mm) Fig. 1 Installation of MOP and reservoir Page 6 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 7: Connection Of The Lubricant Lines
In any application, make sure that the oil quantity is dis- tributed evenly over the whole width of the link chain (Fig. 6 & 7 in Fig. 6). Page 7 of 16 LINCOLN G H • P 1263 • D-69183 W • T +49 (6227) 33-0 •... -
Page 8: Start-Up
Close the reservoir cover again in order to avoid contami- nation inside the reservoir. Fig. 5 Filling of the 5-liter reservoir 6494c05 Reservoir cover Filter insert Page 8 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 9: Description
Operating Method MOP (mechanically-operated oil pump) Pump elements (1 to 12) The MOP 112 mechanically driven oil lubrication system is - Factory configuration, see Fig. 7 driven by the driving shaft A (Fig. 6) of a carrier device (i.e. MOP driving shaft baler). -
Page 10: Type Code Mop 112
IMPORTANT Output diagrams: See Fig. 12 and 13. 6001a02 6872b07 Fig. 7 Configuration of outlet positions Page 10 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 11: Maintenance And Repair
Operation Instructions 4.1EN-10004-A08 Maintenance and Repair CAUTION! Before starting any maintenance or repair work, disconnect the MOP 112 from the power supply to avoid unintended operation. Maintenance work may be carried out by authorized and qualified personnel only. 1013A94 Maintenance... -
Page 12: Technical Data
Fig. 12 and 13). Dimensions 6757c07 1 - Shaft 1 2 - Shaft 2 Fig. 9 Dimensions of the MOP Page 12 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 13: Pump Element
Fig. 10 Dimensions of the pump element Reservoir 6757a07 Fig. 11 Dimensions of the reservoir Page 13 of 16 LINCOLN G H • P 1263 • D-69183 W • T +49 (6227) 33-0 • F +49 (6227) 33-259 OSTFACH ALLDORF... -
Page 14: Output Per Pump Element
2 metering washers 6872e08 Fig. 13 Outputs per pump element with driving shaft 2, Ratio 1 : 7,7 Page 14 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 15: Manufacturer's Declaration
Si dichiara che il prodotto da Bauart von supplied model of déclarons que le produit ci- noi fornito dessous MOP 112 Product: in der von uns gelieferten is intended to be incorporated dans l’exécution dans laquelle è destinato all' installazione Ausführung zum Einbau in eine... - Page 16 Phone: (+1) 314 679 4200 Fax: (+1) 800 424 5359 Fax: (+65) 6588-3438 Web site: Email: sales@lincolnindustrial.com.sg www.lincolnindustrial.com Page 16 of 16 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
