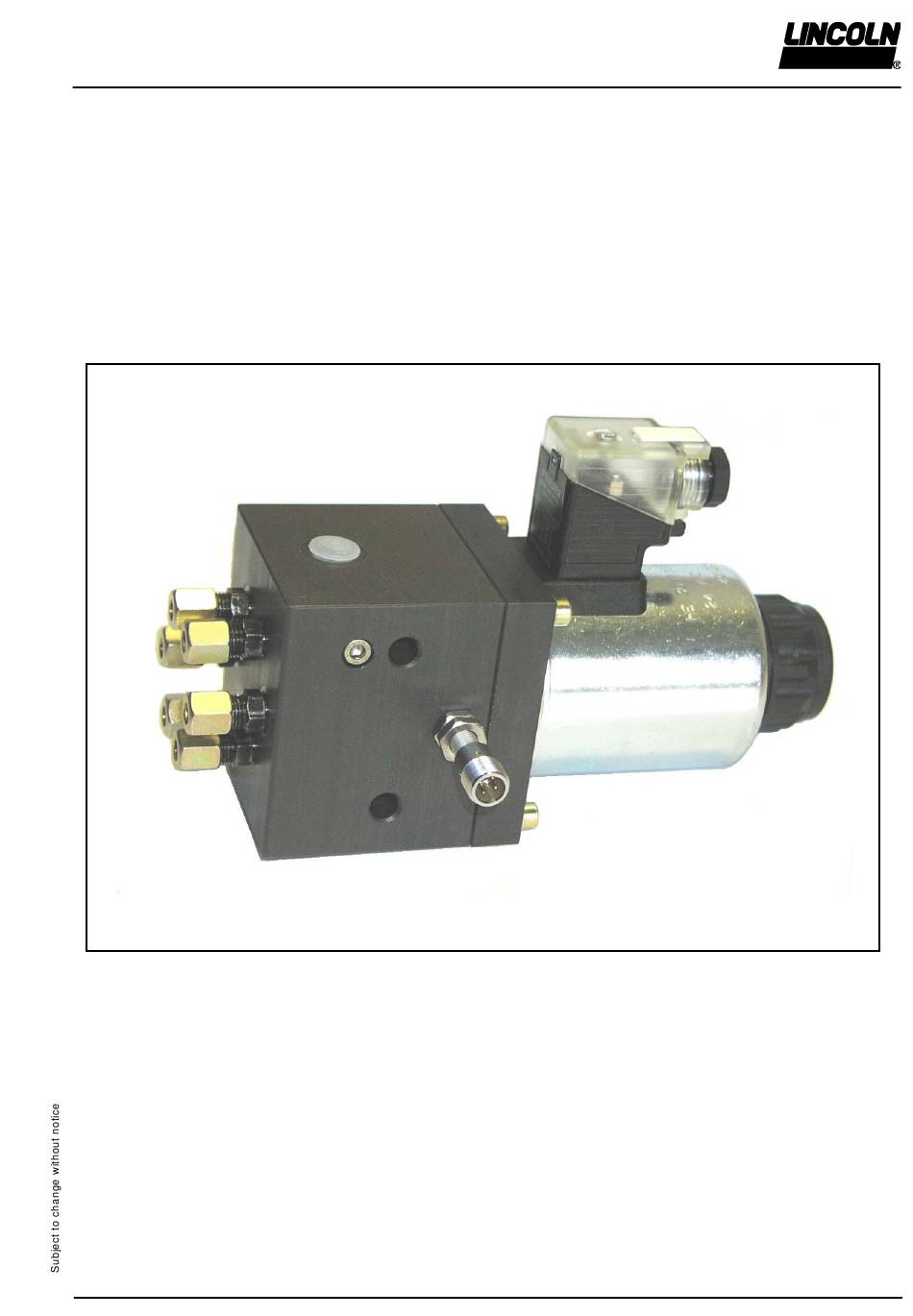

- Page 1 User Manual Magnetic Pump PMA-2 2.1A-88002-C06 Magnetic Pump PMA - 2 4495b04 Page 1 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 2: Table Of Contents
• If other spare parts are used, the manufacturer may be released from its liability for the resulting consequences. Page 2 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 3: Fields Of Application
6 - Proximity switch on 3 - Magnetic pump drive wheel 4 - Spray nozzles Page 3 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 4: Structure
1 - Plug (with rectifier for AC version) 6 - Piston 2 - Electric solenoid 7 - Check valve 3 - Tappet Page 4 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 5: Operation
* Let the pump run until all connected nozzles operate being dispensed and is therefore lubricated automatical- properly. Page 5 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 6: Troubleshooting
Vent the pump and the tube lines (see „Start-up“) • Any repairs which are beyond the knowledge of the user’s personnel must be carried out by Lincoln experts. For this purpose, return the defective pup to the repair department of the Walldorf works or call for a specialist who will carry out the repair on site. -
Page 7: Switch Times
25°C with oil OPTIMOL VISCOGEN KL 09. 4437a02 Fig. 7: Connecting diagram/ proximity switch (option) Page 7 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 8 Fig. 8 - Connecting diagram/ float magnetic switch Contact Protection Measures 4431a02 Fig. 9: Contact protection measures Page 8 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 9: Identification Code
30 mm³/ outlet and stroke Supply voltage 24 VDC, 230 VAC, 120 VAC with electric monitoring Page 9 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 10: Dimensions
Closure screw N can be removed on the rear side if fixed on an even surface. Page 10 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 11: Accessories
Fig. 12 - Reservoir 36 l, Part no. 651-28685-1 with electric low-level control (float magnetic switch) Page 11 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 12 Oil squirt nozzle, double, 90°, part no. 615-29301-1 4501b04 Fig. 15 Oil squirt nozzle, double 90° Page 12 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 13 Proximity switch 10-30 VDC M 8 x 1 234-13195-8 included in spare parts assy (see next page) Page 13 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 14: Arrangement Of Outlets
Fig. 18 Installation of the proximity switch N = proximity switch, part no. 234-13159-8 Tightening torque: 7 NM +10% SW 13 Page 14 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 15 Electrical equipment of machinery Part 1: General requirements Walldorf, May, 2004 , Dr. Ing. Z. Paluncic Page 15 of 15 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
