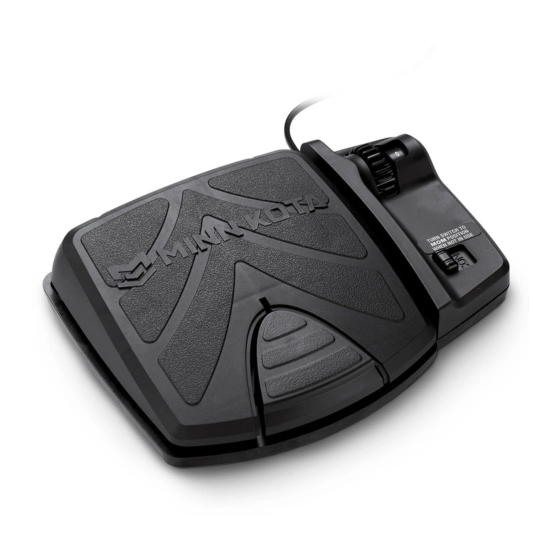

CORDED FOOT PEDAL
®
FOR POWERDRIVE™ & RIPTIDE
POWERDRIVE™
OWNER'S MANUAL
COMPATIBLE WITH POWERDRIVE, POWERDRIVE V2, RIPTIDE POWERDRIVE, AND RIPTIDE SP MOTORS
MANUFACTURED IN 2007 OR LATER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORDED FOOT PEDAL and is the answer not in the manual?

Questions and answers

Summary of Contents for MINN KOTA CORDED FOOT PEDAL

  • Page 1 CORDED FOOT PEDAL ® FOR POWERDRIVE™ & RIPTIDE POWERDRIVE™ OWNER'S MANUAL COMPATIBLE WITH POWERDRIVE, POWERDRIVE V2, RIPTIDE POWERDRIVE, AND RIPTIDE SP MOTORS MANUFACTURED IN 2007 OR LATER...
  • Page 2: Safety Considerations

    SAFETY CONSIDERATIONS WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Foot Pedal to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat.
  • Page 3: Installation

    InstallatIon INSTALLING THE POWERDRIVE & RIPTIDE POWERDRIVE FOOT PEDAL Your new PowerDrive Foot Pedal accessory comes with everything you’ll need to directly install it on your trolling motor. These instructions are intended to show how to install your new PowerDrive Foot Pedal on a PowerDrive trolling motor. Please review the parts list and mounting considerations for installation prior to getting started.
  • Page 4 INSTALLATION b. Locate the Foot Pedal Cord that exits the mount of the PowerDrive, next to the Power Cord. Foot Pedal Cord from PowerDrive Foot Pedal c. Unscrew the cap at the end of the Foot Pedal Mount Cord that exits the motor and the cord on the Foot Pedal.
  • Page 5: Using The Foot Pedal

    The foot pedal is used to operate the motor, and controls on the foot pedal are easy to operate by either foot or hand. The motor can also be controlled by an i-Pilot remote, or a compatible Minn Kota remote if equipped with an appropriate i-Pilot or CoPilot receiver.
  • Page 6 USING THE FOOT PEDAL Steering in Reverse NOTE: The motor will not auto correct to drive straight. The propeller always turns in the forward direction. You can reverse the direction of thrust by turning the motor 180°. WARNING You are responsible for the safe and prudent operation of your vessel. We have designed PowerDrive to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish.
  • Page 7: Environmental Compliance Statement

    Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.
  • Page 8: Fcc Compliance

    COMPLIANCE STATEMENTS FCC COMPLIANCE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. 2. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc.
  • Page 9: Service And Maintenance

    Authorized Service Centers Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.
  • Page 10: Parts Diagram & Parts List

    PARTS DIAGRAM & PARTS LIST POWERDRIVE & RIPTIDE POWERDRIVE FOOT PEDAL Foot Pedal Parts Diagram 10 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
  • Page 11 PARTS DIAGRAM & PARTS LIST Foot Pedal Parts List Assembly Part # Description Quantity BAG ASY-TERROVA/V2,RUB.BUMPERS 2994859 2994727 FOOT PEDAL ASSEMBLY, PD Item Part # Description Quantity 2377167 MANUAL-FT PEDAL, POWERDRIVE V3 2325110 PAD, FOOT PEDAL PD 2300275 COVER-SPEED SELECTOR,PD FP,BLK 2302100 SCREW-#6-20 X 1/2 THD CUTS 2302730...
  • Page 12: Recommended Accessories

    Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.
  • Page 13: Manuel Du Propriétaire

    PÉDALE CÂBLÉE ® POUR POWERDRIVE™ ET RIPTIDE POWERDRIVE™ MANUEL DU PROPRIÉTAIRE COMPATIBLE AVEC LES MOTEURS POWERDRIVE, POWERDRIVE V2, RIPTIDE POWERDRIVE ET RIPTIDE SP FABRIQUÉS EN 2007 OU APRÈS...
  • Page 14: Consignes De Sécurité

    CONSIGNES DE SÉCURITÉ AVERTISSEMENT Vous seul êtes responsable de la navigation sécuritaire et prudente sur votre bateau. Nous avons conçu la pédale pour qu’elle soit un outil précis et fiable qui vous permettra d’améliorer l’utilisation de votre bateau et d’accroître votre capacité de pêcher des poissons.
  • Page 15 INSTALLATION INSTALLATION DE LA PÉDALE POWERDRIVE ET RIPTIDE POWERDRIVE Votre nouvelle pédale PowerDrive est livrée avec tout le nécessaire pour l’installer directement sur votre propulseur électrique. Ces instructions visent à montrer comment installer votre nouvelle pédale PowerDrive sur un propulseur électrique PowerDrive. Avant de commencer, veuillez examiner la liste des pièces nécessaires à...
  • Page 16 INSTALLATION b. Localisez le cordon de la pédale qui sort du support sur le PowerDrive, à côté du cordon Cordon de la Pédale d’alimentation. Support PowerDrive c. Dévissez le bouchon à l’extrémité du cordon de la pédale qui sort du moteur et du cordon sur la pédale.
  • Page 17: Utilisation De La Pédale

    La pédale sert à opérer le moteur, et les contrôles sur la pédale sont faciles à faire fonctionner avec la main ou le pied. Le moteur peut aussi être contrôlé par une télécommande de système i-Pilot, ou une télécommande Minn Kota compatible si un récepteur i-Pilot ou CoPilot compatible approprié...
  • Page 18 UTILISATION DE LA PÉDALE garder votre pied sur la pédale pour contrôler la direction du bateau pendant le fonctionnement manuel. Vous pouvez également commander la direction du moteur avec la télécommande si celui-ci est équipé du receveur approprié. Marche Arrière REMARQUE: Le moteur n’appliquera pas L’hélice tourne toujours dans la direction avant.
  • Page 19: Directive Deee

    Les moteurs Minn Kota ne sont pas soumis à la réglementation concernant l’élimination VGE-VO (directive pour les dispositifs électriques), qui transpose la directive DEEE. Néanmoins, ne jamais jeter le moteur Minn Kota dans une poubelle, mais plutôt à l’endroit approprié où s’eff ectue la collecte, recommandé par le conseil municipal local.
  • Page 20 DÉCLARATIONS DE CONFORMITÉ CONFORMITÉ FCC Cet appareil est conforme à la section 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : 1. Ce dispositif ne doit pas causer d’interférences nuisibles. 2. Cet appareil doit accepter toute interférence qui peut être reçue, y compris les interférences susceptibles de perturber son fonctionnement.
  • Page 21: Service Et Entretien

    Centres de Service Agréés Minn Kota compte plus de 300 centres de service agréés aux États-Unis et au Canada pour acheter des pièces ou faire réparer vos produits. Veuillez consulter la page Centres de service agréés sur notre site Web pour trouver un centre de service dans votre région.
  • Page 22: Schéma Des Pièces Et Liste Des Pièces

    SCHÉMA DES PIÈCES ET LISTE DES PIÈCES PÉDALE POWERDRIVE ET RIPTIDE POWERDRIVE Schéma des Pièces de la Pédale 22 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
  • Page 23 SCHÉMA DES PIÈCES ET LISTE DES PIÈCES Liste des Pièces de la Pédale Ensemble Nº de Pièce Description Quantité BAG ASY-TERROVA/V2,RUB.BUMPERS 2994859 2994727 FOOT PEDAL ASSEMBLY, PD Nº d’Article Nº de Pièce Description Quantité 2377167 MANUAL-FT PEDAL, POWERDRIVE V3 2325110 PAD, FOOT PEDAL PD 2300275 COVER-SPEED SELECTOR,PD FP,BLK...
  • Page 24: Accessoires Recommandés

    Plusieurs chargeurs peuvent en fait endommager les batteries à la longue, pouvant entraîner une autonomie réduite et une durée de vie plus courte. Les chargeurs Minn Kota à commande numérique assurent une charge rapide pour une protection et une durée de vie prolongée.
