INSTALLATION
INSTALLATION / INSTALLATION
RCZ66LT
RCZ66TA
RCZ66IR
PIÈCES / PARTS
Liste complète des pièces pour l'assemblage de votre valve
thermostatique.
Complete parts list for installing your thermostatic valve.
LISTE DES PIÈCES / PARTS LIST
01 Robinet de douche / Shower mixer
02 Pièces de branchement / Rough parts
03 Douchette / Handshower
04 Crochet coulissant / Slider
05 Barre verticale avec ou sans mists / Vertical bar with or without mists
06 Tuyau flexible / Flexible hose
07 Barre horizontale avec ou sans mists /
Horizontal bar with or without mists
08 Tête pluie / Showerhead (RCZ66IR)
03
RCZ66IR
08
04
06
02
01
Doc. # DR069-1 / 29-06-2017

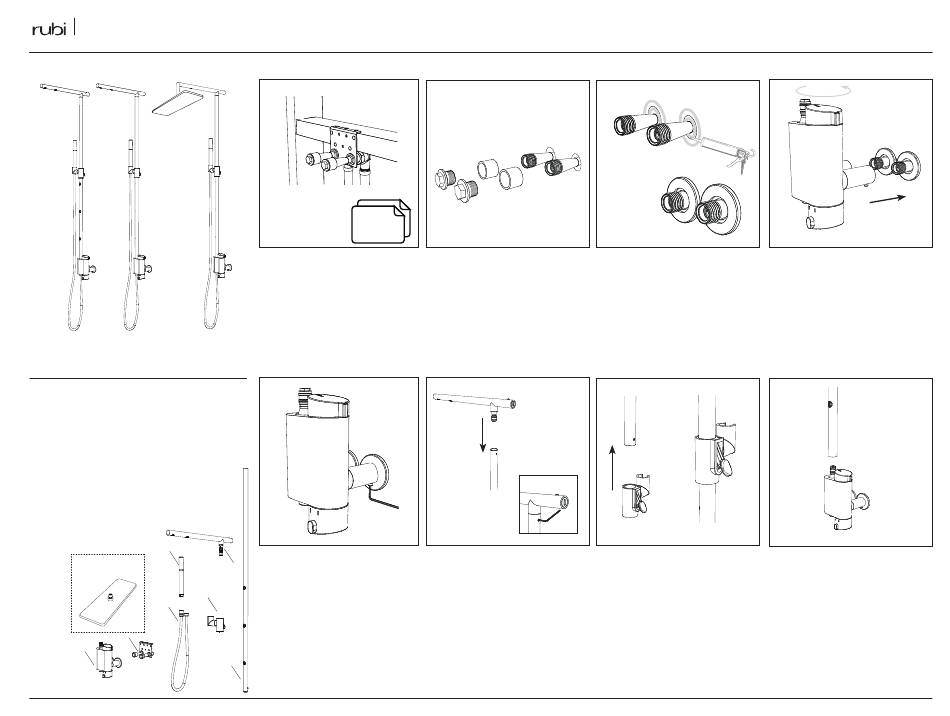

ÉTAPES / STEPS
DR068
01
FR-Installez les raccords selon les instruc-
tions fournies dans la boîte de ceux-ci
EN-Install the fittings as per instructions
provided with the rough box.
05
FR-Serrez les vis allen sous les 2 raccords
07
en prennant soin de bien aligner les brides
murales puis refermez .
EN-Aligning the wall flanges and tighten the
allen screws under both fittings.
05
02
03
FR-Enlevez les bouchons et les protecteurs de
FR-Appliquez du silicone pour étancher le trou
joints toriques.
de passage du raccord et positionnez les brides
murales.
EN-Remove the caps and the o-ring protective
sleeves.
EN-Apply silicone to seal the hole of the fit-
tings and position the wall flanges.
06
07
FR-Assemblez les barres verticales et
FR-Glissez le crochet coulissant sur la barre
horizontales.
verticale.
EN-Assemble horizontal and vertical bars.
EN-Slide the sliding hook onto the vertical bar.

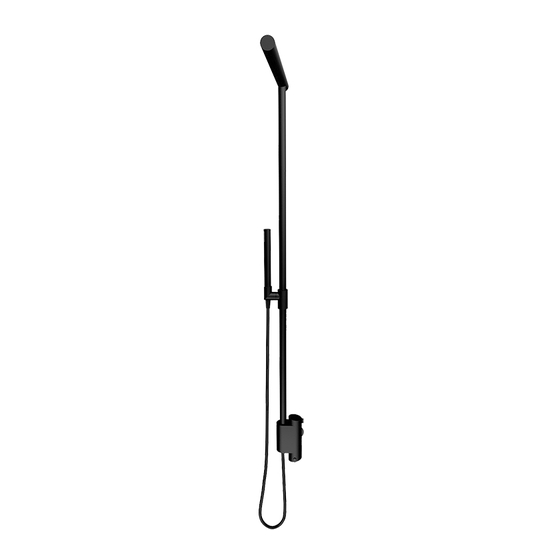

ENSEMBLE DE DOUCHE COZI / COZI SHOWER PIPE
04
FR-Assurez-vous que la poignée du dessus soit
ouverte. Insérez la valve sur les raccords déli-
catement en glissant bien sur le joints toriques.
EN-Make sure the top handle is in open posi-
tion. Insert the valve on the fittings gently by
sliding on the O-rings.
08
FR-Positionnez la barre verticale sur la barre
verticale sur la valve sans la serrer.
EN-Position the vertical bar on the valve
without tightening it.
www.rubi.ca - 1.888.988.RUBI (7824)
- RCZ66
OUVRIR / OPEN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rubi RCZ66 Series
Summary of Contents for Rubi RCZ66 Series
- Page 1 EN-Assemble horizontal and vertical bars. EN-Slide the sliding hook onto the vertical bar. EN-Position the vertical bar on the valve EN-Aligning the wall flanges and tighten the without tightening it. allen screws under both fittings. Doc. # DR069-1 / 29-06-2017 www.rubi.ca - 1.888.988.RUBI (7824)
- Page 2 Assemble the flexible handshower hose under bracket. horizontal bar and below the valve. the valve. Assemble the handshower at the other end of the hose and install the hand shower in the hook. Doc. # DR069-1 / 29-06-2017 www.rubi.ca - 1.888.988.RUBI (7824)
- Page 3 EN-Unscrew the button retaining screw. EN-Reassemble the handle to the valve EN-If you wish to replace the push-button EN-Disassemble the button and replace it with start by unscrew the temperature handle. the second one. Doc. # DR069-1 / 29-06-2017 www.rubi.ca - 1.888.988.RUBI (7824)
- Page 4 The warranty will be void in case of use of unsuitable cleaning products (especially those containing abrasive cleansers, waxes, alcohols, ammoniated, bleach, acids, solvents or other harsh chemicals), whether they are used by the purchaser or a third party for the buyer/owner. Doc. # DR069-1 / 29-06-2017 www.rubi.ca - 1.888.988.RUBI (7824)
- Page 5 Connect the water inlets Install the bracket on the first horizontal Remove the caps and bleed the inlets. Screw support. the caps back in place. Doc. # DR068-0 / 19-12-2017 www.rubi.ca - 1.888.988.RUBI (7824)
- Page 6 We suggest that the valve be fixed at a distance of 30 "to 35" from the floor level. Doc. # DR068-0 / 19-12-2017 www.rubi.ca - 1.888.988.RUBI (7824)
