INSTRUCTIONS FOR MODELS
CPT-16000
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPT-16000-02
3

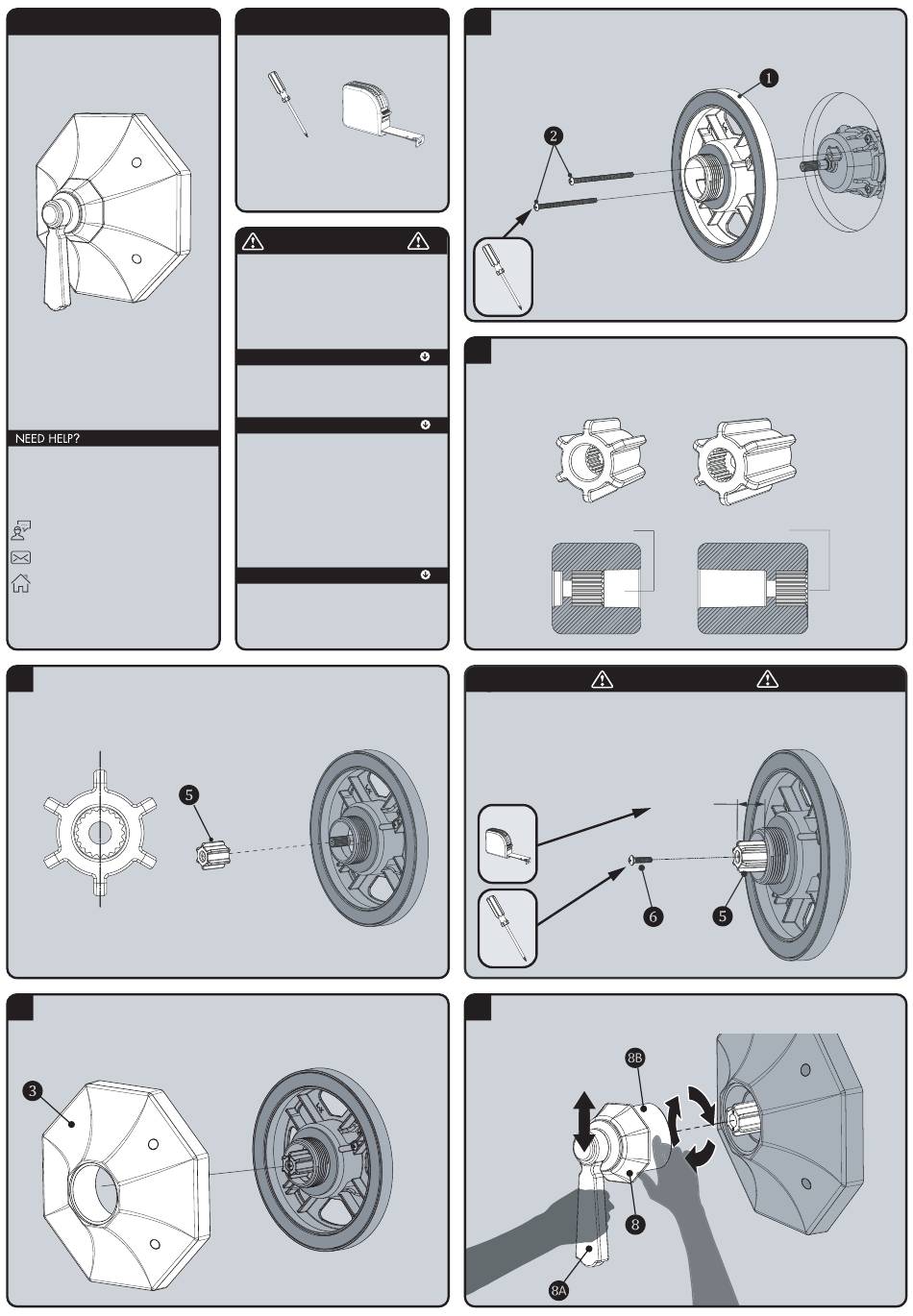

Confirm that the valve is in the "OFF" position. Place appropriate Connector (5) onto spindle
of valve making sure to orient the Connector so that one set of splines are perfectly vertical
as shown below.
5
Place Escutcheon (3) onto Mounting Base. Take care to align the Escutcheon as shown below.

TOOLS AND SUPPLIES

Phillips
Measuring
Screwdriver
Tape

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

WARRANTY

Additional warranty information can be found at:
www.speakman.com
1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure
with supplied screws (2).
2
There are two connectors included to allow for both Shallow Mount (Valve Centerline is 2.5-3.0"
from finished wall surface) and Deep Mount (Valve Centerline is 3.0"-3.5" from finished wall
surface) applications. Please select Connector appropriate for your installation.
For Shallow Mount Application
4
When installed correctly, the Connector (5), should extend beyond the Mounting Base
in-between
5/16" -1". Secure with screw (6).
6
Align Handle Assembly (8) with Connector and Escutcheon. Keep Handle (8A) in a stationary
vertical position as you thread Handle Hub (8B) onto the Mounting Base. Tighten until snug and
the octagonal shapes are aligned.
For Deep Mount Application
IMPORTANT
5/16"-1"
