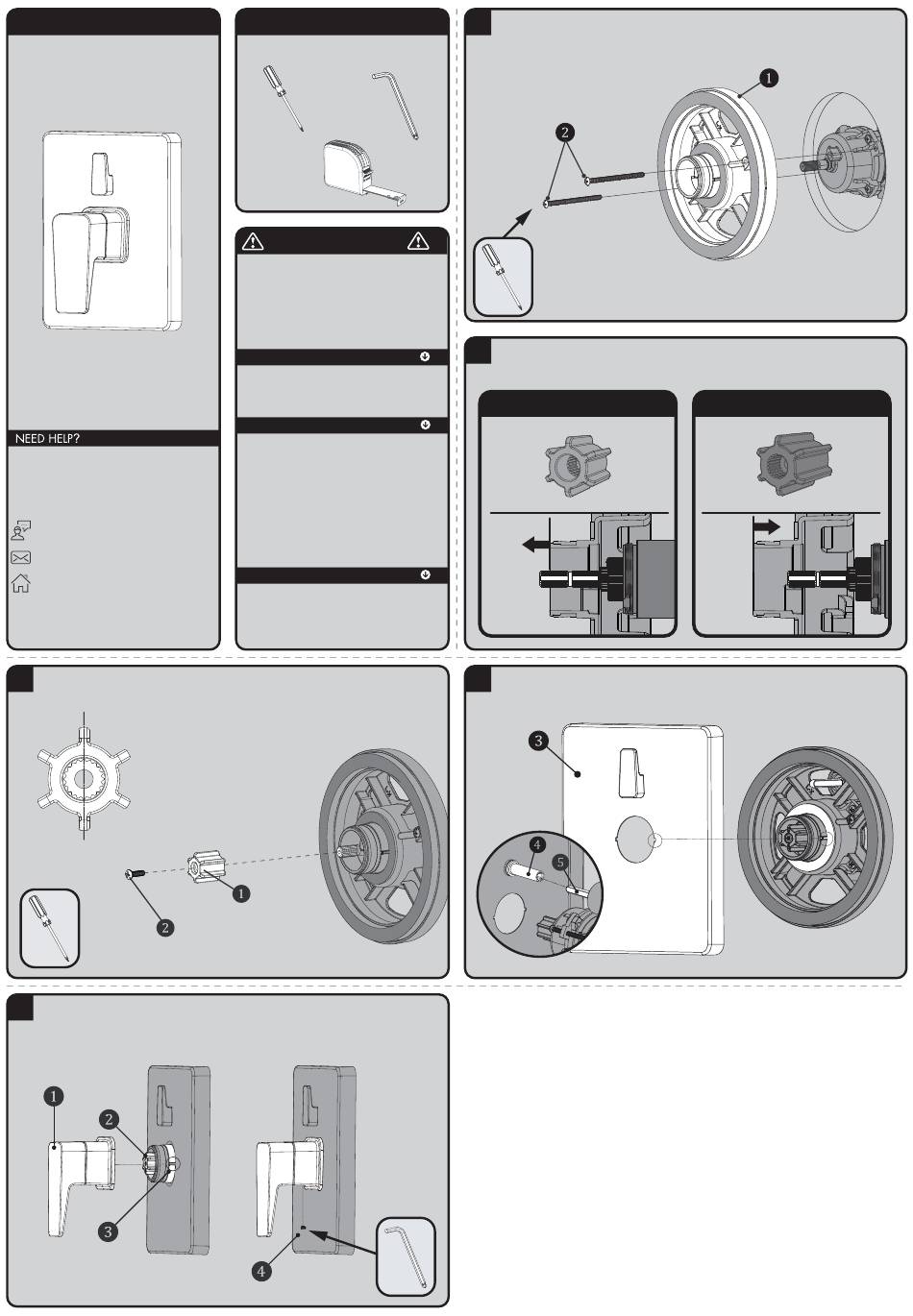

Speakman CPT-24400 Instructions

INSTRUCTIONS FOR MODELS
CPT-24400
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPT-24400-02
3
Confirm that Valve is in the "Off" position. Place appropriate Connector (1) on to the Spindle of
the Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical
position. Secure Connector with 8-32 screw provided (2).
Splines in Vertical Position
5
Orient the Handle Assembly (1) as shown below. Place Handle Assembly (1) onto the Mounting
Base while guiding the splines of the Adapter (2) into the Handle Assembly (1). Align the
Mounting Base Tabs (3) into the corresponding recesses of the Handle Assembly (1). Once all
items are aligned, press Handle Assembly (1) inward toward Wall Plate. Secure Handle
Assembly (1) by tightening Set Screw (4) with supplied Allen Wrench.

TOOLS AND SUPPLIES

Phillips Hex Key Wrench
Screwdriver (Included)
Measuring
Tape

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

WARRANTY

Warranty information can be found at:
www.speakman.com
1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure
with supplied screws (2).
2
Verify the position of the Spindle within the Mounting Plate, as shown below. If the end of the
Spindle extends beyond the Mounting Plate, then use the Shallow Mount Adapter. If the end of the
Spindle is flush to, or is within the Mounting Plate, then use the Deep Mount Adapter.

FOR SHALLOW MOUNT APPLICATION

4
Place Wall Plate (3) onto Mounting Base. Align the flat tabs on the Mounting Base with the cut
outs on the Wall Plate as shown for perfect fit. Verify the Diverter Valve Stem is in the OFF
(vertical) position. Align the Diverter Drive Tube (4) on the Wall Plate to the Stem (5) of the
Diverter Valve.
* VIEW FROM BACK OF WALL PLATE

FOR DEEP MOUNT APPLICATION
