Speakman CPT-1000-P Installation Instructions

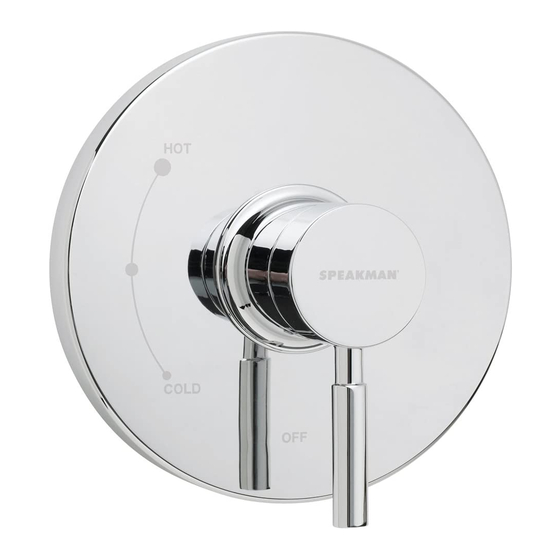

INSTRUCTIONS FOR MODELS

CPT-1000-P
CPT-1001-KN
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPT-1000-P-02
3

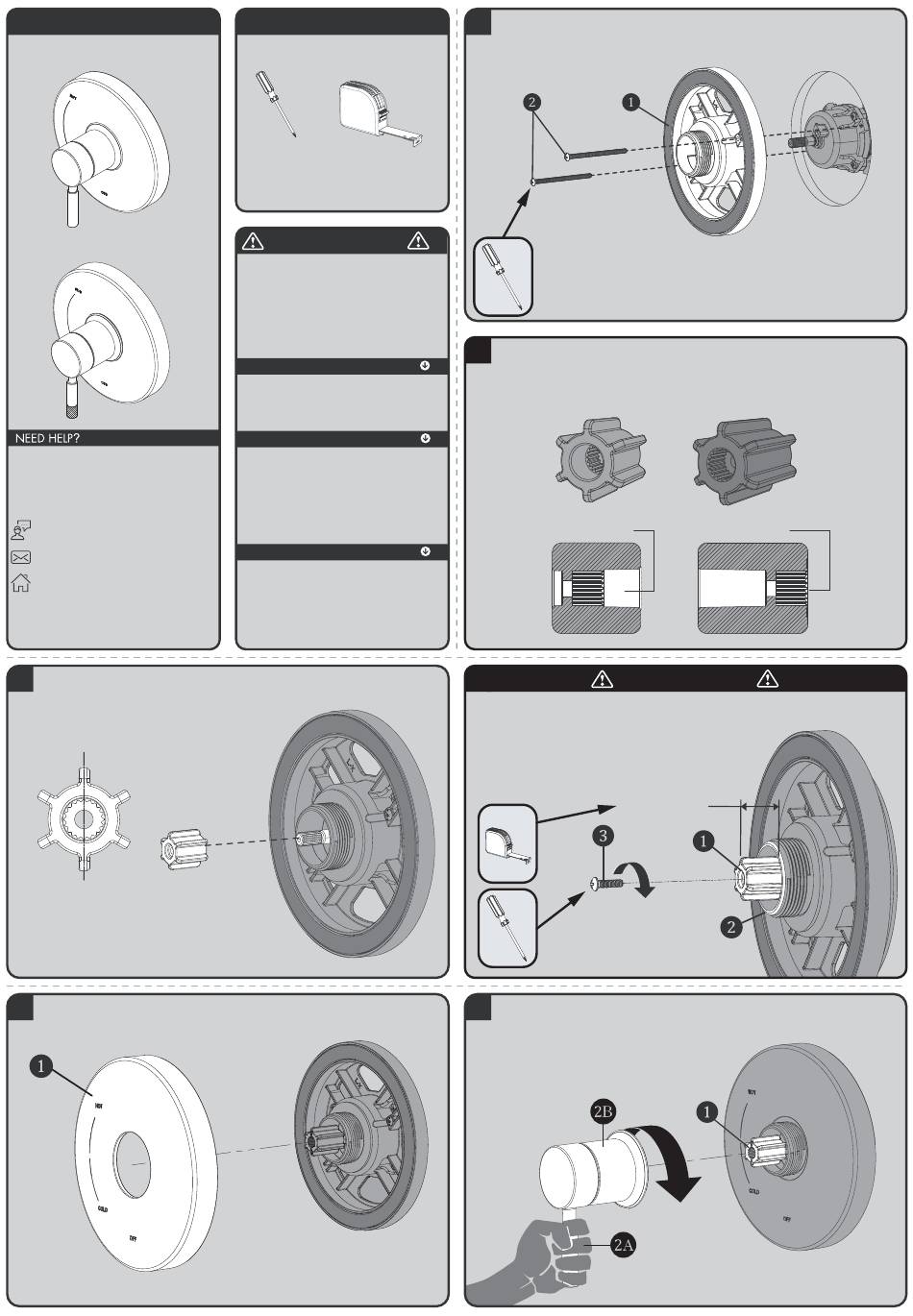

Confirm that Valve is in the "Off" position. Place appropriate Connector on to the Spindle of the
Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical
position.
Splines in Vertical Position
5
Place Escutcheon (1) on Mounting Base. Take care to orient the Escutcheon as shown below.

TOOLS AND SUPPLIES

Phillips Measuring
Screwdriver Tape

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing Valve Trim.

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

WARRANTY

Additional warranty information can be found at:
www.speakman.com
1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure with
supplied screws (2).
2
There are two connectors included to allow for both Shallow Mount (Valve Centerline is 2.5-3.0"
from finished wall surface) and Deep Mount (Valve Centerline is 3.0"-3.5" from finished wall
surface) applications. Please select Connector appropriate for your installation.
For Shallow Mount Application
4
When installed correctly, the Connector (1) should protrude from the Mounting Base (2)
in-between 5/16" and 1". Secure Connector with 8-32 screw provided (3).
does not fall within this range, try swapping Connectors.
5/16" to 1"
6
Align Handle Assembly with Connector (1) and Escutcheon as shown below. Keep Handle (2A) in a
stationary vertical position and place over Connector (1) and engage the Splines of the Connector
with the Handle Assembly. Keep Handle in the vertical position as you thread Handle Hub (2B) on
to Mounting Base. Tighten until snug.
For Deep Mount Application
IMPORTANT
If your installation
