Speakman CPT-1000-UNI Instructions

INSTRUCTIONS FOR MODELS
CPT-1000-UNI
CPT-1300-UNI
Kohler Installation
NEED HELP
?
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakmancompany.com
www.speakmancompany.com
92-CPT-1000-UNI-K-R1
TOOLS AND SUPPLIES
Drill Drill Bit Phillips
#12 Screwdriver
Measuring
Tape
IMPORTANT
• Circular Trim Package shown for reference. While
the appearance of your trim may be different, the
installation steps are the same.
• This Trim Package is intended to mount to the
following Kohler valves. Please verify the model of
your valve prior to installation.
K-304-CS-NA
K-304-CX-NA
K-304-PS-NA
K-304-PX-NA
K-304-US-NA
K-304-UX-NA
K-304-K-NA
K-304-KS-NA
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
always wear proper eye protection.
MAINTENANCE
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals as
these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakmancompany.com
ø

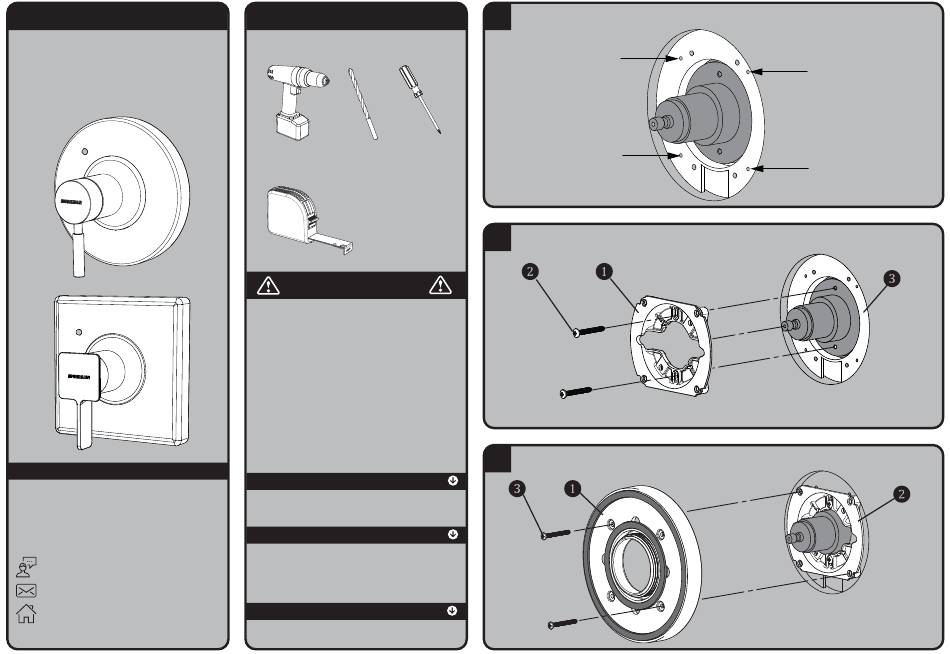

1
Using a #12 ( .189") Drill Bit, enlarge the 4 holes shown below in the existing Kohler Mounting
Flange.
Clean front surface of wall. Install Valve Mounting Plate (1) to existing Kohler Valve, using the
2
10-24 x 1-½" screws (2) provided. Take care to not over tighten mounting screws.
NOTE: Valve Mounting Plate (1) should sit flush upon Kohler Mounting Flange (3) when secured.
Secure the Wall Mounting Plate (1) to the Valve Mounting Plate (2) using the 8-32 X 1-½" Screws
3
(3) provided.
NOTE: The back surface of the Valve Mounting Plate
Assembly (1) should sit flush against the wall when
installed correctly.
