INSTRUCTIONS FOR MODELS

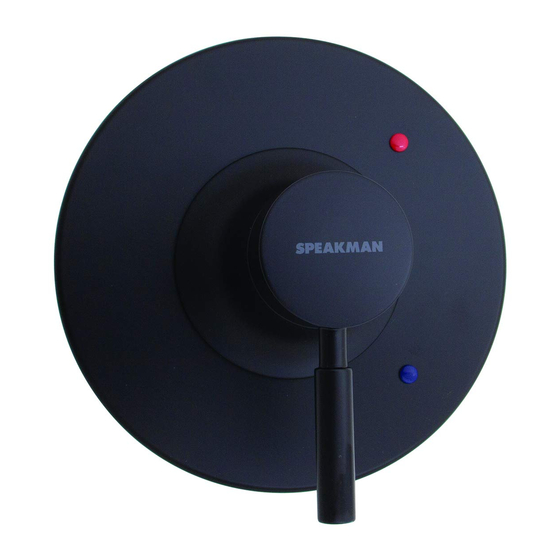

CPT-1000-UNI
CPT-1300-UNI
Symmons Installation
NEED HELP
?
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPT-1000-UNI-S-R2
TOOLS AND SUPPLIES
Phillips
Flat Tip
Measuring
Screwdriver
Screwdriver
Tape
IMPORTANT
• Verify that existing Valve is installed
correctly per manufacturers instructions. If
valve is not installed correctly, installation of
the Universal Valve Trim may not be possible.
• Circular Trim Package shown for reference. While
the appearance of your trim may be different, the
installation steps are the same.
• This Trim Package is intended to only mount to the
following Symmons valves. Please verify the model of
your valve prior to installation.
®
®
SYMMONS
Temptrol
4000-BODY
4000-X-BODY
46-2-X-BODY
*NOT FOR USE WITH DIVERTER/VOLUME CONTROL MODELS
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
always wear proper eye protection.
MAINTENANCE
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals as
these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
1

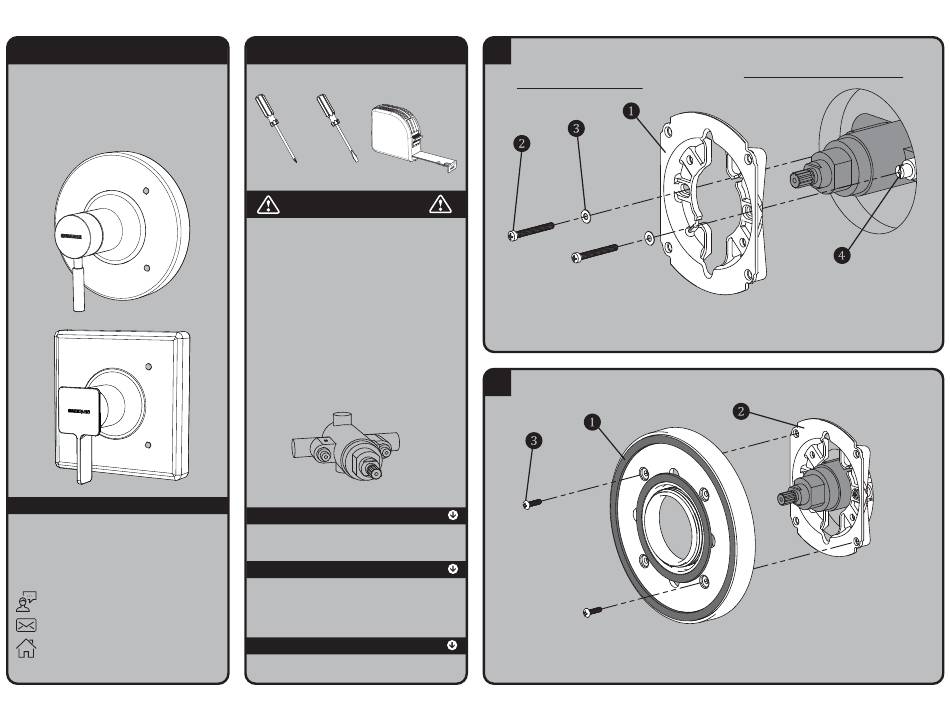

Clean front surface of wall. Verify that Symmons Valve Stops (4) are in the "Open" position by
turning counter-clockwise. Install Valve Mounting Plate (1) to existing Symmons Valve, using the
8-32 x 1-3/8" screws (2), and Washers (3) provided. Take care to not over tighten mounting
screws or damage may occur.
NOTE: The back surface of the Valve Mounting Plate Assembly (1) should sit flush against the wall when
installed correctly.
2
Secure the Wall Mounting Plate (1) to the Valve Mounting Plate (2) using the 8-32 X 5/8" Screws
(3) provided.
NOTE: The back surface of the Valve Mounting Plate Assembly (1) should sit flush against the wall when
installed correctly.
