Speakman CPT-1000-TP Instructions

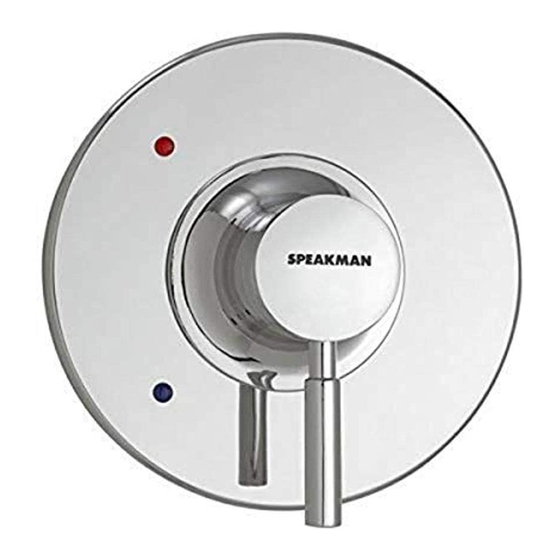

INSTRUCTIONS FOR MODELS
CPT-1000-TP
CPT-1300-TP
NEED HELP
?
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakmancompany.com
www.speakmancompany.com
92-CPT-1000-TP-R1
TOOLS AND SUPPLIES
Phillips Measuring
Screwdriver Tape
IMPORTANT
• Circular Trim Package shown for reference. While
the appearance of your trim may be different, the
installation steps are the same.
• This Trim Package is intended to mount to the
following Speakman valve. Please verify the model
of your valve prior to installation.
SPEAKMAN
®
SentinelPro
CPV-5000 Thermostatic / Balance Pressure Valve
*NOT FOR USE WITH DIVERTER/VOLUME CONTROL MODELS
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
always wear proper eye protection.
MAINTENANCE
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals as
these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakmancompany.com

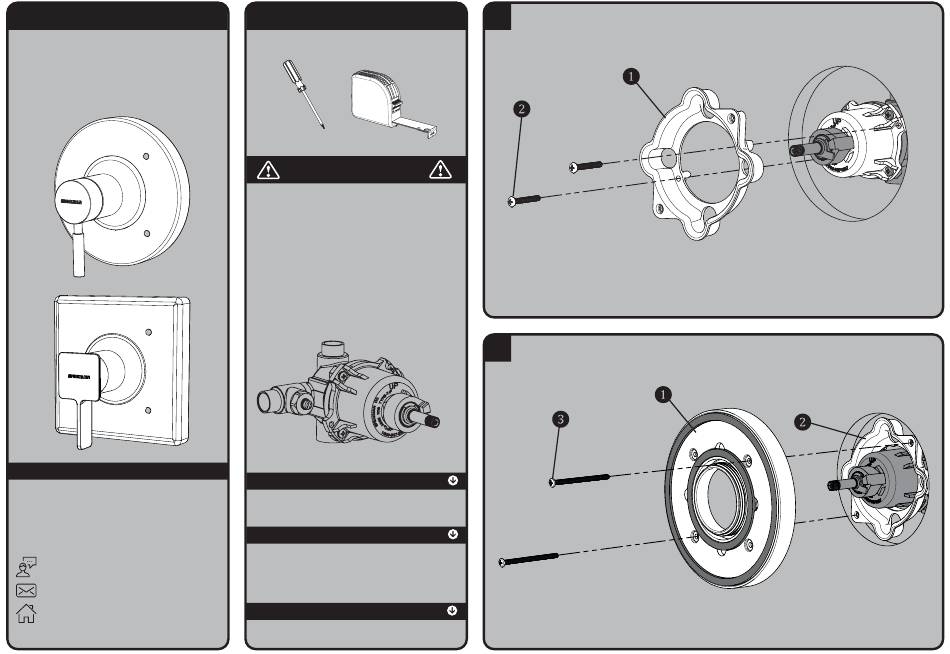

1
Clean front surface of wall. Install Valve Mounting Plate (1) to Speakman Valve, using the 8-32 x
1-1/8" screws (2) provided. Take care to not over tighten mounting screws.
NOTE: The Valve Mounting Plate Assembly (1) should sit flush against the Speakman Valve when
®
installed correctly.
2
Secure the Wall Mounting Plate (1) to the Valve Mounting Plate (2) using the 8-32 X 2½" Screws
(3) provided.
NOTE: The back surface of the Valve Mounting Plate Assembly (1) should sit flush against the wall when
installed correctly.
