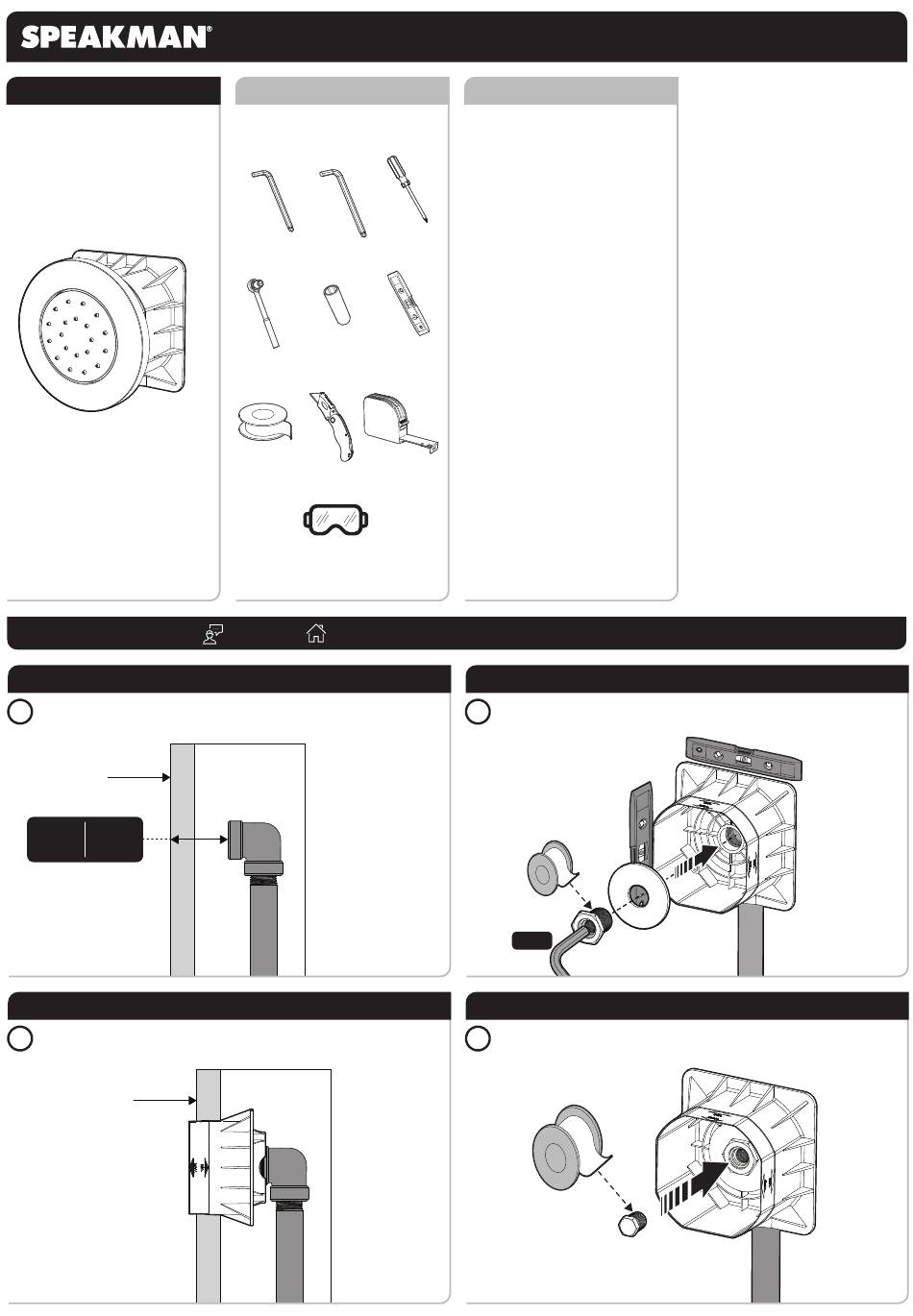

INSTALLATION INSTRUCTIONS
CPT-3310
Body Spray Panel
92-CPT-3310-01
NEED HELP?
For additional assistance or service please contact:
ROUGH IN PLUMBING
Rough in plumbing according to the diagram shown below. The distance from the front of the
1
Supply Elbow (or Female Nipple) to the front surface of the finished wall MUST fall between
1-13/16" [46mm] and 2-5/8" [66mm].
FINISHED WALL
SURFACE
1-13/16" 2-5/8"
[46mm] [66mm]
MINIMUM MAXIMUM
VERIFY ROUGH IN DEPTH
Verify rough in depth with the Housing attached to rough plumbing. The finished wall surface
3
MUST fall between the MIN and MAX markings on the Housing. If it does not, make necessary
adjustments to rough plumbing.
FINISHED WALL
SURFACE
TOOLS & SUPPLIES NEEDED
6mm Hex 8mm Hex Phillips
Key Wrench Key Wrench Screwdriver
(included) (included)
Socket 5/8" (15mm) Level
Wrench Deep Well Socket
Thread Seal Utility Measuring
Tape Knife Tape
Eye Protection
www.speakman.com
800-537-2107
IMPORTANT
SAFETY TIPS:
Be sure to read and understand all instructions
before beginning installation.
Inspect all connections after installation.
Cover the drain to avoid loss of parts.
Be sure to wear proper eye protection.
MAINTENANCE:
Your new product is designed for years of
trouble-free performance. Keep it looking new
by cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
SECURE HOUSING TO PLUMBING
Apply Thread Seal Tape to the male threads of the Pipe Adapter. Place the Washer over the Pipe
2
Adapter and secure Housing to the rough plumbing. Ensure the Housing is level/plumb and tighten
into position using the included 8mm Hex Key Wrench on the internal hex within the Pipe Adapter.
8mm
INSTALL TEST PLUG
Apply Thread Seal Tape to the threads of the Pipe Plug. Thread the Pipe Plug into the Pipe
4
Adapter and secure into position with a Socket Wrench and 5/8" (15mm) Socket.
