Confirm that the valve is in the "OFF" position. Place appropriate Connector (5) onto spindle
of valve making sure to orient the Connector so that one set of splines are perfectly vertical
as shown below.
5
Place Wall Plate (3) onto Mounting Base. Align the flat tabs on the Mounting Base with the cut
outs on the Wall Plate as shown for perfect fit.
TOOLS AND SUPPLIES
Phillips Hex Key Wrench
Screwdriver (Included)
Measuring
Tape
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
1

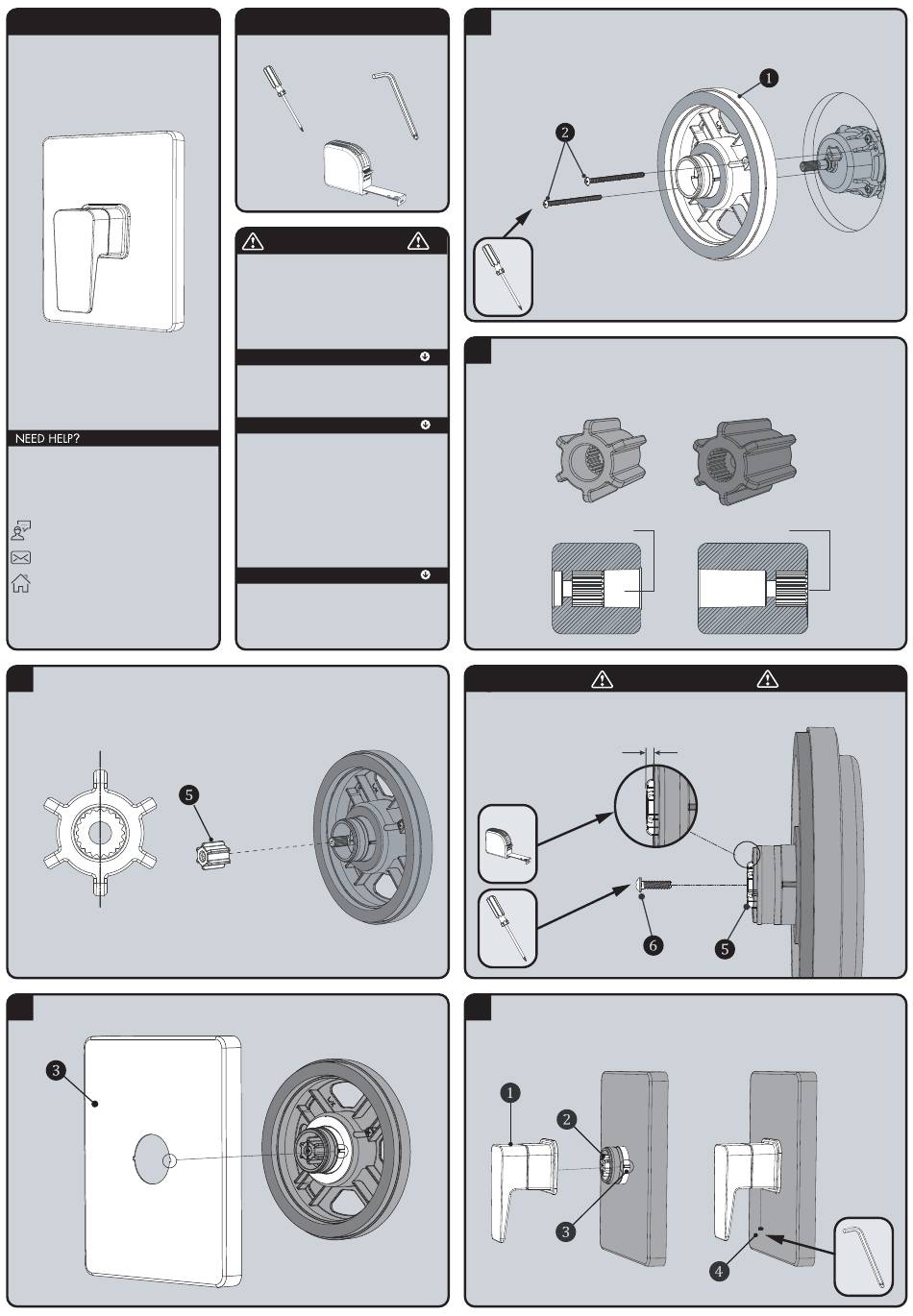

Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure
with supplied screws (2).
2
There are two connectors included to allow for both Shallow Mount (Valve Centerline is 2.5-3.0"
from finished wall surface) and Deep Mount (Valve Centerline is 3.0"-3.5" from finished wall
surface) applications. Please select Connector appropriate for your installation.
For Shallow Mount Application
4
When installed correctly, the Connector (5), should extend beyond the Mounting Base
in-between 1/8" -1/2". Secure with screw (6). If your installation does not fall within this range,
try swapping Connectors.
1/8"-1/2"
6
Orient the Handle Assembly (1) as shown below. Place Handle Assembly (1) onto the Mounting
Base while guiding the splines of the Adapter (2) into the Handle Assembly (1). Align the
Mounting Base Tabs (3) into the corresponding recesses of the Handle Assembly (1). Once all
items are aligned, press Handle Assembly (1) inward toward Wall Plate. Secure Handle
Assembly (1) by tightening Set Screw (4) with supplied Allen Wrench.
For Deep Mount Application
IMPORTANT
