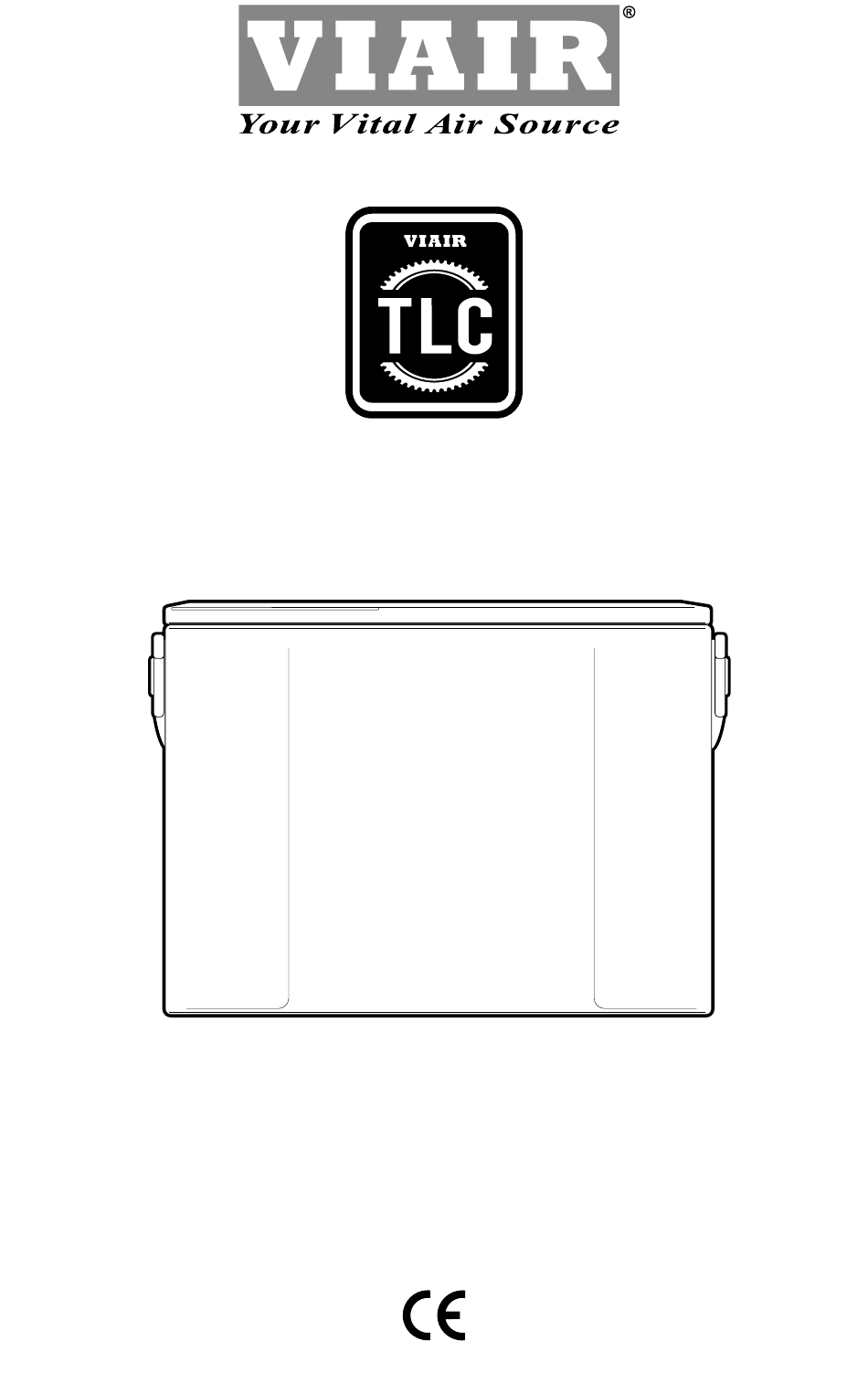

00071 – TLC LITE COMPRESSOR KIT
IMPORTANT:
It is essential that you and any other operator of this
product read and understand the contents of this
manual before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 00071 and is the answer not in the manual?

Questions and answers

Related Manuals for VIAIR 00071

Summary of Contents for VIAIR 00071

  • Page 1 00071 – TLC LITE COMPRESSOR KIT IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE USER MANUAL...
  • Page 2 TLC LITE COMPRESSOR KIT IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock: - Do not disassemble or attempt to repair or modify unit while it is still connected to the vehicle. - Do not use this product in an area where it can fall or be pulled into water or other liquids. - Do not reach for this product if it has fallen into liquid.
  • Page 3 TLC LITE COMPRESSOR KIT OPERATING INSTRUCTIONS: Your TLC LITE is powered via the Aux-port of your vehicle. To avoid draining your battery and assure the compressor is getting the proper amperage, make sure your vehicle’s engine is running during operation, especially if using for a prolonged period of time. USING THE COMPRESSOR: The TLC LITE requires a power port rated for 15-Amps.
  • Page 4 For frequent use in dusty environment, we recommend that you replace air filter element at least once a month. c. Regularly clean dust and dirt from compressor cooling fins and/or motor housing. d. Your air compressor is equipped with a permanently lubricated, maintenance-free motor. Never try to lubricate the compressor. e. All repairs should be performed by Manufacturer or Manufacturer’s Authorized Service Agencies only. f. For complete information regarding VIAIR Warranty, please visit: www.viaircorp.com/warranty SPECIFICATIONS: 00071 – TLC LITE COMPRESSOR KIT: (CE Certified) Part Number: 00071 / TLC LITE Voltage: 12-Volts Max.
  • Page 5 TLC LITE COMPRESSOR KIT PERFORMANCE DATA 1.30 43.5 1.00 28.0 0.95 25.5 0.90 22.7 0.85 20.7 0.77 18.3 0.72 16.3 0.65 13.7 0.60 11.7 0.54 10.0 0.48 USER MANUAL...
  • Page 6 TLC LITE COMPRESSOR KIT ABOUT COMPRESSOR DUTY CYCLE: Duty cycle refers to the amount of time a compressor can be operated in a given time period at 100 PSI, and a standard ambient temperature of 72° F. It is commonly expressed in percentage format: Compressor on time ÷ (on time + off time) = Duty Cycle %. ONE-HOUR DUTY CYCLE MINUTES ON / MINUTES OFF (100 PSI @ 72°F) 5 Min. On / 55 Min. Off 10% 6 Min. On / 54 Min. Off 15% 9 Min. On / 51 Min. Off 20% 12 Min. On / 48 Min. Off 25% 15 Min. On / 45 Min. Off 30% 18 Min. On / 42 Min. Off 33% 20 Min. On / 40 Min. Off 50% 30 Min. On / 30 Min. Off 100% 1 Hour Run Time NOTE: All compressors, regardless of rated duty cycle, require sufficient rest time in between cycles to allow for partial or complete heat dissipation.
  • Page 7 TLC LITE COMPRESSOR KIT THIS PAGE INTENTIONALLY LEFT BLANK USER MANUAL...
  • Page 8 Corporation and no ownership rights are hereby transferred. No part of the Manual shall be used, ® reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR ® VIAIR does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of the ®...
