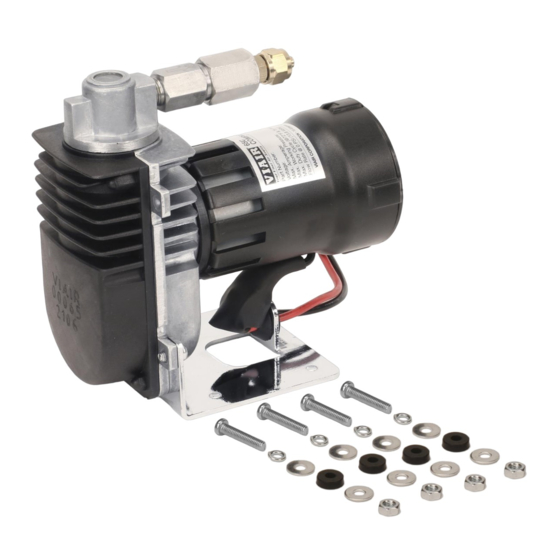

- Page 1 65C COMPRESSOR KIT 12V P/N 00065 IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE USER MANUAL...
- Page 2 65C Air Compressor Kit IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in an area where it can fall or be pulled into water or other liquid. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-Volt DC systems only. - This product should never be left unattended during use. WARNING - To prevent injury: - Never allow children to operate this compressor. Close supervision is necessary when this...
- Page 3 65C Air Compressor Kit MOUNTING AND WIRING 1. Disconnect Temporarily ground position cable the from vehicle's battery. 2. Temporarily position the air compressor in the location where it will be mounted. 3. Route ground wire to the negative post of the battery or to an appropriate grounding point and cut ground wire to length as needed. 4. Mount air compressor with the four sets of 0.15" (4mm) bolt, nuts, washers, and locking washers and rubber washers provided. (See Fig. 1 for Mounting Instructions) Use of thread sealant recommended. 5. Connect compressor's positive lead wire to one of the leads of your pressure switch.
- Page 4 65C Air Compressor Kit OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Sections of this manual for details. 2. A lways observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specifications Sections of this manual for details. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor. 3. To prevent discharge of your vehicle's battery, we strongly recommend that you keep the vehicle's engine running while using the air compressor. ONLY OPERATE THE AIR COMPRESSOR IN WELL-VENTILATED AREAS. Compressor performance is also enhanced when operating compressor with vehicle's engine running. MAINTENANCE & REPAIRS 1. Periodically check all electrical and fitting connections. Clean and tighten as needed. 2. Periodically check all mounting screws. Tighten as needed. 3. R egularly clean dust and dirt from compressor cooling fins and motor housing. 4. Y our air compressor is equipped with permanently lubricated, maintenance-free motor. Never try to lubricate compressor. 5. A ll repairs should be performed by Manufacturer or Manufacturer's Authorized Service Agencies only.
- Page 5 65C Air Compressor Kit TROUBLESHOOTING GUIDE: Compressor will not run 1. No power, or power switch 1. Make sure compressor in OFF position switch is ON 2. Blown fuse 2. Disconnect compressor 3. Faulty pressure switch from power source, replace (if hooked up to a fuse. (Refer to Specifications pressure switch). section for correct fuse-Amperage) 3. Replace pressure switch...
- Page 6 65C Air Compressor Kit COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor performance, refer to information below: VIAIR® COMPRESSOR REFERENCE CHART COMPRESSOR SERIES MAX. WORKING DUTY CYCLE PRESSURE (100 PSI @ 72°F) 065 SERIES 80 PSI 15% 090 SERIES 120 PSI 9% 092 SERIES 120 PSI 9% 095 SERIES 120 PSI 9% 097 SERIES 130 PSI 10% 098 SERIES 130 PSI 10% 100 SERIES 130 PSI 15%...
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 8 65C Air Compressor Kit AMERICAN WIRE GAUGE GUIDE 12-VOLT: Length of wire from battery to compressor (in feet) Amp Draw SINGLE “C” MODEL COMPRESSOR WIRING DIAGRAM Wiring Diagram: (Fuse Not Included) 12V 40A Relay Fuse Battery To Keyed Power Source Pressure Switch LIMITED WARRANTY: 15 Edelman VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in Irvine, CA 92618 ®...
