Summary of Contents for VIAIR 00190
Page 1

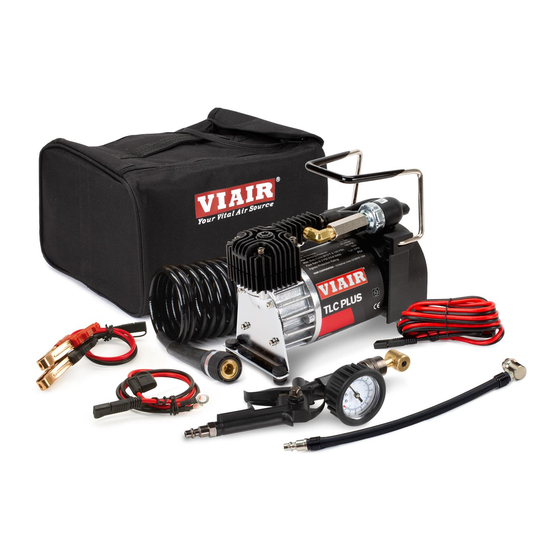

00190 – TLC PLUS COMPRESSOR KIT IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE USER MANUAL...
TLC PLUS COMPRESSOR KIT IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock: - Do not disassemble or attempt to repair or modify unit while it is still connected to the vehicle. - Do not use this product in an area where it can fall or be pulled into water or other liquids. - Do not reach for this product if it has fallen into liquid.
TLC PLUS COMPRESSOR KIT OPERATING INSTRUCTIONS Your TLC PLUS is powered via the Battery Clips or Terminal Rings, and can be used as a portable or hard- mounted to your vehicle using the respective attachments. To avoid draining your battery and assure the compressor is getting the proper amperage, make sure your vehicle’s engine is running during operation, especially if using for a prolonged period of time.
Page 4
TLC PLUS COMPRESSOR KIT Gauge Quick Connect Stud Quick Connect Coupler *Tolerance: ± 3% Inflation Trigger Bleeder Valve USING THE TLC TIRE INFLATOR 1. Connecting the TLC inflator: Select an inflation attachment and connect it to the TLC Inflator Quick-Connect Coupler. Then, connect the Inflator to an air hose by inserting the Quick-Connect Stud into the air hose coupler. 2. Inflating/Deflating Tires: To inflate, squeeze the Inflation Trigger by pressing it towards the handle of the inflator, this will allow air to flow into the tire. To deflate, press the Bleeder Valve located on the side of the body, this will release air from the tire. 3. Checking Tire Pressure: To check tire pressure after inflation/deflation, simply release the Inflation Trigger or the Bleeder Valve.
Your air compressor is equipped with a permanently lubricated, maintenance-free motor. Never try to lubricate the compressor. e. All repairs should be performed by Manufacturer or Manufacturer’s Authorized Service Agencies only. f. For complete information regarding VIAIR Warranty, please visit: www.viaircorp.com/warranty SPECIFICATIONS 00190 – TLC PLUS COMPRESSOR KIT: (CE Certified) Motor Voltage: 12-Volts Max.
Page 6
TLC PLUS COMPRESSOR KIT ABOUT COMPRESSOR DUTY CYCLE: Duty cycle refers to the amount of time a compressor can be operated in a given time period at 100 PSI, and a standard ambient temperature of 72° F. It is commonly expressed in percentage format: Compressor on time ÷ (on time + off time) = Duty Cycle %. ONE-HOUR DUTY CYCLE MINUTES ON / MINUTES OFF (100 PSI @ 72°F) 5 Min. On / 55 Min. Off 10% 6 Min. On / 54 Min. Off 15% 9 Min. On / 51 Min. Off 20% 12 Min. On / 48 Min. Off 25% 15 Min. On / 45 Min. Off 30% 18 Min. On / 42 Min. Off 33%...
Page 7
TLC PLUS COMPRESSOR KIT THIS PAGE LEFT INTENTIONALLY BLANK USER MANUAL...
Corporation and no ownership rights are hereby transferred. No part of the Manual shall be used, ® reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR ® VIAIR does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of ®...
