Summary of Contents for ADJ ANI-MOTION

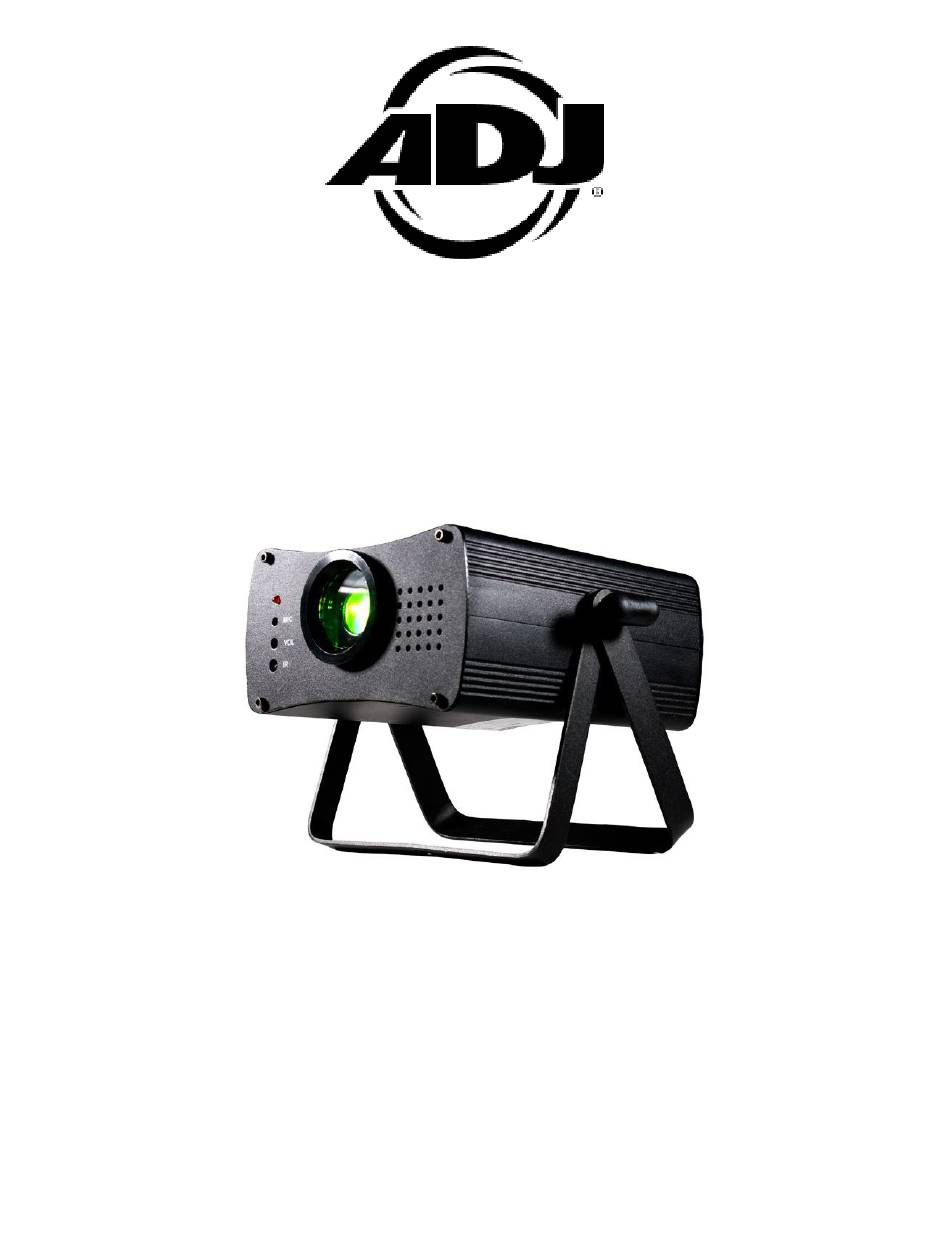

- Page 1 ANI-MOTION User Manual Rev. 04/06/2022...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Information Limited Warranty (USA Only) General Instructions | Features | Warranty Registration Safety Precautions Laser Warning and Safety Overview Operation | Dimensional Drawings UC Laser IR Control Cleaning | Trouble Shooting Specifications... -
Page 4: General Information
GENERAL INFORMATION Unpacking: Thank you for purchasing the Ani-Motion by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been dam- aged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. -
Page 5: Limited Warranty (Usa Only)
LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. -
Page 6: General Instructions | Features | Warranty Registration
Dual Hanging Bracket WARRANTY REGISTRATION The Ani-Motion carries a 1 year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS DANGER VISIBLE LASER RADIATION -AVOID DIRECT EYE EXPOSURE LASER DIODE WAVELENGTH : 635~650 nm Max Output : <4.9mW Class IIIa Laser Product • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. •... -
Page 8: Laser Warning And Safety
LASER WARNINGS AND SAFETY NON-INTERLOCKED HOUSING WARNING This device contains high power laser devices. Do not open the laser housing, as doing so may re- sult in exposure to unsafe levels of laser radiation. Without the protective housing in place, the laser power levels can cause instant blindness, skin burns, and fires. - Page 9 LASER WARNINGS AND SAFETY After the device has been set up, and prior to public use, test the laser to ensure proper function. Do not use if defects of any kind are detected. DO NOT USE IF LASER EMITS ONLY ONE OR TWO LASER BEAMS RATHER THAN DOZENS/HUNDREDS, as this could indicate damage to the dif- fraction grating optic, and could allow emission of higher laser levels above Class 3R.
- Page 10 LASER WARNINGS AND SAFETY WARNING LABELS - AMERICAN MARKET SPEC...
- Page 11 LASER WARNINGS AND SAFETY WARNING LABELS - EUROPEAN MARKET A.D.J Supply Europe B.V Junostraat 2,6468 EW Kerkrade, Netherlands Manufactured: SPEC...
-
Page 12: Overview
OVERVIEW AMERICAN VERSION EUROPEAN VERSION 1. Status LED - Indicates which operating mode is active. 2. Mic - Picks up the beat of the music in sound active mode. 3. Mic Sensitivity - Use a small screwdriver to adjust the sound sensitivity. 4. -
Page 13: Operation | Dimensional Drawings
OPERATION CAUTION! When installing this device, ensure that it is mounted in a manner that will prevent the audience from looking directly into the laser beam! Do not allow the beam to strike the audience! Operating Modes: This device features 2 operating modes: sound active mode and auto mode. Sound Active Mode: This mode allows the unit to run to the beat of the music. -
Page 14: Uc Laser Ir Control
UC LASER IR CONTROL The UC Laser IR infrared remote gives you control of various functions, as described below. To con- trol the fixture, you must aim the remote at the front of the fixture. Maximum operating range is 30 feet. -
Page 15: Cleaning | Trouble Shooting
CLEANING Due to fog residue, smoke, and dust, cleaning the internal and external lenses should be carried out periodically to optimize light output. • Use normal glass cleaner and a soft cloth to wipe down the outside casing. • Clean the external optics periodically with a microfiber cloth. •... -
Page 16: Specifications
Laser Accession Number: 1510707-000 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands service@americandj.eu / www.americandj.eu...
