Summary of Contents for METREL Eurotest 61557

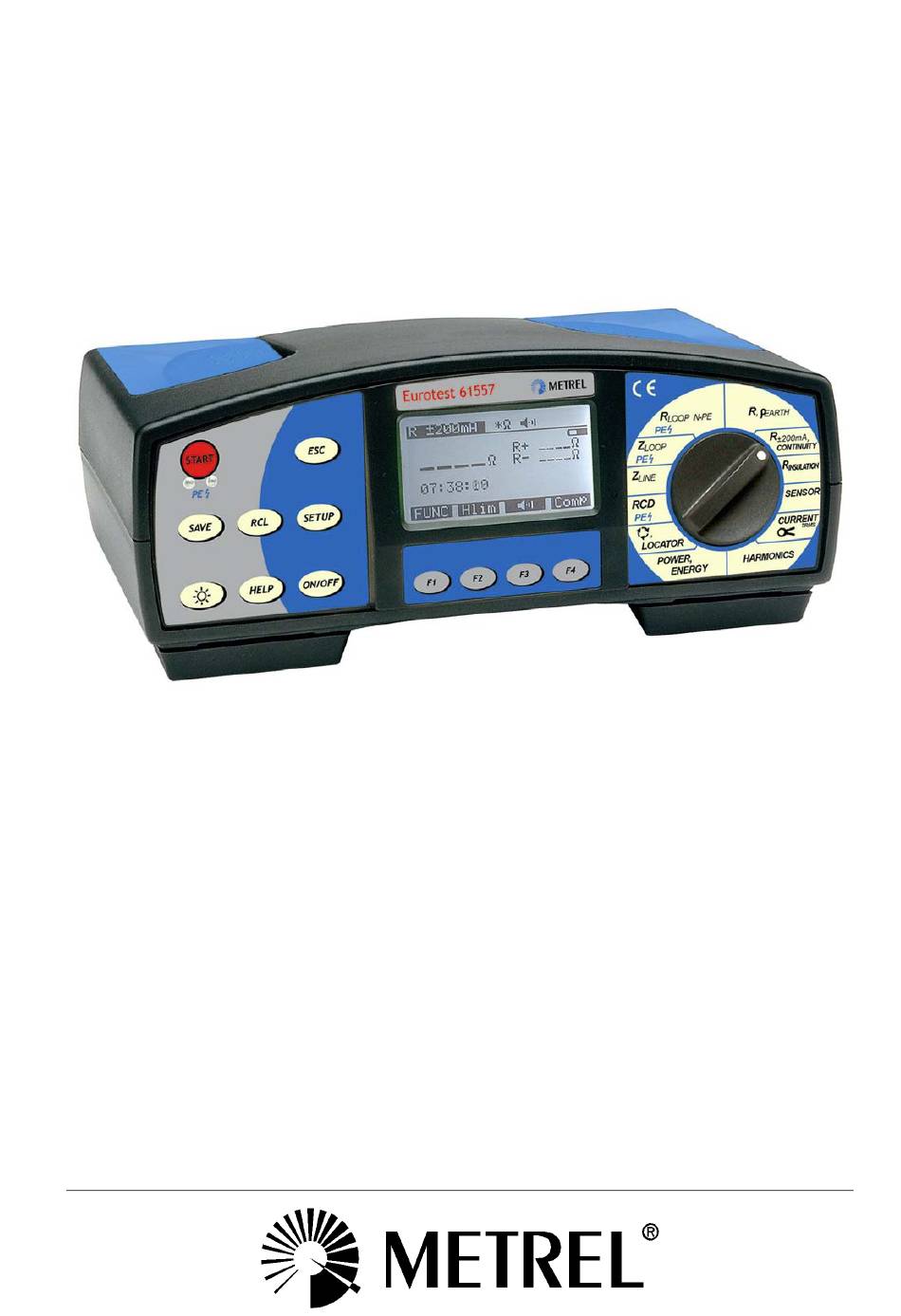

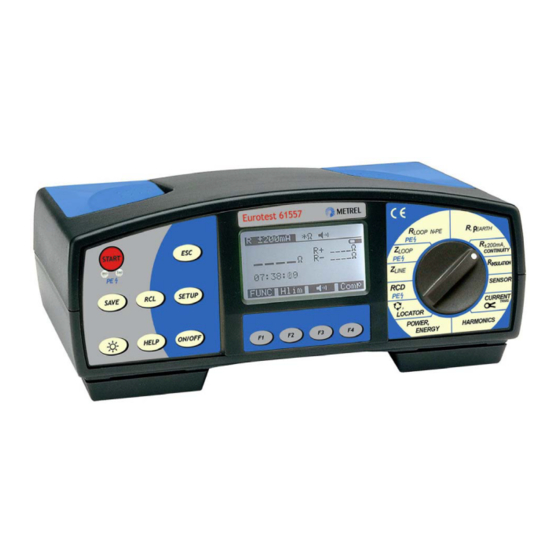

- Page 1 Eurotest 61557 MI 2086 User Manual Version 4.2, Code no. 20 750 719...
- Page 2 Measurement instructions 3.5. Earth Resistance (internal generator) The Eurotest 61557 test instrument is able to carry out Earth Resistance measurement using tree different methods. The appropriate one is to be selected by the operator on basis of concrete earthing system to be tested.
- Page 3 MI 2086 Eurotest Measurement instructions Range / discrete Step (Ω) value (Ω) 1 – 100 166, 250, 500, ⁄ 833, 1666, 2500, 5000 Fig. 24. Limit adjustment menu and table of presettable limit values ♦ Value between 1 Ω and 5000 Ω, according to the table above may be selected by using the ↑...
- Page 4 MI 2086 Eurotest Measurement instructions Option S 2002 MPEC >5d Fig. 26. Connection of optional Earth Test Set – 50 m (Order No. S 2002) Step 4 ♦ Press the START key and keep it pressed, until result is stabilised, then release the key.
