Summary of Contents for METREL DeltaPAT MI 3309 BT

  • Page 1: Instruction Manual

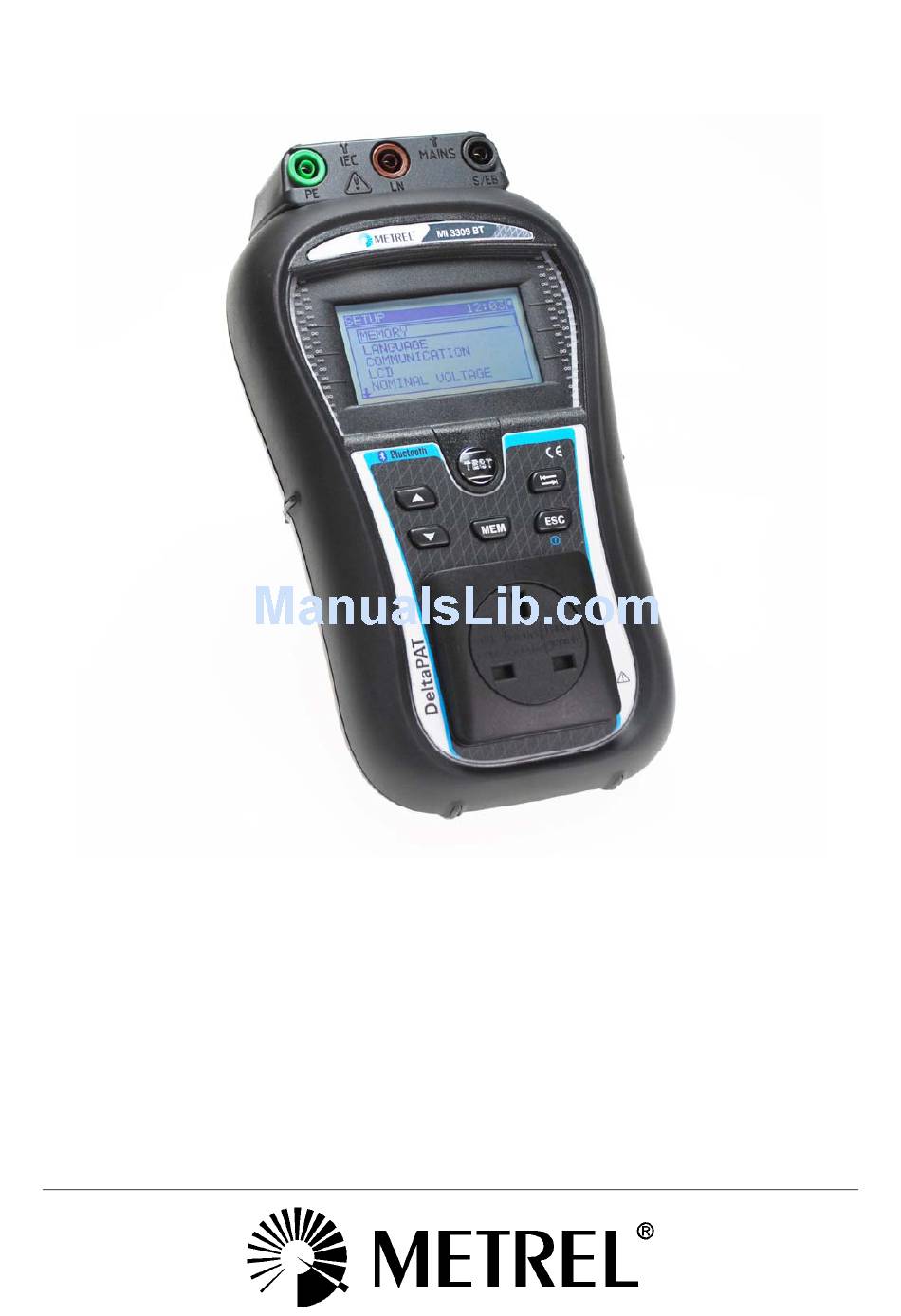

    DeltaPAT MI 3309 BT Instruction manual Ver. 1.6, Code no. 20 751 859...
  • Page 2 Mark on your equipment certifies that this equipment meets the requirements of the EU (European Union) regulations concerning safety and electromagnetic compatibility No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.

  • Page 3: Table Of Contents

    MI 3309 BT DeltaPAT Table of contents Table of contents General description....................6 1.1. Warnings .......................7 1.2. Battery and charging .....................8 1.3. New battery cells or cells unused for a longer period ..........9 1.4. Standards applied....................10 Instrument description ..................11 2.1. Front panel ......................11 2.2.
  • Page 4 MI 3309 BT DeltaPAT Table of contents Single test ......................34 5.1. Performing measurements in single test mode............34 5.2. Measurements and inspections ................34 5.2.1. Visual inspection ..................34 5.2.2. Earth continuity resistance ................35 5.2.3. Insulation resistance..................37 5.2.4. Insulation resistance – P ................39 5.2.5.
  • Page 5 MI 3309 BT DeltaPAT Table of contents Measuring 110 V appliances ................74 9.1. How to perform measurements by using 110 V adapter........74 Maintenance ......................75 10.1. Periodic calibration...................75 10.2. Replacement of the fuses ................75 10.3. Service ......................75 10.4. Cleaning......................75 Instrument set and accessories................76 Appendix A –...

  • Page 6: General Description

     additional connectors for fixed appliances testing;  built-in real time clock;  fully compatible with new METREL PATLink PRO PC software package; Powerful functions for fast and efficient periodic testing are included:  pre-programmed test sequences;  fast testing with the help of barcodes and RFID tags;...

  • Page 7: Warnings

    MI 3309 BT DeltaPAT General description 1.1. Warnings In order to reach a high level of operator safety while carrying out various measurements using the instrument, as well as to keep the test equipment undamaged, it is necessary to consider the following general warnings: ...

  • Page 8: Battery And Charging

    If the instrument is not to be used for a long period of time, remove all batteries from the battery compartment.  Rechargeable NiCd or NiMH batteries type HR 6 (size AA) can be used. Metrel recommends only using rechargeable batteries with a capacity of 2100mAh or higher.

  • Page 9: New Battery Cells Or Cells Unused For A Longer Period

    (sometimes called the memory effect). As a result the instrument operation time can be significantly reduced during the initial charging/discharging cycles of the batteries. In this situation, Metrel recommend the following procedure to improve the battery lifetime: Procedure Notes ...

  • Page 10: Standards Applied

    MI 3309 BT DeltaPAT General description 1.4. Standards applied The DeltaPAT is manufactured and tested in accordance with the following regulations: Electromagnetic compatibility (EMC) EN 61326 Electrical equipment for measurement, control and laboratory use – EMC requirements Class B (Hand-held equipment used in controlled EM environments) Safety (LVD) EN 61010-1 Safety requirements for electrical equipment for measurement, control...

  • Page 11: Instrument Description

    MI 3309 BT DeltaPAT Instrument description 2. Instrument description 2.1. Front panel Figure 2.1: Front panel Legend: 128 x 64 dots matrix display with backlight. FAIL Red indicator Indicates PASS / FAIL of result. PASS Green indicator TEST Starts testing / confirms selected option. Selects parameter / changes value of selected parameter.

  • Page 12: Connector Panel

    MI 3309 BT DeltaPAT Instrument description 2.2. Connector panel Figure 2.2: Connector panel Legend: 1 S/EB Probe and Earth continuity terminal 2 IEC IEC test terminal 3 LN LN terminal (for connection of fixed installed appliances) 4 PE PE terminal (for connection of fixed installed appliances) Fuses: 2 x T16 A / 250 V;...

  • Page 13: Back Side

    MI 3309 BT DeltaPAT Instrument description 2.3. Back side Figure 2.3: Back side Legend: Inserts for side belt Battery compartment cover Fixing screw for battery compartment cover Back side information label Holder for inclined position of the instrument Figure 2.4: Battery compartment Legend: Battery cells Type HR 6 (size AA), rechargeable NiMH / NiCd...

  • Page 14: Meaning Of Symbols And Messages On The Instrument Display

    MI 3309 BT DeltaPAT Instrument description 2.4. Meaning of symbols and messages on the instrument display Before performing a measurement, the instrument performs a series of pre-tests to ensure safety and to prevent any damage. These safety pre-tests are checking for any external voltage and load condition on test terminals.
  • Page 15 MI 3309 BT DeltaPAT Instrument description WARNING! A high resistance between L and N was measured in the fuse pre-test. This indication means that the device under test has very low power consumption or it is:  not connected;  switched off;...
  • Page 16 MI 3309 BT DeltaPAT Instrument description WARNING! A high voltage will be present on the output of the instrument! WARNING! A high insulation test voltage is present on the output of the instrument. Measurement is in progress. Test result can be saved. Connect the test lead to the S/EB test terminal.

  • Page 17: Battery Indication

    MI 3309 BT DeltaPAT Instrument description 2.4.1. Battery indication T he indication shows the charge condition of battery and connection of external charger. Battery capacity indication. Low battery. Battery is too weak to guarantee correct result. Replace or recharge the battery cells. Instrument is connected to the mains (and is charging)

  • Page 18: Technical Specifications

    MI 3309 BT DeltaPAT Technical specifications 3. Technical specifications 3.1. Earth continuity Range Resolution Accuracy 0.00   19.99  0.01  (5 % of reading + 3 digits) 20.0   199.9  0.1  Indication only 200   1999  1 ...

  • Page 19: Substitute Leakage Current

    MI 3309 BT DeltaPAT Technical specifications 3.3. Substitute leakage current Range Resolution Accuracy 0.00 mA  9.99 mA 0.01 mA (5 % of reading + 3 digits) 10.0 mA  20.0 mA 0.1 mA Powered by....... battery or mains Open circuit voltage ....<50 V AC at rated mains voltage Short circuit current....

  • Page 20: Polarity Test

    MI 3309 BT DeltaPAT Technical specifications 3.5. Polarity test Powered by....... battery or mains Test voltage ......<50 V AC Detects........PASS, L OPEN, N OPEN, PE OPEN, L-N CROSS, L-N SHORT, L-PE SHORT, N-PE SHORT, MULTIPLE FAULT. Test terminals ......Test socket ↔ IEC test terminal 3.6.

  • Page 21: Prcd And Rcd Testing

    MI 3309 BT DeltaPAT Technical specifications 3.8. PRCD and RCD testing 3.8.1. General RCD Trip-out time Complete measurement range corresponds to EN 61557-6 requirements. Maximum measuring times set according to selected reference for RCD testing. Range Resolution Accuracy 0 ms  1999 ms (½I 0.1 ms N 3 ms...

  • Page 22: Power

    MI 3309 BT DeltaPAT Technical specifications 3.9. Power Apparent power Range Resolution Accuracy 0.00 kVA  4.00 kVA (5 % of reading + 3 digits) 0.01 kVA Current Range Resolution Accuracy 0.00 A  16.00 A (5 % of reading + 3 digits) 0.01 A Powered by.....

  • Page 23: General Data

    MI 3309 BT DeltaPAT Technical specifications 3.12. General data Power supply voltage......9 V (61.2 V NiMH or NiCd battery, type HR 6) (size AA) Operation .......... typical 8 h Battery charging current....250 mA (internally regulated) Overvoltage category......CAT II / 300 V Protection classification ....

  • Page 24: Main Menu And Test Modes

    MI 3309 BT DeltaPAT Main menu and test modes 4. Main menu and test modes 4.1. Instrument Main menu From the Main menu of the instrument there are five instrument operation modes, Help menu and Setup menu can be selected: Figure 4.1: Instrument Main menu Keys: Select one of the following menu items:...

  • Page 25: Shortcut Menu

    MI 3309 BT DeltaPAT Main menu and test modes 4.3. Shortcut menu In this menu are all the most popular pre-defined autotest sequences that can be selected and performed (shown in Appendix C). When an autotest sequence has been completed, the measurement results can be stored into instrument internal memory.

  • Page 26: Memory

    MI 3309 BT DeltaPAT Mai n menu and test modes Figure 4.6: Setup menu Keys:  /  Select the setting to adjust or view: <MEMORY> to recall, print or clear stored results, print labels and write RDIF tags; <LANGUAGE> instrument language; <COMMUNICATION>...

  • Page 27: Communication

    MI 3309 BT DeltaPAT Main menu and test modes Keys:  /  Selects the language. TEST Confirms selection and returns to Setup menu. Returns to Setup menu without changes. 4.6.3. Communication In this menu communication ports can be configured and the printer can be set. Figure 4.9: Communication menu Options: COM PORT...
  • Page 28  Bluetooth printers can also be operated from some Metrel Android applications. In this case the Bluetooth printer must be selected and paired with the instrument and the Android device. For more information refer to chapter 8.3 Bluetooth communication and Metrel Android application manual.

  • Page 29: Lcd Contrast And Backlight

    MI 3309 BT DeltaPAT Main menu and test modes 4.6.4. LCD contrast and backlight In this menu the contrast and backlight mode of the LCD can be set. Figure 4.11: LCD contrast menu Backlight modes: AUTO The high backlight level is active for 30 seconds after last pressing of any key. Then the backlight level returns to low level until a key is pressed again.

  • Page 30: Nominal Voltage Selection

    Shortcuts makes all shortcuts available from the Shortcut Menu. Figure 4.14: Shortcut setup menu Options: A limited list of (most popular) test sequences is set. BASIC ADVANCED The complete list of test sequences (supported by METREL) is set. Keys: Selects the list.  /  TEST Confirms selection and returns to Setup menu.

  • Page 31: Test Speed Setup

    MI 3309 BT DeltaPAT Main menu and test modes 4.6.8. Test speed setup In this menu the instrument test speed can be set: Figure 4.15: Test speed menu Options: STANDARD Default option. FAST No pauses during tests (default). Keys:  /  Selects the speed mode.

  • Page 32: User Data

    MI 3309 BT DeltaPAT Main menu and test modes 4.6.10. User data User data can be set in this menu. Figure 4.17: User data menu Keys:  /  Selects the user name. Confirms selection and returns to Setup menu. TEST Returns to Setup menu without changes.

  • Page 33: Initial Settings

    MI 3309 BT DeltaPAT Main menu and test modes Keys: Switches between Instrument data screens.  / TEST, Returns to Setup menu. 4.6.12. Initial settings In this menu the following instrument parameters can be set to their initial values:  all measurement parameters in single test mode;...

  • Page 34: Single Test

    MI 3309 BT DeltaPAT Single test 5. Single test In a Single test mode individual tests can be performed. This is especially helpful for troubleshooting. 5.1. Performing measurements in single test mode Select appropriate test in Single test menu. Figure 5.1: Single test menu Keys: ...

  • Page 35: Earth Continuity Resistance

    MI 3309 BT DeltaPAT Single test The following items should be checked:  Inspection of the device under test for sign of damage.  Inspection of the flexible power supply cable for damage.  Any signs of pollution, moisture, dirt that can jeopardize safety. Especially openings, air filters, protection covers and barriers must be checked! ...
  • Page 36 MI 3309 BT DeltaPAT Single test Typical test circuits for Earth continuity resistance measurement Figure 5.5: Measurement of Earth continuity Figure 5.6: Measurement of Earth continuity of fixed installed DUTs of Class I Earth continuity resistance measurement procedure  Compensate test lead resistance (optional). See chapter 4.6.5 for details. ...

  • Page 37: Insulation Resistance

    MI 3309 BT DeltaPAT Single test Figure 5.7: Examples of Earth continuity resistance measurement results Displayed results: Main result ..... Earth continuity resistance Note:  Consider displayed warnings before starting measurement!  It is recommended that the mains cable is folded during the test. ...
  • Page 38 MI 3309 BT DeltaPAT Single test Test circuits for Insulation resistance measurement Figure 5.9: Measurement of insulation resistance Figure 5.10: Measurement of insulation resistance of fixed installed DUTs of Class I Insulation resistance measurement procedure  Select the INSULATION function. ...

  • Page 39: Insulation Resistance - P

    MI 3309 BT DeltaPAT Single test Notes:  When S/EB probe is connected during the test then the current through it is also considered.  Consider any warning on the display before starting the measurement!  Do not touch or disconnect the device under test during the measurement or before it is fully discharged! The message »Udisch …«...

  • Page 40: Substitute Leakage

    MI 3309 BT DeltaPAT Single test Figure 5.14: Measurement of insulation resistance of fixed installed DUTs Insulation resistance - P measurement procedure  Select the INSULATION-P function.  Set the test parameters.  Connect device under test to the instrument (see Figure 5.13 and Figure 5.14). ...
  • Page 41 MI 3309 BT DeltaPAT Single test Figure 5.16: Substitute leakage menu Test parameters for Substitute leakage current measurement OUTPUT Test voltage [30 V] LIMIT Maximum current [0.25 mA, 0.50 mA, 0.75 mA, 1.00 mA, 1.50 mA, 2.00 mA, 2.25 mA, 2.50 mA, 3.50 mA, 4.00 mA, 4.50 mA, 5.00 mA, 5.50 mA, 6.00 mA, 7.00 mA, 8.00 mA, 9.00 mA, 10.0 mA, 15.0 mA, --- mA] TIME Measuring time [2s, 3s, 5 s, 10 s, 30 s, 60 s, 120 s, --- s (continuous...

  • Page 42: Substitute Leakage - P

    MI 3309 BT DeltaPAT Single test  Press the TEST key for measurement. To stop continuous measurement press TEST key once again.  Store the result by pressing MEM key (optional). Figure 5.19: Example of substitute leakage current measurement results Displayed results: Main result .....
  • Page 43 MI 3309 BT DeltaPAT Single test Test circuits for substitute leakage - P measurement Figure 5.21: Measurement of Substitute leakage - P current Figure 5.22: Measurement of substitute leakage of accessible isolated conductive parts of fixed installed DUTs Substitute leakage - P measurement procedure ...

  • Page 44: Polarity Test

    MI 3309 BT DeltaPAT Single test Notes:  Consider any displayed warning before starting measurement!  The currents flowing through the PE terminal or PE of the test socket will not be considered. 5.2.7. Polarity test This test checks the polarity of supply cords. The following faults can be detected: L OPEN, N OPEN, PE OPEN, L-N CROSS, L-N SHORT, L-PE SHORT, N-PE SHORT and MULTIPLE FAULT.

  • Page 45: Differential Leakage

    MI 3309 BT DeltaPAT Single test 5.2.8. Differential leakage The purpose of this test is to determine the sum of all leakages flowing from the live conductors to the earth. The differential method allows measuring the full and true leakage current, even if there are parallel current paths from the DUT to ground.

  • Page 46: Touch Leakage

    MI 3309 BT DeltaPAT Single test Figure 5.29: Examples of differential leakage current measurement result Displayed results: Main result I ... Differential leakage current Sub-result P....Apparent power Notes:  For this test the instrument must be connected to the mains voltage. ...
  • Page 47 MI 3309 BT DeltaPAT Single test Test circuits for touch leakage current measurement Figure 5.31: Measurement of touch leakage current Figure 5.32: Measurement of touch leakage current on a fixed installed DUT Touch leakage current measurement procedure  Select the TOUCH LEAKAGE function. ...

  • Page 48: P)Rcd Test

    MI 3309 BT DeltaPAT Single test Displayed results: Main result I ... Touch leakage current Sub-result P....Apparent power Notes:  For this test the instrument must be connected to the mains voltage.  During the test, mains voltage is connected to the DUT. If DUT contains moving parts, make sure that it is safely mounted or protected to prevent possible danger to the operator or damage to the DUT or surrounding environment! ...
  • Page 49 MI 3309 BT DeltaPAT Single test Test circuits for testing RCD and PRCD a) Testing of standard RCD c) Testing of PRCD via test socket b) Testing of PRCD via mains socket Figure 5.36: Testing of RCD and PRCD 5.2.10.1 (P)RCD single test In single test a fast (P)RCD test with selected test current and with one or both starting polarities is performed.
  • Page 50 MI 3309 BT DeltaPAT Single test  Depending on the type of PRCD, it may be necessary to manually switch it on.  Press the TEST key to perform measurement. If both starting polarities are selected:  Reactivate tested PRCD. ...

  • Page 51: Power Test

    MI 3309 BT DeltaPAT Single test  PRCD: Connect tested PRCD / device to an external voltage socket. Connect the IEC cord to the instrument´s MAINS terminal and PRCD (see Figure 5.36b). Or connect tested PRCD between test socket and IEC connector of the DeltaPAT Connect the instrument to mains voltage (see Figure 5.36c).
  • Page 52 MI 3309 BT DeltaPAT Single test Figure 5.39: Power test Power test procedure  Select the POWER function.  Set test parameters.  Connect device under test to the instrument’s test socket and switch it on (see Figure 5.39).  Connect the instrument to mains voltage.

  • Page 53: Voltage Trms

    MI 3309 BT DeltaPAT Single test 5.2.12. Voltage TRMS In this function the voltage across the MAINS terminal is measured continuously. Test circuit for voltage measurement Figure 5.41: Voltage measurement with the IEC cord Voltage TRMS procedure  Select the VOLTAGE TRMS function. ...
  • Page 54 MI 3309 BT DeltaPAT Single test Figure 5.43: Clamp current menu Test parameters for clamp current measurement LIMIT Maximum current [0.50 mA, 0.75 mA, 1.00 mA, 1.50 mA, 2.00 mA, 2.25 mA, 2.50 mA, 3.50 mA, 4.00 mA, 4.50 mA, 5.00 mA, 5.50 mA, 6.00 mA, 7.00 mA, 8.00 mA, 9.00 mA, 10.0 mA, 15.0 mA, --- mA] TIME Measuring time [2 s, 3 s, 5 s, 10 s, 30 s, 60 s, 120 s, none]...

  • Page 55: Functional Test

     METREL offers high quality current clamps for this application.  Current clamp shield terminal connector (green terminal) can be left open.

  • Page 56: Automatic Test Sequences

    All limits and tests are in compliance with currently valid standards and regulations. In case of any changes, new firmware will be available at your distributor or from Metrel directly. The number of autotest shortcut sequences that are offered by the instrument can be set in the SHORTCUT SETUP menu.

  • Page 57: Selecting The Autotest Shortcut Sequence

    MI 3309 BT DeltaPAT Automatic test sequences Note:  The DeltaPAT instrument does not include all test functions and parameters covered in the Shortcut codes. If such a Shortcut code is set the instrument automatically perform alternative tests : - a 200 mA Earth continuity test if a test current of more than 200 mA is set. -a Normal polarity test If Active polarity test is set.

  • Page 58: Carrying Out (Simple, Shortcut) Test Sequences

    MI 3309 BT DeltaPAT Automatic test sequences For more information refer to Chapter 8.3 Bluetooth communication and PATLink Android instructions. 6.3. Carrying out (Simple, Shortcut) test sequences General meaning of keys during a Simple or Shortcut test sequence: TAB, / Sets option.

  • Page 59: Insulation Resistance Measurement

    MI 3309 BT DeltaPAT Automatic test sequences Options in Earth continuity result screen: NEXT Proceeds to next step. REPEAT Repeat the test (use in case of multiple earthed points). Highest result will be stored. 6.3.3. Insulation resistance measurement The test is offered if it is applicable according to the autotest setting. The Insulation starting screen is displayed first.

  • Page 60: Differential Leakage Measurement

    MI 3309 BT DeltaPAT Automatic test sequences 6.3.5. Differential leakage measurement The test is offered if it is applicable according to the autotest setting. The Differential leakage current starting screen is displayed first. Measurement and options in Differential leakage starting screen are described in chapter 5.2.8 Differential leakage. Figure 6.11: Differential leakage starting screen After the measurement is carried out the Differential leakage result screen is displayed.

  • Page 61: Substitute Leakage - P Measurement

    MI 3309 BT DeltaPAT Automatic test sequences 6.3.7. Substitute Leakage - P measurement The test is offered if it is applicable according to the autotest setting. The Substitute leakage - P starting screen is displayed first. Measurement and options in Substitute leakage - P starting screen are described in chapter 5.2.6 Substitute leakage - P.

  • Page 62: P)Rcd Test

    MI 3309 BT DeltaPAT Automatic test sequences 6.3.9. (P)RCD test The test is offered if it is applicable according to the autotest setting. The (P)RCD test starting screen is displayed first. Measurement and options in (P)RCD test starting screen are described in chapter 5.2.10 RCD test.

  • Page 63: Clamp Current Measurement

    MI 3309 BT DeltaPAT Automatic test sequences Figure 6.23: Power starting screen After the measurement is carried out the Power result screen is displayed. Figure 6.24: Power result screen There are no special options to be set in the Power result screen. 6.3.12.

  • Page 64: Handling Autotest Results

    MI 3309 BT DeltaPAT Automatic test sequences 6.4. Handling autotest results After the Simple / Shortcut autotest is finished, the Main autotest result screen will be isplayed including an overall  /  indication. Figure 6.28: Main autotest result screen Options in Autotest results screen: VIEW RESULTS Views individual results.

  • Page 65: Working With Autotest Results

    MI 3309 BT DeltaPAT Working with autotest results 7. Working with autotest results 7.1. Saving autotest results After selecting Save results in Autotest results menu, the autotest results will be stored in the internal memory of the instrument. The appliance ID number, NAME, Re-Test period and LOCATION can be added to the test results before the results are saved: Figure 7.1: Save results menu (Appliance ID) Keys:...

  • Page 66: Recalling Results

    MI 3309 BT DeltaPAT Working with autotest results The Re-Test period can be entered. Figure 7.4: Save results menu (Re-Test period) Keys:  / , TEST Set Re-Test period in months. ESC (CANCEL) Returns to the previous menu. MEM (SAVE) Saves Re-Test period and returns to Autotest result menu.

  • Page 67: Deleting Individual Autotest Results

    MI 3309 BT DeltaPAT Working with autotest results To enter the Recall results menu select Recall results in Memory menu. A list of Appliance ID’s and NAMES are displayed in a chronological order (last performed measurement is displayed at the bottom of the list). In the lower display the following data is displayed: ...

  • Page 68: Clearing Complete Memory Content

    MI 3309 BT DeltaPAT Working with autotest results Keys:  /  Select autotest result to be deleted. TEST Deletes selected autotest result. Returns to Setup menu. 7.4. Clearing complete memory content Select CLEAR ALL MEMORY in Memory menu. A warning will be displayed. Figure 7.11: Clear all memory menu Keys: TEST...

  • Page 69: Printing Labels / Writing In A Rfid Tag From Setup/ Memory Menu

    MI 3309 BT DeltaPAT Working with autotest results test for more information regarding Simple test. PRINTER Proceeds to menu for printing barcode or QR code labels. Proceeds to menu for writing RFID tag. RFID Returns to Shortcut or Simple menu. 7.5.2.
  • Page 70 MI 3309 BT DeltaPAT Working with autotest results Print QR label An appliance label with QR code will be printed. Keys:  /  Selects action. TEST Confirms and executes selected action. Exits back to previous menu without changes. In the RFID menu a RFID tag can be written. Figure 7.16: RFID tag menu Write RFID tag The test information is copied to RFID reader/writer.

  • Page 71: Communication

    MI 3309 BT DeltaPAT Communication 8. Communication There are three communication interfaces for communication with PC and other external devices: USB, RS232 and Bluetooth. See chapter 4.6.3 Communication for more information. 8.1. USB communication How to establish an USB link: ...

  • Page 72: Bluetooth Communication

    Be sure that settings in Communication menu (see chapter 4.6.3 Communication) are as following: PRINTER: ZEBRA BT PRN NAME: ZebraPRN The dongle should be properly initialized (see chapter 4.6.3 Communication).  If printing from Android device be sure that Zebra printer is selected in the Metrel...
  • Page 73 MI 3309 BT DeltaPAT Communication Android application as the Bluetooth printer. The configuration tool is available in the Metrel's Android application.  The instrument and printer are ready to communicate. Notes:  The name of a correctly configured Bluetooth device must consist of the instrument type plus serial number, eg.

  • Page 74: Measuring 110 V Appliances

    MI 3309 BT DeltaPAT Measuring 110 V appliances 9. Measuring 110 V appliances The DeltaPAT instrument allows measurements to be performed on 110 V appliances. When the 110 V adapter is used only the following measurements can be performed:  Earth continuity resistance, ...

  • Page 75: Maintenance

    We recommend an annual calibration. The calibration has to be done by an authorized technical person only. 10.2. Replacement of the fuses The DeltaPAT MI 3309 BT instrument contains two accessible fuses: F1, F2 fuse type: ...

  • Page 76: Instrument Set And Accessories

    MI 3309 BT DeltaPAT Instrument set and accessories 11. Instrument set and accessories Standard set of the instrument  Instrument MI 3309 BT DeltaPAT  Test probe, black  Crocodile clip, black  Test lead, 1.5 m, black  2 x IEC cord, 1.5 m ...

  • Page 77: Appendix A - Barcode And Qr Code Formats

    MI 3309 BT DeltaPAT Appendix A – Barcode and QR code formats Appendix A – Barcode and QR code formats Barcode formats The instrument DeltaPAT supports two barcode formats (single and double). Autotest code and appliance ID Autotest codes are represented as a three digits code. These autotest codes can also be represented by the barcode.

  • Page 78: Appendix B - Simple Test Codes (Uk)

    MI 3309 BT DeltaPAT Appendix B – Simple test codes (UK) Appendix B – Simple test codes (UK) Type Class Earth continuity Insulation S. Leakage Polarity Limit Limit Limit CLASS I 0.20 Ω 200 mA 1.00 MΩ 500 V 0.75 mA CLASS II 2.00 MΩ...

  • Page 79: Appendix C - Autotest Shortcut Codes (Uk)

    MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) Appendix C – Autotest shortcut codes (UK) Autotests marked bold are available if SHORTCUT setup is set to BASIC. Refer to chapter 4.6.7 Shortcut Setup for more information. Type Class Fuse Cord Earth Bond Insulation...
  • Page 80 MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) Type Class Fuse Cord Earth Bond Insulation S. Leakage Leakage T. Leakage Code Limit Limit Limit Limit Limit IT equipment EN 60950 short 0.10 Ω 100 1.00 MΩ 500 V 3.5 mA midd 0.30 Ω...
  • Page 81 MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) IEC leads Surge protected = OFF / RCD protected = OFF Length Earth Bond Insulation Polarity Code Limit Limit 0.5mm / 3A <=5 m 0.30 Ω 10 A 1.00 MΩ 500 V ...
  • Page 82 MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) IEC leads Surge protected = ON RCD protected = OFF Length Earth Bond Insulation Polarity Code Limit Limit 0.5mm / 3A <=5 m 0.30 Ω 10 A 1.00 MΩ 250 V ...
  • Page 83 MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) IEC leads Surge protected = OFF RCD protected = ON Length Earth Bond Leakage Polarity Code Limit Limit 0.5mm / 3A <=5 m 0.30 Ω 10 A 0.75 mA PRCD: 30 mA ...
  • Page 84 MI 3309 BT DeltaPAT Appendix C – Autotest shortcut codes (UK) 12 m 0.30 Ω 25 A 0.75 mA PRCD: 30 mA  active Auto 1.5mm / 15 A <=5 m 0.20 Ω 25 A 0.75 mA PRCD: 30 mA ...
