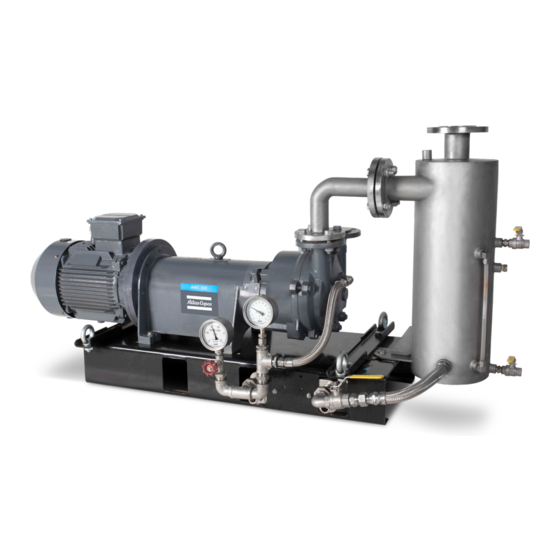

- Page 1 Atlas Copco Liquid Ring Vacuum Pumps Standard/Safe Area bare shaft AWC160, AWC220, AWC290, AWC390 Instruction Manual LRP200000228 Issue A...
- Page 2 Note: This declaration covers all product serial numbers from the date this Declaration was signed onwards. Atlas Copco Airpower n.v. Boomsesteenweg 957, B-2610 Wilrijk, Belgium This product has been manufactured under a quality management system certified to ISO9001:2015 This declaration is based on the requirements of ENISO17050-1 and the relevant Directives...
- Page 3 Atlas Copco Liquid Ring Vacuum Pumps Standard/Safe Area AWC160, AWC220, AWC290, AWC390 Instruction manual Copyright notice Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings.
- Page 4 Instruction Manual This page has been intentionally left blank. LRP200000228 Issue A...
-
Page 5: Table Of Contents
Instruction Manual Table of contents Introduction ................................. 7 1.1 Scope and definitions ............................. 7 1.2 The liquid ring pump ............................... 7 1.3 Applications ................................8 Technical Data ..............................9 2.1 Operating and storage conditions .......................... 9 2.2 Mechanical data ..............................9 2.3 Performance ................................ - Page 6 Instruction Manual Storage and disposal............................29 6.1 Storage ................................. 29 6.2 Disposal ................................30 Service and spares ............................31 7.1 Introduction ................................31 7.2 Service ................................. 31 7.3 Spares .................................. 31 Contamination ..............................31 Illustrations Figure Page Figure 1 - Recommended sealing liquid and seals flush supply system configurations: sheet 1 of 2 ....... 16 Figure 2 - Recommended sealing liquid and seals flush supply system configurations: sheet 2 of 2 .......
-
Page 7: Introduction
Instruction Manual Introduction Scope and definitions This manual provides installation, operation and maintenance instructions for the Atlas Copco Standard/Safe Area Liquid Ring Vacuum Pumps (abbreviated to ‘liquid ring pump(s)’ or ‘pump(s)’ in the remainder of this manual). You must use your pump as specified in this manual. -
Page 8: Applications
You must ensure that the pump is suitable for your application. If you have any doubts as to the suitability of the pump for your application, consult Atlas Copco Applications Engineers for advice. -
Page 9: Technical Data
Refer to GA drawing LRP20000A727 Refer to GA drawing LRP20000A727 Mass Refer to GA drawing LRP20000A727 Process, sealing liquid and seals flush connections Maximum flatness deviation for mounting * AWC160, AWC220, AWC290, AWC390 0.1 mm/m * Refer to Section 3.7. Performance... -
Page 10: Table 3 - Performance Data
1450 10.5 * Nominal pump rotational speed. † Recommended motor power. For increased motor power, consult Atlas Copco. ‡ Performance specifies the inlet capacity (m /h) for the specified inlet pressures, (40 mbar(a), 100 mbar(a), 200 mbar(a) and 300 mbar(a)). -
Page 11: Noise And Vibration Data
Circuit with separator and re-circulation of working liquid Type 33-200 200-500 33-200 200-500 mbar mbar mbar mbar mbar mbar AWC160 0.80 0.35 0.30 0.45 0.25 0.12 0.12 0.50 0.30 AWC220 1.00 0.40 0.35 0.12 AWC290 1.20... -
Page 12: Table 9 - Sealing Liquid Supply Data
1 x 10 -5 m 2 s -1 1200 kg m -3 Maximum density* Maximum flow rate See Table 6 Maximum temperature 80 ° C * Contact your supplier or Atlas Copco if you want to use a sealing liquid with higher density/viscosity. LRP200000228 Issue A... -
Page 13: Materials Of Construction
Instruction Manual Materials of construction Table 10 – Materials of construction; process contact parts AWC160, AWC220, AWC290, AWC390 pumps Component Cast iron/Stainless steel fitted Stainless steel End casings Grey cast iron Stainless steel 304 Port plate Grey cast iron Stainless steel 304... -
Page 14: Installation
Instruction Manual Installation Installation requirements 3.1.1. General requirements The following requirements apply to all pumps: • The pump is supplied as a bare shaft pump. To operate the pump, you must fit a motor, or connect the pump to a drive with the characteristics set out in Section •... -
Page 15: Pumping System Design
Instruction Manual Table 11 – Maximum inlet/outlet connection loading forces and moments Maximum external forces (N) on Maximum external moments (Nm) on inlet/outlet connections † inlet/outlet connections * Pump AWC160 1500 1300 1650 2600 1400 1000 1150 2050 AWC220 1950... -
Page 16: Figure 1 - Recommended Sealing Liquid And Seals Flush Supply System Configurations: Sheet 1 Of 2
Instruction Manual If your pump is not supplied with such a system, you must install the pump in a supply system which: • Supplies sealing liquid to the pump. Your supply system must be configured in one of the following three ways (shown in Figure •... - Page 17 Instruction Manual Reference Description Total recirculation system Partial recirculation system Once-through system Priming/drain valve Liquid ring pump Liquid ring supply pipeline Sealing liquid supply flow indicator Temperature gauge Flow regulating valve Cooler Sealing liquid reservoir Float operated fill/top-up valve Liquid ring supply valve Liquid ring supply Discharge outlet/vent Overflow...
-
Page 18: Unpack And Inspect
If the pump is not suitable for use in your system, do not continue to install the pump: contact your Supplier or Atlas Copco. If the pump is not to be used immediately, refit the protective covers. Store the pump in suitable conditions,... -
Page 19: Table 12 - Motor Reference Data
Below motor data for reference only. Table 12 – Motor reference data Motor data recommendation Frequency: Speed: Power: Voltage: Frame Pump Pole Mounting size 1450 400/690 112M AWC160 1750 132M 25-65 1450 132M 1450 400/690 132S AWC220 1750 160M 25-65 1450 160M... -
Page 20: Connect The Sealing Liquid Pipelines
Connect the sealing liquid pipelines WARNING Atlas Copco cast iron pumps are treated with a corrosion inhibitor. To avoid contamination flush with a suitable fluid. Connect the sealing liquid system pipelines to the pump in accordance with the requirements shown in the... -
Page 21: 3.10 Connect The Electrical Supply To The Motor
Check the direction of rotation of the pump as follows: 1. Atlas Copco preferred method would be to visibly check the fan on the motor for direction of rotation. If this is not possible, temporarily remove any guard over the drive coupling or belt. -
Page 22: 3.12 Check The Leak Tightness Of The System
Instruction Manual pump (refer to Section 4.4) after a few seconds. 3. Check that the pump drive shaft rotated correctly in the direction shown by the arrow on the pump. 4. If the direction of rotation was incorrect: • If you have fitted a drive and transmission system: check the drive and transmission system and reconfigure in accordance with the manufacturer’s instructions. -
Page 23: Operation
Instruction Manual Operation NOTE The procedures in the following sections assume that your sealing liquid supply system is as shown in Figure 1, detail A, B or C. General operation safety WARNING Obey the safety instructions and precautions listed below. If you do not, there may be a risk of injury or death to people, or damage to the pump. -
Page 24: Cavitation And Fluid Hammer
Instruction Manual 1. Refer to Figure 1, detail A, B or C. Open the sealing liquid supply valve (10) and the priming/drain valve (1). 2. Wait until liquid flows from the priming/drain valve (1). The pump is now primed. 3. Close sealing liquid supply valve (10) and then close the priming/drain valve (1). 4. -
Page 25: Shut Down
Instruction Manual Shut down WARNING Ensure that it is safe to shut down the pump before you use the following procedure. NOTE Should the pump be idle for an extended period of time it is recommended that the pump be disconnected from the electrical supply and drained of all liquids (refer to Section 6.1). -
Page 26: Maintenance
Fluorinated materials in the pump may include greases and seals. The pump may have overheated if it was misused, if it malfunctioned or if it was in a fire. Atlas Copco Safety Data Sheets for fluorinated materials used in the pump are available on request: contact your supplier or Atlas Copco. -
Page 27: Check Pipelines And Connections
Standard/Safe Area pumps must be internally inspected every three years and overhauled when necessary. We recommend that pump overhaul be carried out at an Atlas Copco Service Centre. Contact your supplier or your nearest Atlas Copco company to arrange for the overhaul. -
Page 28: Fault Finding
Table 15 to assist you in basic fault finding. If you are unable to rectify a fault when you use this guide, call your supplier or your nearest Atlas Copco Service Centre for advice. Table 15 – Fault finding Symptom... -
Page 29: Storage And Disposal
(in which case, harmful bacteria may have propagated inside the pump) NOTE If the pump is to be stored for more than 6 months, consult the supplier or Atlas Copco. LRP200000228 Issue A... -
Page 30: Disposal
Instruction Manual If the pump is to be stored for two months or more: 1. Drain the sealing liquid from the pump. 2. Remove the protective covers from the process inlet and outlet. 3. For cast iron construction pumps, spray a suitable corrosion inhibitor through the process inlet and/or the process outlet, onto the internal surfaces of the pump. -
Page 31: Service And Spares
The majority of these centers employ Service Engineers who have undergone comprehensive Atlas Copco training courses. Order spare parts and accessories from the nearest Atlas Copco Company or distributor. When ordering, state for each part required: •... - Page 32 COMMITED TO SUSTAINABLE PRODUCTIVITY We stand by our responsibilities towards our customers, towards the environment and the people around us. We make performance stand the test of time. This is what we call — Sustainable Productivity. www.atlascopco.com...
