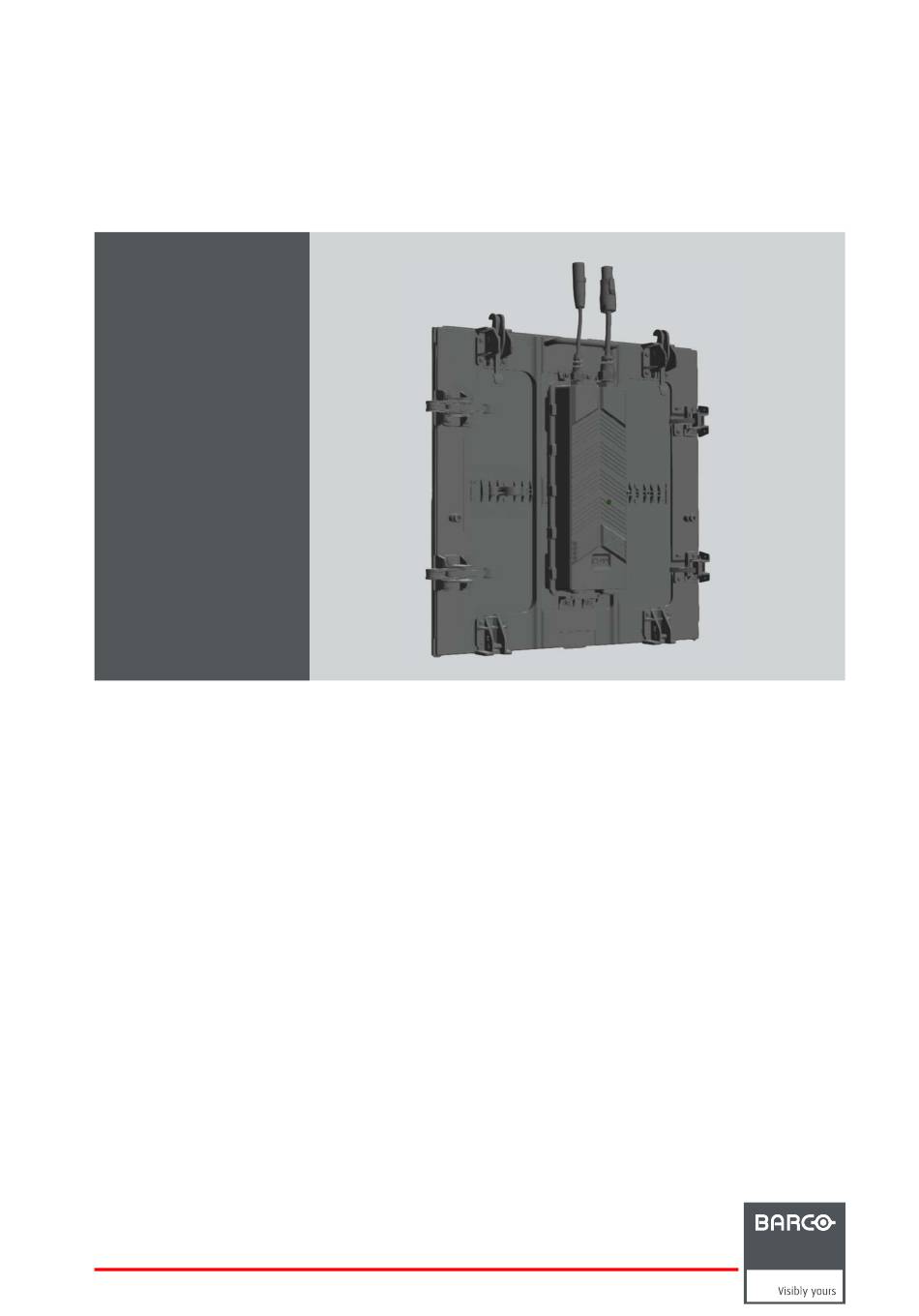

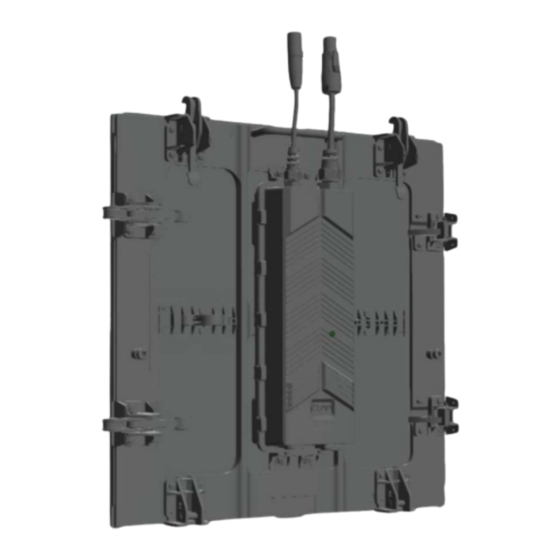

- Page 1 X2.8R Safety Manual Indoor installation R5906159/00 14/12/2017...
- Page 2 Barco Visual (Beijing) Electronics Co., Ltd 地址：北京市 昌平区 中关村科技园 昌平园 昌盛路 16号 Phone: +86 10 8010 1166 Fax: +86 10 8970 2793 Support: www.barco.com/en/support Visit us at the web: www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11...
- Page 3 Read this chapter attentively. It contains important information to prevent personal injury while installing the X2.8R display. Further- more, it includes several cautions to prevent damage to the X2.8R tiles. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the X2.8R tiles. After this chapter, additional “warnings”...
- Page 4 Structural & mounting components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. Barco products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part.
- Page 5 LEDs: The LEDs used on the X2.8R tiles are fragile. Never push with a hard or sharp object onto the lens of the LED as this may cause damage to the LED. The maximum allowed load upon the lens of the LED is 300 gram/LED. Be careful when installing a shader upon the X2.8R tiles.
- Page 6 Safety and functional features of the display cannot be defeated. • It is not allowed to climb or hang any additional equipment on the back of an X2.8R wall. Nothing is to be allowed to hang from the cables of an X2.8R tile.
- Page 7 1. Safety • Barco supplies a variety of stacking and hanging accessories for screens up to12 tiles stacked or 25 tiles hanging. • Ensure rigging hardware is able to handle the weight of the entire X2.8R with appropriate safety factors.
