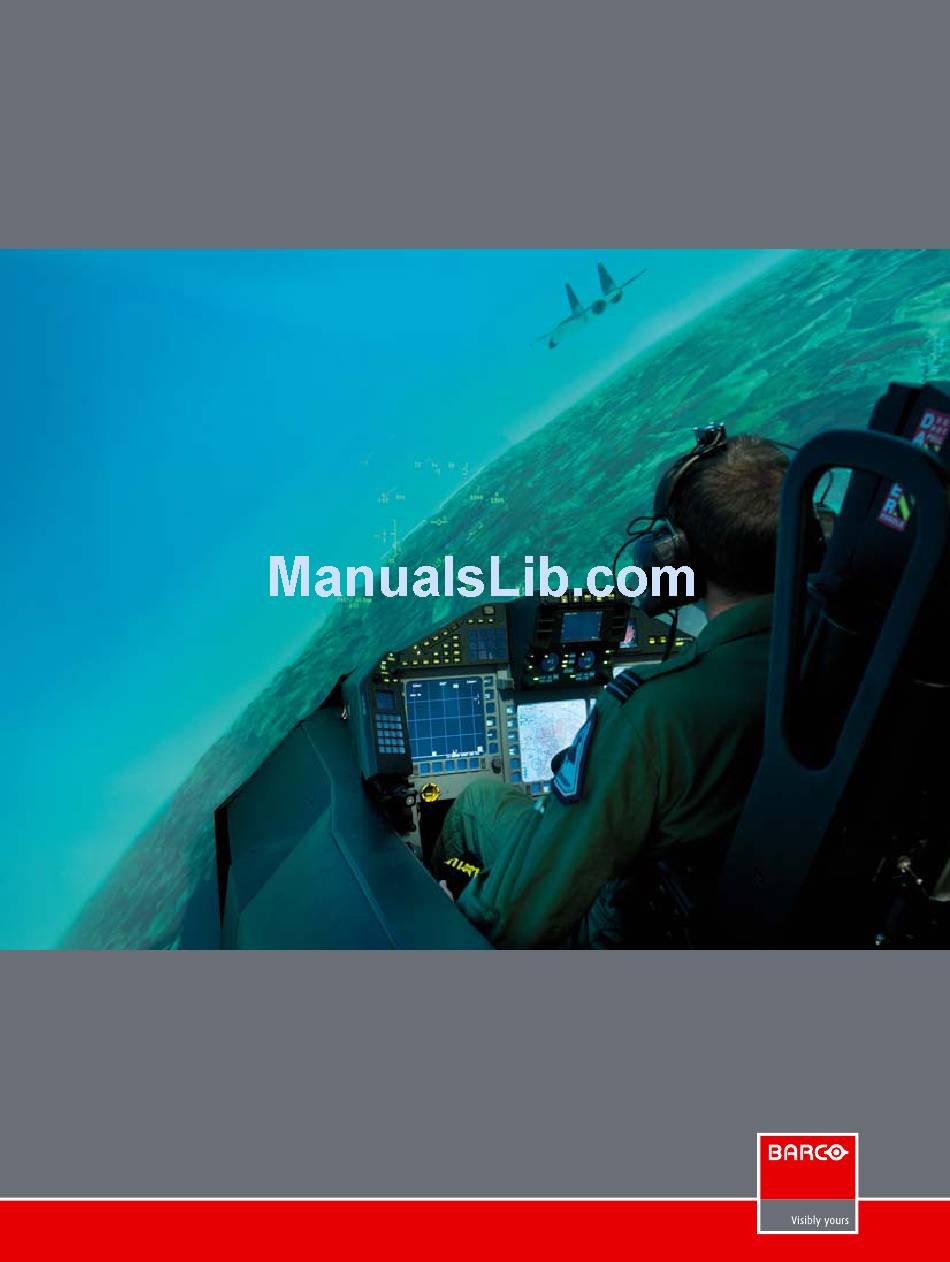

- Page 1 Barco Simulation Innovative simulation display solutions...
- Page 2 Ship bridge simulation Photo courtesy of South Tyneside Maritime Training College, UK Air traffic control Photo courtesy of the National Air and Space Laboratory, The Netherlands Flight simulation Photo courtesy of Thales Training & Simulation Drive simulation Glass Mountain Optics • Flight Safety Photo courtesy Rheinmetall Defence Electronics •...
- Page 3 Innovative simulation display solutions Barco is a world leader in the design, development, and manufacture of high- performance, high-quality display systems for simulation applications. Our display systems are used in flight simulators, ship bridge simulators, mission rehearsal simulators, driving simulators, and firearms training simulators.
- Page 4 Proprietary projector development With more than 1000 engineers worldwide and five field laboratories, Barco invests in proprietary simulation dedicated projector development all available projection technologies, including: CRT raster and raster/calligraphic, LCD and DLP™ light valve projection systems, and LCoS (Liquid Crystal on Silicon).
- Page 5 Own manufacturing facilities As a testament to our own ASIC design, thick film, bonding, prints, coil winding and fibre optics capabilities, Barco is known worldwide for developing and manufacturing unique projection platforms with the highest quality standards, ensuring optimum results that are focused on customer needs.
- Page 6 Barco SimCAD™: the all-in-one design and installation tool Design analysis and prediction Using S CAD™, Barco's proprietary simulator design and optimization tool, all display parameters and customer requirements are easily translated into a highly detailed ray- tracing based model. SimCAD™ offers auto-optimization of...
- Page 7 Barco CRT-based projection system. Barco’s ACURAS you to perform fast, accurate, and repeatable brightness and color adjustments to a Barco SIM 6 Ultra II LCD projection system. Barco’s AutoAlign suite of products are designed to work hand in hand with Barco’s xRACU...
- Page 8 A certified project manager works with you and oversees the production, final installation, and on-site training of the project. All details of the project are checked in order to maintain Barco's high benchmark for quality in out- standing individual turnkey solu- tions.
- Page 9 Priority Care, Premium Care or Premium Plus Care. Training on site The staff operating the system receives a comprehensive training that enables them to use the system at its full potential. Barco offers a choice from simple to extensive training programs.
- Page 10 Since no single projector technology is the best in all circumstances, Barco offers all the major projec- tion technologies available – CRT, LCD, DLP™, and LCoS – each optimized with a broad range of Barco features to fit specific application needs. Color uniformity...
- Page 11 Perfect geometry Image shift and geometric distortion must not be visible over the entire image area. Barco's Digital Waveform generator enables you to eliminate distortion for CRT projectors. Digital control over geometry correction is accomplished with Barco’s exclusive WARP technology on SIM 5R, SIM 6 Ultra II, and SIM 7 projectors.
- Page 12 The delay commonly associated with image processing, makes standard off- the-shelf LCD projectors unfit for full mission rehearsal simulators. Barco LCD projectors provide: • "Zero Delay" through TDR and WARP • Well-established and stable technology •...
- Page 13 Proprietary optimizations for light-valve technology DynaColor™ High-precision digital "color space transformation" eliminates channel- to-channel color variations. Direct control of the primary and secondary colors quarantees accurate color matching and provides maximum addressable color space across the whole dynamic range of the display. A graphical representation of the color triangle provides an excellent visualization of the color corrections being applied.
- Page 14 OSEM for an invisible blend Picture courtesy of Evans & Sutherland TDR: Transport Delay Reduction (for Barco’s SIM 6 Ultra II projector) For simulation applications, it is impera- tive that no processing delay occurs inside the projector. For this purpose,...
- Page 15 Optimizations, making them very flexible to install in the widest range of applications. Barco’s SIM 6 Ultra II provides longer lamp life and reduces operation costs (up to 40% in economy mode) through a unique illumination system based on a...
- Page 16 This remarkable result is achieved by modulation of the signal intensity, combined with gamma correction within the blend zone. Barco’s digital SEMU Advanced now offers a real-time interface, allowing you to set up and adjust blend zones and bows on the fly, combining the known SEMU blend quality with an unprecedented flexibility and ease of use.
- Page 17 909 Electronics chassis with Barco 908 (high-resolution 8") or Barco 909 (high- resolution 9") Split Pack’s Optical Head HUDView HUDV ™ produces clear, bright, high-...
- Page 18 Raster/calligraphic projection for FAA and JAA highest level of certification Barco’s wide range of high-end raster/calligraphic projectors combine raster scan (projection of TV-like images) with calligraphic scan (projection of light points and lines). Calligraphic light points on a simulated runway.
- Page 19 Raster and raster/calligraphic projection Genesis series Barco’s Genesis series provide the ultimate in digital, high-performance raster/calligraphic projection. Genesis series delivers a level of performance dependability unmatched by any other system. 2X increase in pixel count translates into increased calligraphic performance in day/night/dusk/NVG modes.
-
Page 20: System Solutions
The information and data given are typical for the equipment described. However any individual item is subject to change without any notice. The latest version of this product sheet can be found on www.barco.com/simulation DLP is a trademark of Texas Instruments.
