Using the Controller
Once a valid password has been entered, the controller
allows further changes and access without requiring the user
to enter a password until either the password timer expires
or a different password is entered. The default value for this
password timer is 10 minutes.
Navigation Mode
When the navigation wheel is turned clockwise, the cursor
moves to the next line (down) on the page. When the wheel is
turned counterclockwise the cursor moves to the previous line
(up) on the page. The faster the wheel is turned the faster the
cursor moves. Pushing the wheel acts as an "Enter" button.
When the Back button is pressed, the display reverts back to
the previously displayed page. If the Back button is repeatedly
pressed, the display continues to revert one page back along
the current navigation path until the "main menu" is reached.
When the Menu (Home) button is pressed the display reverts
to the "main page."
When the Alarm button is depressed, the Alarm Lists menu is
displayed.
Edit Mode
The Edit Mode is entered by pressing the navigation wheel
while the cursor is pointing to a line containing an editable field.
Once in the Edit Mode, pressing the wheel again causes the
editable field to be highlighted. Turning the wheel clockwise
while the editable field is highlighted causes the value to be
increased. Turning the wheel counterclockwise while the
editable field is highlighted causes the value to be decreased.
The faster the wheel is turned the faster the value is increased
or decreased. Pressing the wheel again will cause the new
value to be saved and the keypad/display to leave the Edit
Mode and return to Navigation Mode.

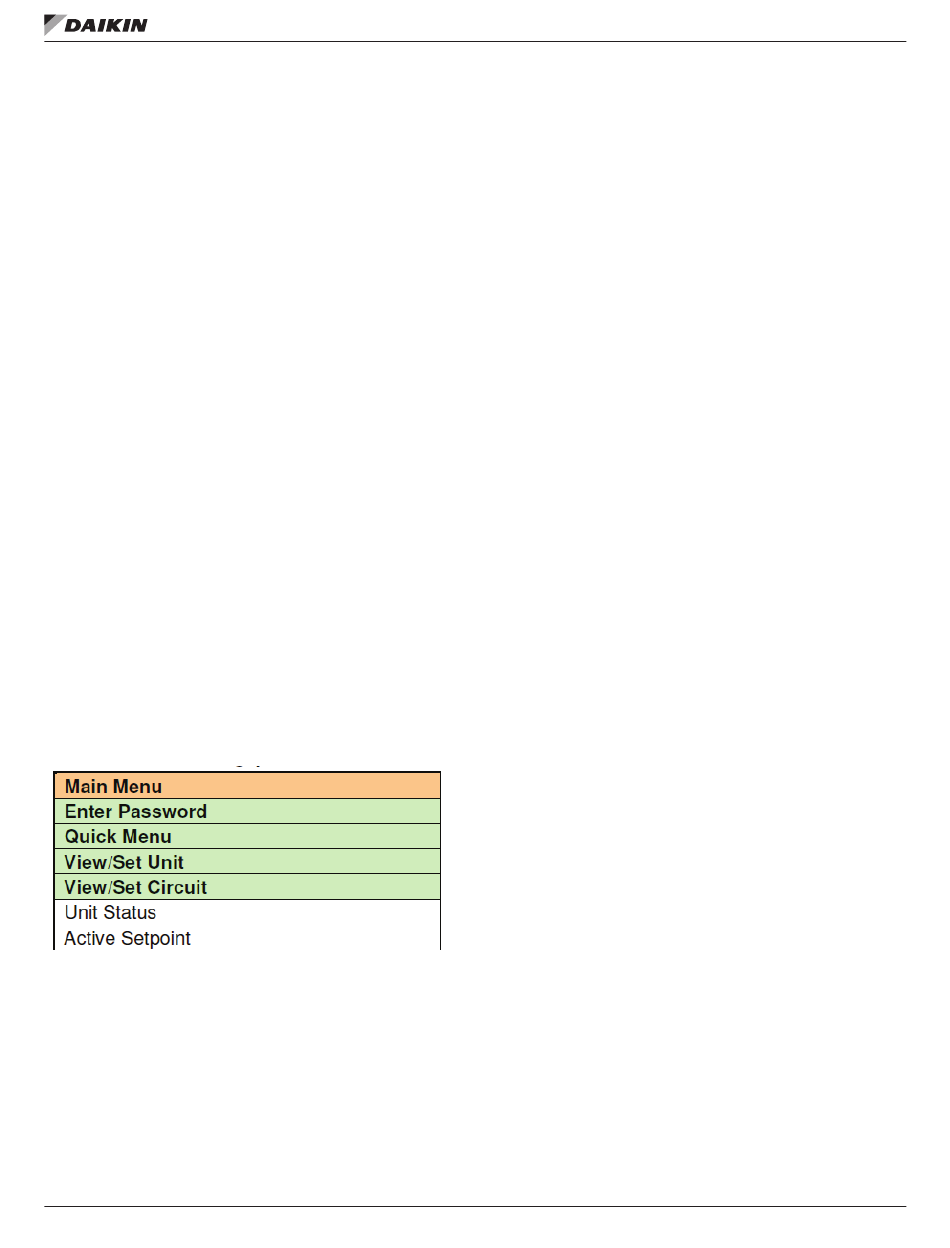

Figure 80: Example of Screen Menu
