Quick Start Guide
Smoke alarm device
Model Name: Ajax FireProtect
Wireless smoke and heat detector
FireProtect is a wireless smoke and inflammation detector
furnished with a buzzer. It is designed for use indoors and
can operate up to 4 years from the bundled batteries.
FireProtect is connected to the Ajax security system via
the protected Jeweller protocol, with an effective
communication range of up to 1,300 meters without
obstacles. It can operate off-line.
IMPORTANT: This Quick Start Guide contains general
information about the FireProtect. Before using the device,
we recommend to reviewing the User Manual on the website:
ajax.systems/support/devices/fireprotect

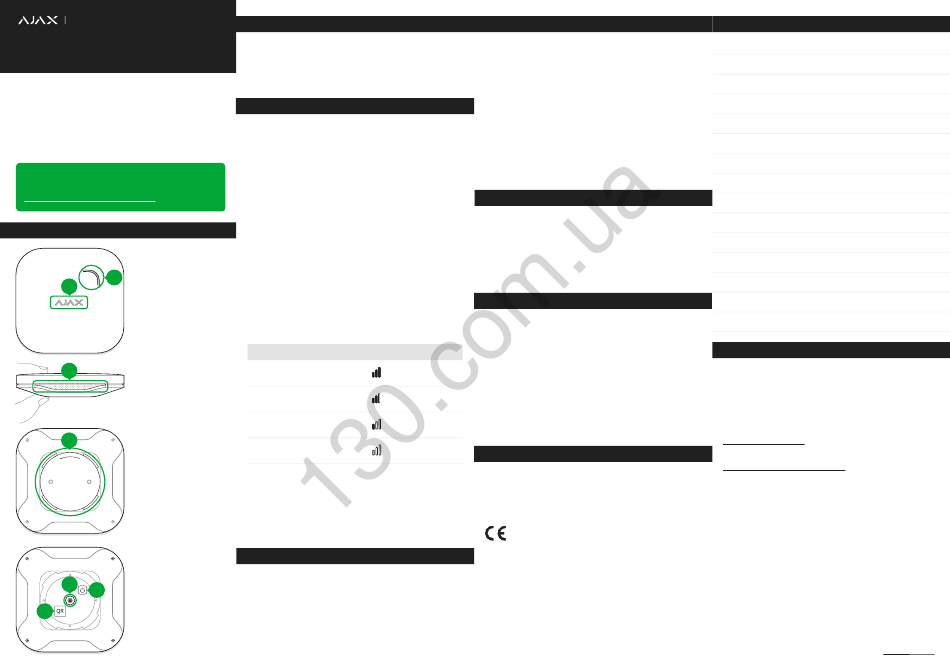

FUNCTIONAL ELEMENTS
1
1 - Siren hole.
2
2 - Light indicator combined
with the touch button
"Test".
3
3 - Smoke chamber window,
temperature detector
behind the net.
4
4 - SmartBracket
attachment panel.
6 5 - On/off button.
5
6 - Tamper button.
7 - QR code.
7
EN
FUNCTIONAL ELEMENTS
To switch on the detector - press the on/off button for 3
seconds. The device is switched off in the same manner.
E
To switch off the siren sound, press on the logo or eliminate
the cause of the actuated alarm.
LOCATION SELECTION
When selecting a FireProtect installation location, take into
account the device remoteness from the hub and presence of
any objects hindering the radio signal transmission.
The detector should be installed at the ceiling in the highest
point where hot air and smoke will concentrate.
Do not install the detector:
1. Outside the premises (outdoors);
2. In places with fast air circulation (near a ceiling fan, air
conditioner, air exhaust, open doors and windows);
3. Nearby any metal objects and mirrors causing radio signal
attenuation or screening it;
4. In room with the humidity exceeding the allowable value.
Prior to the attachment of the detector to a surface with
screws, please perform signal level test in the Ajax Security
System application for at least a minute. This will
demonstrate communication quality between the detector
and the hub and ensures proper installation place selection.
Status indicator
Lights with interruptions
once every 1.5 seconds
Blinks 5 times per second
Blinks 2 times per second
Lights up for a short time
once every 1.5 seconds
Prior to installing FireProtect, check the smoke detector.
Switch on the device and press the touch button / logo up to 6
seconds - the detector will test the smoke chamber with
electronic simulation of smoke presence and in case of
successful test will switch on the siren for 5 seconds. If you
didn't hear the sound - do not use the detector.
COMPLETE SET
1. FireProtect.
2. Batteries CR2 (pre-installed) - 2 pcs.
3. Battery CR2032 (pre-installed) - 1 pcs.
4. Installation kit.
5. Quick Start Guide.
CONNECTING AND SETTING UP
The detector is connected to the hub and set up via the Ajax
Security system mobile application. To establish connection
please locate the detector and the hub within the
communication range and follow the device adding
procedure.
To connect the detector to a third party security central unit
using the Ajax uartBridge or Ajax ocBridge Plus integration
module, follow the recommendations in the user manual of
the respective device.
You can disable actuation of the alarm in the FireProtect
settings in case of the exceeded temperature threshold
(above 60°С) and fasttemperature increase in the room.
MOUNTING THE DEVICE
1. Fix the SmartBracket panel on the surface using the
bundled screws or other no less reliable attachment
hardware.
2. Put the detector on the panel - single blink of the indicator
will confirm that the tamper has been actuated. Turn the
detector clockwise to fix it in SmartBracket.
AUTONOMOUS USE
The FireProtect detector can be used autonomously, without
connecting to a security system.
1. Switch on the detector and test the smoke chamber.
Signal level
2. Determine the optimal location.
Excellent
signal level
3. Install FireProtect on the surface.
Good
In case of the autonomous use, the detector will notify of the
signal level
detected fire/smoke, as well as any events insistent for the
user with a sound signal and light of the logo. For more
Bad
signal level information, please see the User Manual.
No signal
IMPORTANT INFОRMATION
This product can be used across all EU member states.
This device in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU. All
essential radio test suites have been carried out.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS
Autogoods "130"
TECH SPECS
Photoelectric sensor
Smoke sensitive element
Temperature sensitive
Thermocouple
element
Sound notification
85 dB at a distance of 1 m
volume
Alarm threshold
at the temperature
Anti-tamper switch
868.0-868.6 mHz
Frequency band
Maximum RF output power Up to 20 mW
Modulation
Up to 1,300 m
Radio signal
(any obstacles absent)
2 x CR2 (main batteries),
Power supply
CR2032 (backup battery), 3 V
Battery life Up to 4 years
Operating temperature
From 0°С to +65°С
range
Operating humidity
Overall dimensions 132 х 132 x 31 mm
Weight
WARRANTY
Warranty for the Ajax Systems Inc. devices is valid for 2
years after the purchase and does not apply to the supplied
battery. If the device does not work correctly, you should first
contact the support service—in half of the cases, technical
issues can be solved remotely!
The full text of the warranty is available on the website:
ajax.systems/warranty
User Agreement:
ajax.systems/end-user-agreement
Technical support:
support@ajax.systems
Manufacturer: Research and Production Enterprise "Ajax" LLC
Address: Sklyarenko 5, Kyiv, 04073, Ukraine
By request of Ajax Systems Inc.
www.ajax.systems
60°С
Yes
FM
Up to 80%
216 g
