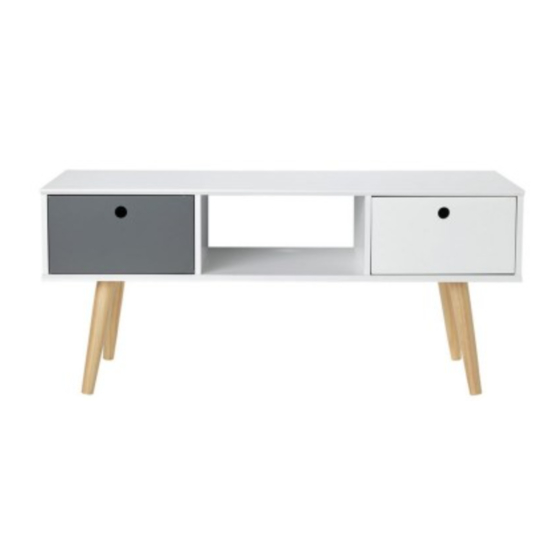

Alto TV Unit
Assembly lnstructions - Please keep for future reference
404/3733
hygena
Dimensions
Width - 120cm
Depth - 40cm
Height - 53.2cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Issue 1-20-05-15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Alto hygena 404/3733
Summary of Contents for Argos Alto hygena 404/3733
- Page 1 Alto TV Unit Assembly lnstructions - Please keep for future reference 404/3733 hygena Dimensions Width - 120cm Depth - 40cm Height - 53.2cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-20-05-15...
- Page 2 Safety and Care Advice Assemble the item as close Check you have all the We do not components and tools listed on to its final position (in the same recommend the pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 underside inside Top panel Side panel (right) (120x40x1.5cm) (38x20x1.5cm) underside inside Base panel Side panel (left) (120x40x1.5cm) (38x20x1.5cm) Back panel x 2 Leg x 4 Divider (left) (38.7x20.7x0.3cm) (4.5/3x3cm) -
Page 4: Tools Required
Components - Fittings 0345 6400 800 Wooden dowel x 16 (6X30mm) Small locking nut x 8 Metal dowel x 24 Large locking nut x 16 Screw x 16 (3x12mm) Drawer runner x 2 sets (L300mm) Screw x 20 (3x12mm) Wood screw x 8 (4x30mm) Metal bracket x 4 Tools required Phillips screwdriver... - Page 5 Assembly Instructions Preparing panels Place top panel , base panel , and drawer fronts flat onto the floor with the fixing holes facing up. Screw metal dowels into each panel as shown. Screw metal dowels as far as shown. Do not overtighten. grooves aligned Assembling panels Insert wood dowels...
- Page 6 Assembly Instructions Assembling back panel Carefully slide back panels into the grooves between panels as shown. Assembling top panel Insert wood dowels into the holes in the top edges of side panels dividers With help, carefully locate top panel into position as shown.
- Page 7 Assembly Instructions Assembling drawer runners Attach one half of drawer runners onto side panels and dividers as shown. Secure with screws Note: the correct fixing hole positions are shown on the drawings. Preparing base With help, carefully turn the unit onto it’s back. Warning: The unit is heavy.
- Page 8 Assembly Instructions Attaching legs Screw legs onto metal brackets until they are secure. Do not overtighten. Assembling drawers a: Locate drawer side panels onto drawer front Note: Ensure all grooves are correctly located at the bottom. Insert small locking nuts into drawer side panels .
- Page 9 Assembly Instructions Locating drawers With help, turn the whole unit upright. Warning: The unit is heavy. Lift with care. Carefully slide drawers into position as shown. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group.
