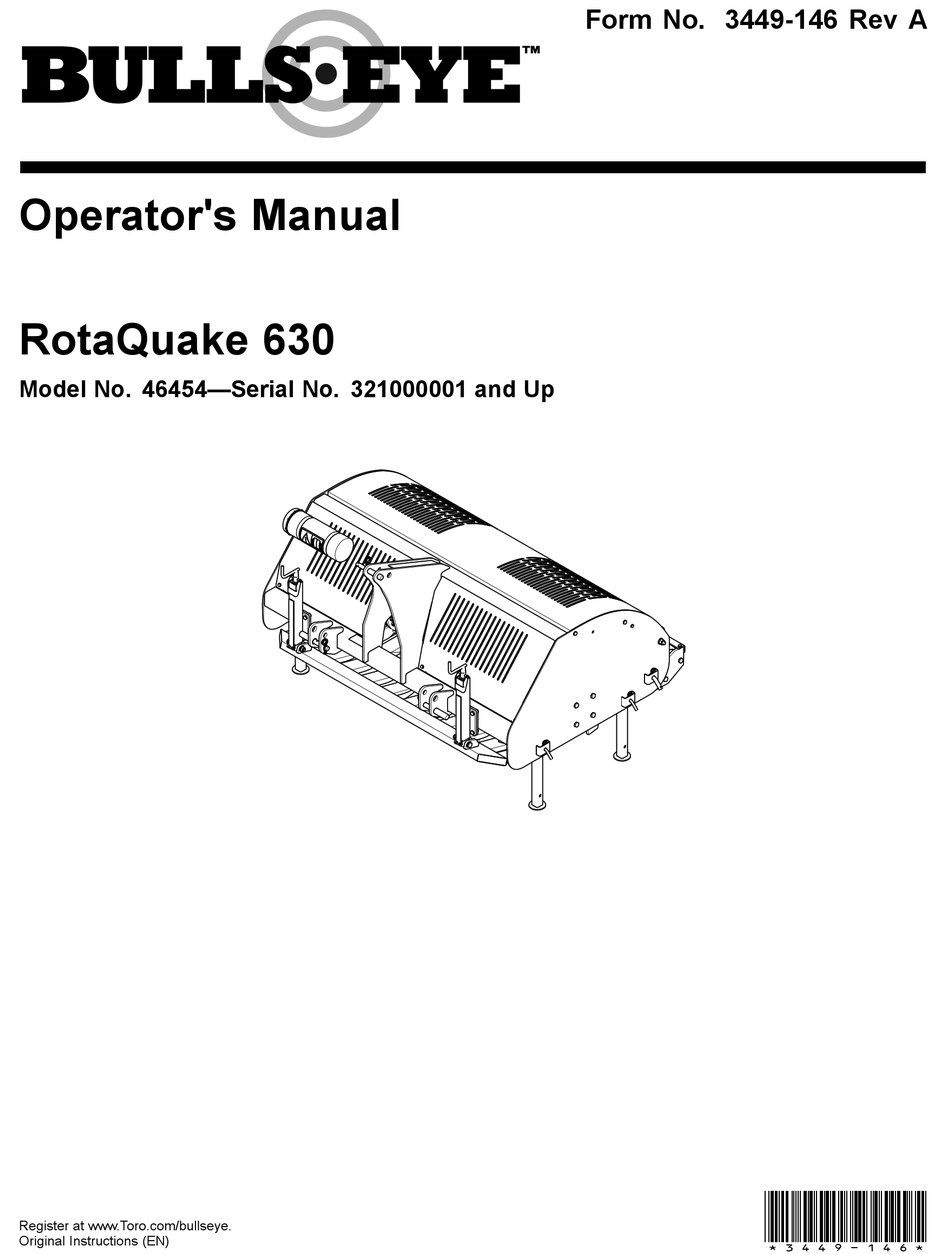

- Page 1 Form No. 3449-146 Rev A Operator's Manual RotaQuake 630 Model No. 46454—Serial No. 321000001 and Up *3449-146* Register at www.Toro.com/bullseye. Original Instructions (EN)
-
Page 2: Table Of Contents
2), which signals a hazard that may cause serious operating the product properly and safely. injury or death if you do not follow the recommended Visit www.Toro.com/Bullseye for product safety and precautions. operation training materials, accessory information, help finding a dealer, or to register your product. -
Page 3: Safety
Safety Specifications ............ 9 Before Operation ..........10 Before Operation Safety ........10 General Safety Understanding the Traction Unit Controls ............10 Connecting to a 3-Point Hitch......10 This product is capable of causing personal injury. Connecting the PTO Driveshaft ......12 Always follow all safety instructions to avoid serious Adjusting the Operating Depth ...... -
Page 4: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal105-0698 105-0698 1. Warning—read the Operator’s Manual. decal133-8061 133-8061 decal144-8338 144-8338 1. - Page 5 decal144-8339 144-8339 1. Entanglement 2. Warning—read the hazard—keep away from Operator’s Manual. moving parts.
-
Page 6: Setup
Setup Removing the Attachment from the Pallet No Parts Required Procedure The attachment is shipped vertically on the pallet. Perform the following instructions to remove it from the pallet. DANGER The attachment is unstable and could swing when lifted, injuring anyone beneath it or around it. •... -
Page 7: Installing The Knives And Gearbox Breather
Installing the Knives and Gearbox Breather No Parts Required Procedure Install the attachment to a traction unit; refer to Connecting to a 3-Point Hitch (page 10) Connecting the PTO Driveshaft (page 12). Raise the attachment off the ground. Perform the following steps to shut off the traction unit: Ensure that the traction unit is parked on a level surface. -
Page 8: Inspecting The Machine
Inspecting the Machine No Parts Required Checking the Traction Unit Requirements g349218 Figure 5 1. Breather 2. Gearbox Close the hatch and secure it with the previously removed hardware. g007332 Figure 6 3-Point Hitch and PTO Components 1. Lower link arm 3. -
Page 9: Product Overview
Checking the Ballast Product Overview Requirements Specifications WARNING Traction Unit Requirements Mounting the machine to the rear of the traction unit decreases the weight on its front Minimum lifting capacity 750 kg (1,654 lbs) axle. Recommended traction unit 22 to 34 kW (30 to 45 hp) output-power rating Failure to add required ballast may result in an accident and severe injury or death. -
Page 10: Before Operation
Operation Important: Refer to the traction unit Operator's Manual for operating instructions. Before Operation Connecting to a 3-Point Hitch Before Operation Safety • Never allow children or untrained people to Connecting the Lower Link Arms operate or service the machine. Local regulations may restrict the age of the operator. - Page 11 g347650 Figure 9 1. Upper link arm 3. Hairpin cotter 2. Jam nut 4. Link pin g347649 Figure 8 Grease the threaded steel upper link arm tubes. 1. Lower link arm (2) 2. Hitch pin and hairpin cotter Rotate the upper link arm to tighten or loosen the link as needed.
-
Page 12: Connecting The Pto Driveshaft
Connecting the PTO Driveshaft Adjusting the PTO Driveshaft Length Adjust the length of the PTO driveshaft whenever you install the attachment to a different traction unit. Important: If the length of PTO is not adjusted properly, using the attachment can damage the traction unit or the attachment. - Page 13 g347459 Figure 15 Assemble the outer PTO driveshaft section to the PTO shaft of the traction unit (Figure 12). Raise the attachment to the position where the traction-unit PTO output shaft and gearbox input shaft are furthest apart (Figure 16). Hold the driveshaft sections parallel to each other and check to ensure that they overlap 150 g347524...
- Page 14 Installing the PTO Driveshaft Important: Refer to the PTO driveshaft owner’s manual for additional operating and safety information. CAUTION Operating the machine without the PTO guards and shields may cause injury or death. Keep all PTO guards and shields in place. Important: When connecting the PTO, ensure that the attachment is not lifted higher than...
-
Page 15: Adjusting The Operating Depth
Verify that the telescoping tube has a minimum of 150 mm (6 inches) overlap when the attachment is raised to the maximum height. g345541 Figure 18 1. Gearbox input shaft 4. Bolt 2. Nut 5. PTO driveshaft 3. PTO shaft coupler Assemble the PTO driveshaft to the PTO output shaft of the traction unit. -
Page 16: Practicing The Operating Procedures
Practicing the Operating Procedures Before using the attachment, find a clear area and practice operating the traction unit with the attachment installed. Important: If there are sprinkler heads, electrical or communication lines, or other obstructions in the area being aerated, mark these locations to ensure that these items are not damaged during operation. -
Page 17: Slope Safety
causes distractions; otherwise, injury or property damage some parts if not performed with special damage may occur. tools by trained technicians. • • Do not operate the machine when tired, ill, or Do not operate the attachment if the PTO or under the influence of alcohol or drugs. -
Page 18: Transporting The Attachment
Operating the Attachment • If possible, keep the attachment lowered to the ground while operating on slopes. Raising the Inspect the attachment to ensure that all parts attachment while operating on slopes can cause are properly functioning. the machine to become unstable. Raise the attachment and drive to the location •... -
Page 19: Removing The Attachment
• Keep all parts of the machine in good working condition and all hardware tightened. • Replace all worn, damaged, or missing decals. Removing the Attachment Park the machine on a level surface with the attachment in the raised position, engage the parking brake, shut off the engine, and remove the key from the traction unit. - Page 20 g347649 g347648 Figure 27 Figure 28 1. Lower link arm (2) 2. Hitch pin and hairpin cotter 1. Hairpin cotter (3) 2. Hitch pin (3) Start the traction unit and drive it away from the attachment. Install the hairpin cotters to the hitch pins (Figure 28).
-
Page 21: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the gearbox oil level. • Grease the PTO shaft. Before each use or daily • Wash the attachment. • Check for loose fasteners and tighten them as necessary. • Check the gearbox for oil leakage. Every 50 hours •... -
Page 22: Checking The Gearbox Oil Level
Checking the Gearbox Oil Level Service Interval: Before each use or daily Every 50 hours Gearbox-oil specification: SAE 90 Open the hatch; refer to Opening the Hatch g007309 Figure 31 (page 21). Check the oil level in the gearbox. Grease the cylinders. The gearbox oil level should be at or above the gauge centerline (Figure... -
Page 23: Storage
Storage Storage Safety • Before adjusting, cleaning, storing, or repairing the attachment, park the it on a level surface; engage the parking brake of the traction unit; shut off the engine; remove the key; and wait for all movement to stop before leaving the traction unit. •... -
Page 24: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action Too much damage to the soil to be treated. 1. Knives are damaged. 1. Try aligning the knives by straightening them using a hammer and anvil. 2. Knives are crooked. 2. Align the knives. Mount new ones. 3. - Page 25 Notes:...
- Page 26 Notes:...
- Page 27 Warranty Statement One-Year Limited Warranty Conditions and Products Covered Parts Your Bullseye product (“Product”) is warranted to be free from defects in Parts scheduled for replacement, as required maintenance, are covered for materials or workmanship for 1 year. Where a warrantable condition exists, the same warranty period as the product warranty.
