CERIO Corporation

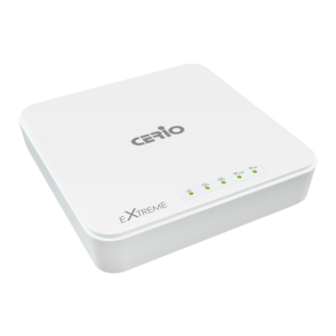

CW-400NAC
eXtreme Power AC1200 2.4GHz / 5GHz 2x2 Ceiling / Wall PoE
Access Point ( 800mW )

User Manual

V1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW-400NAC and is the answer not in the manual?

Questions and answers

Related Manuals for Cerio CW-400NAC

Summary of Contents for Cerio CW-400NAC

  • Page 1: User Manual

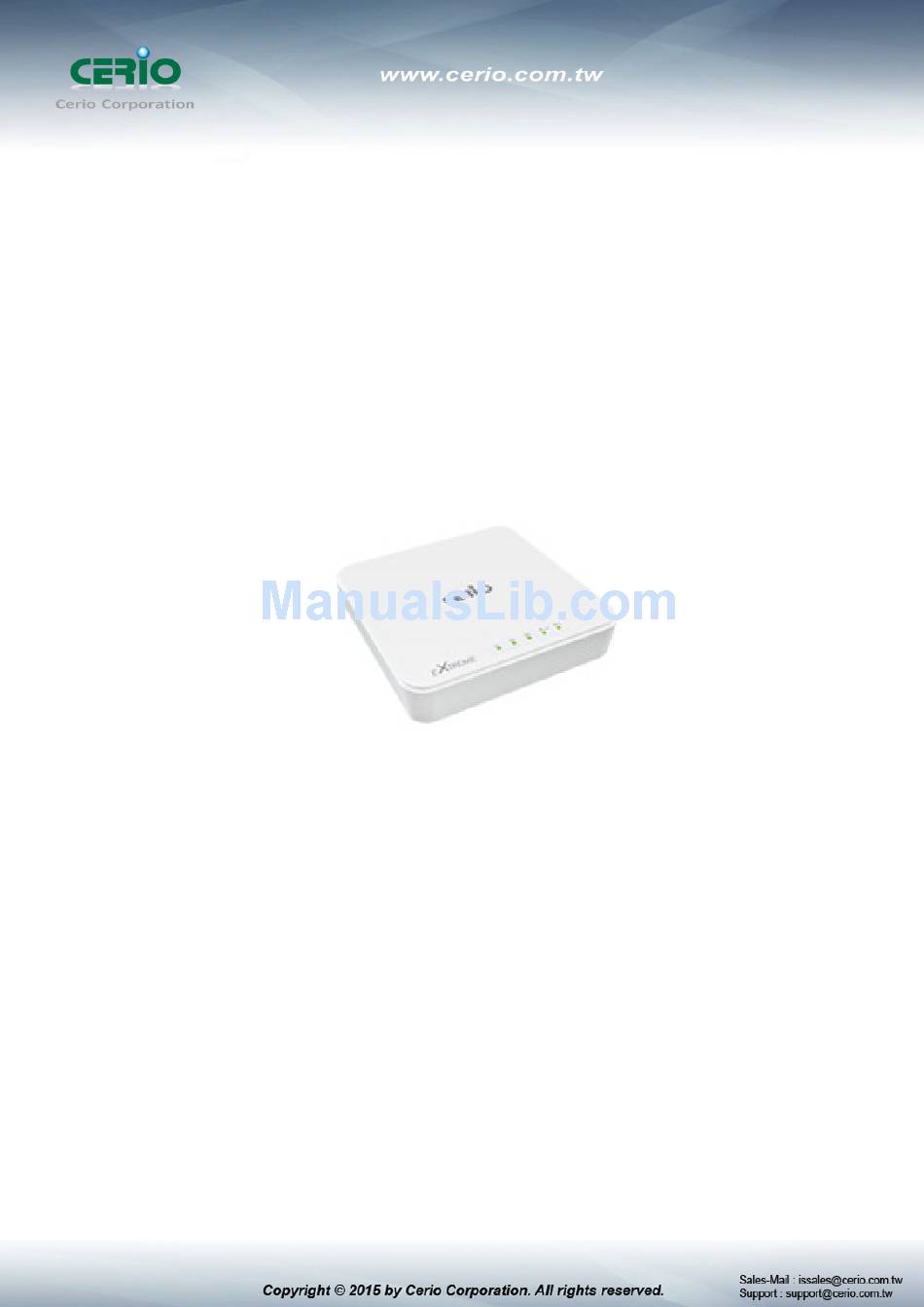

    CERIO Corporation CW-400NAC eXtreme Power AC1200 2.4GHz / 5GHz 2x2 Ceiling / Wall PoE Access Point ( 800mW ) User Manual V1.0a...
