Summary of Contents for AVT MAGIC ACX Dante WAN

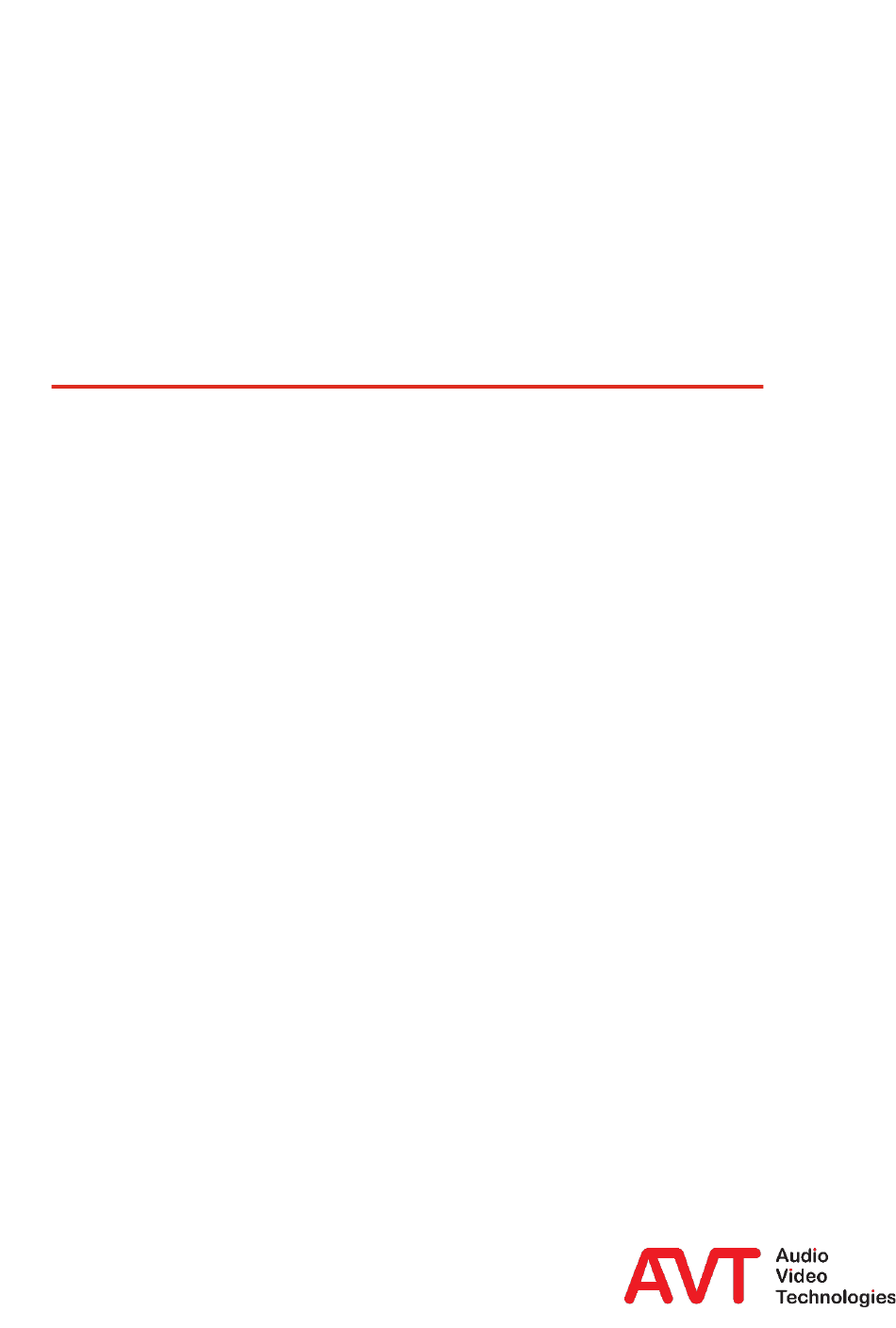

- Page 1 MAGIC ACX Dante WAN Bridge Hardware Manual...
- Page 2 90411 Nürnberg GERMANY Phone +49-911-5271-0 Telefax +49-911-5271-100 © AVT Audio Video Technologies GmbH All Rights reserved. Reproduction in whole or in parts is prohibited without the written consent of AVT GmbH. Subject to changes. Version: 1.000 Release date: January 2022...
-
Page 3: Table Of Contents
INDEX Introduction ....................... 4 Conventions ....................5 Safety ......................5 General safety requirements ................ 6 Construction ....................7 Functionality ....................8 Putting The MAGIC ACX into operation ............. 9 Mounting ...................... 9 Connection to the mains voltage ..............10 Operational elements at the front side ............10 Front status LEDs.................. -
Page 4: Introduction
INTRODUCTION The MAGIC ACX Dante™ WAN Bridge system enables the transmission of up to 32 uncompressed audio signals via wide area networks (WAN). Audio input/output is provided by the integrated 32-channel Dante™ interface, which has redundant GbE interfaces and supports AES67. The convenient Windows PC software provides management and visual monitoring of up to 10 systems. -
Page 5: Conventions
Conventions In this manual the following conventions are used as text markers: The TIP symbol marks information which facilitates the operation of the system in its daily use. The Note symbol marks general notes to observe. The Attention symbol marks very important advice that is absolutely to observe. In case of non-observance malfunctions and even system errors are possible. -
Page 6: General Safety Requirements
General safety requirements To keep the technically unavoidable residual risk to a minimum, it is absolutely necessary to observe the following rules: • Transport, storage, and operation of the unit must be under the permissible conditions only. • Installation, configuration, and disassembly must be carried out only by trained personal based on the respective manual. -
Page 7: Construction
Construction The MAGIC ACX can be controlled via the front keypad and the graphic display. Five LEDs give information about the system status and the audio transmission. On the back there are connectors for • Power cord • Earthing • 2x 100 Mbit/s Ethernet interface for control and audio transmission •... -
Page 8: Functionality
Functionality The MAGIC ACX receives audio signals via the Dante network. A configurable number of audio channels is multiplexed into one IP stream and transmitted via Ethernet to the remote MAGIC ACX. The receiver feeds the audio channels into the local Dante network. -
Page 9: Putting The Magic Acx Into Operation
PUTTING THE MAGIC ACX INTO OPERATION Mounting With its dimensions of (width x height x depth) 434 mm x 44.5 mm (1U) x 270 mm the MAGIC ACX system can either be used as desktop device or mounted into a 19- inch rack. -
Page 10: Connection To The Mains Voltage
Connection to the mains voltage MAGIC ACX must be earthed. The earthing can be carried out via the earthing screw on the back side of the unit. MAGIC ACX may only be used with the included power cable. The power cable must not be replaced by an inadequately dimensioned power cable. -
Page 11: Wiring
Wiring The figure below shows the systems’ wiring. The system offers two Ethernet interfaces on the base board for audio transmission and control via PC software. The Ethernet interfaces P and S on the Dante module are used to connect the MAGIC ACX to the primary (P) and secondary (S) Dante network. -
Page 13: Interfaces
INTERFACES Ethernet interfaces LAN 1 / LAN 2 The LAN 1 and LAN 2 interfaces can be used for audio transmission, for system control via Windows PC management software and for integration into a network management system via SNMP. Pin assignment: Ethernet Interfaces LAN 1 / LAN 2 Socket: RJ-45 Signal Electrical characteristics... -
Page 14: Ethernet Interfaces Dante
Ethernet interfaces Dante The Ethernet interfaces P and S on the Dante module are used to connect the device to a Dante network. Pin assignment: Ethernet Interfaces Dante Socket: RJ-45 Signal Electrical characteristics RX/TX A P Pair A + Recommendation: IEEE 802.3/Ethernet RX/TX A N Pair A - Data rate (Auto neg.): 100/1000 Mbit/s... -
Page 15: Ttl/Relay Interface
TTL/Relay interface The TTL/relay interface is realised as a 25-pin socket. It provides eight TTL inputs/outputs as well as eight relay contacts. Pin assignment: TTL/Relay interface Socket: SUB-D 25-pin Signal Electrical characteristics TTL 1 input/output TTL 2 input/output TTL 3 input/output TTL 4 input/output... -
Page 16: Power Supply
100 V – 230 V AC, 50/60 Hz, auto adjusting, max. 30 W 3.4.2 Optional DC power supply socket Only use the +5 V DC power supply provided by AVT. Pin assignment: 5 V power supply socket Socket: KYCON KPJ-S3... -
Page 17: Technical Data
TECHNICAL DATA Coding algorithms: • PCM 16/24 Bit Line interfaces: • 2x Ethernet 10/100 Mbit/s Control interfaces: • 2x Ethernet 10/100 Mbit/s • 8x Relays • 8x TTL Input/Output Audio interfaces: • Dante module 1x Primary 1 GbE 1x Secondary 1 GbE 32x32 channels AES67 compatible Sampling rate:... - Page 18 Display: • Graphical, resolution 160 x 32 pixels • Illuminated (can be switched off) Power supply: • Integrated power supply: 100 V – 250 V Power max. 30 W • Redundant external power supply (opt.): +5 V Power max. 30 W Power consumption: •...
-
Page 19: General
GENERAL Order numbers MAGIC ACX Dante WAN Bridge 803230 Redundant Power Supply Upgrade 802035 5V Tabletop PSU Scope of delivery • MAGIC ACX Dante WAN Bridge 1 x power cable 4 x Self-adhesive feet 19’’ Mounting brackets Declaration of conformity... -
Page 20: Service Information
If your unit is defective, please contact us before sending in the device. To send in the MAGIC ACX please fill in the included Service Request and send the unit to the following address: AVT Audio Video Technologies GmbH - Repairs - Nordostpark 91 90411 NÜRNBERG... -
Page 21: Weee (Directive On Waste Electrical And Electronic Equipment)
The device contains valuable raw materials that can be recycled. For proper recycling, send the device to us: AVT Audio Video Technologies GmbH - Recycling - Nordostpark 91 90411 NÜRNBERG GERMANY WEEE Reg. - Page 23 Supplier’s address: 90411 Nürnberg Germany erklärt, dass das Produkt declares, that the product Produktname(n): MAGIC ACX Dante WAN Bridge 803230 Product name(s): mit den Vorschriften folgender Europäischer Richtlinien übereinstimmt: conforms to the standards of the following European directives: Elektromagnetische Verträglichkeit (EMV)
