AVT MAGIC AE4 Quick Manual

Dab/dab+ audio encoder
Hide thumbs Also See for MAGIC AE4:
Table of Contents

Advertisement

Quick Links

Download this manual
MAGIC AE4 DAB/DAB+

Quick Guide

Version V1.0 (25.10.2018)
1
© AVT Audio Video Technologies GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGIC AE4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVT MAGIC AE4

Summary of Contents for AVT MAGIC AE4

  • Page 1: Quick Guide

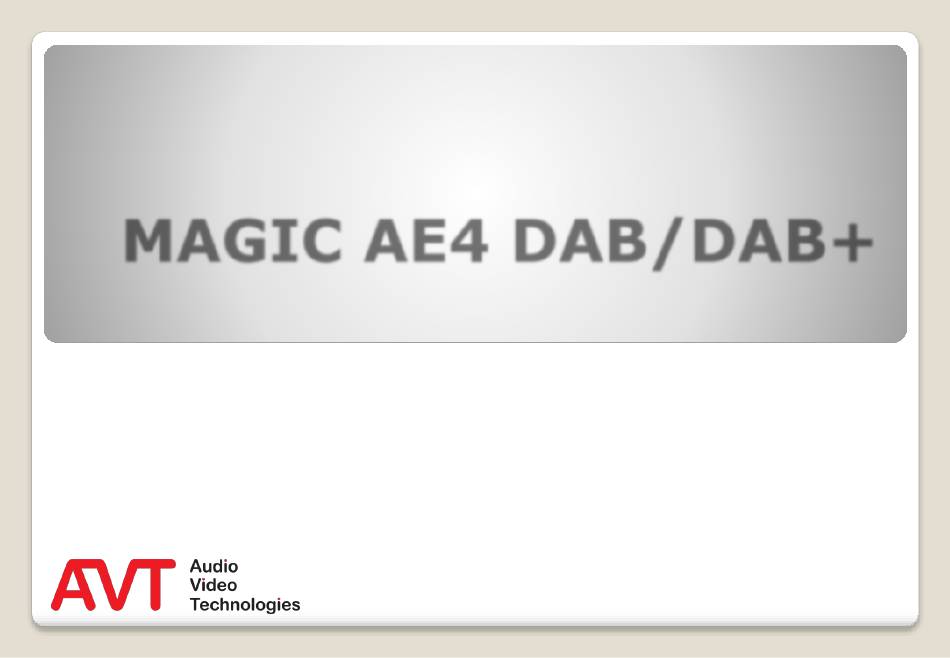

    MAGIC AE4 DAB/DAB+ Quick Guide Version V1.0 (25.10.2018) © AVT Audio Video Technologies GmbH...

  • Page 2: Front View

     ▪ DSP-based DAB/DAB+ Audio Encoder ▪ Up to four DAB/DAB+ Audio Encoder ▪ Full 19” 1U housing with integrated AC power supply ▪ 19” mounting angels ▪ Without fan, noiseless operation Front View © AVT Audio Video Technologies GmbH...

  • Page 3: Rear View

    PAD interface: Dynamic Label and Slide Show via FTP ▪ 4 x Digital AES/EBU Audio input/output  Support PTy and Traffic Announcement via  ▪ DIGITAL AES 1-2 and DIGITAL AES 3-4 UECP No fan  Rear View © AVT Audio Video Technologies GmbH...
  • Page 4 SNMP v1c, v2c  Special functions ▪ Integrated Audio router  Configuration & Control ▪ No fan ▪ Configuration & Control via HTML5 Webbrowser ▪ Power consumption typically 17 W ▪ Synchronisation via NTP Functions © AVT Audio Video Technologies GmbH...
  • Page 5 (TTL input) of the ID4: 3 C4: 6004 Encoders. C: Control Port A: Audio Port E: EDI Port Remote configuration of the  Encoder data rate and data service from MAGIC DABMUX Go RF. Interconnection Encoder/Multiplexer © AVT Audio Video Technologies GmbH...
  • Page 6 MAGIC AE4 DAB/DAB+ Configuration © AVT Audio Video Technologies GmbH...

  • Page 7: Main Panel

    Bitrate: Total data rate (Audio + PAD) ▪ Sampling frequency ▪ PAD Bitrate ▪ Audio level L and R Via the button “Configure” all  parameters of the encoder can be configured Main Panel © AVT Audio Video Technologies GmbH...

  • Page 8: Menu Structure

    Administration ▪ Product related details ▪ Reset ▪ Basic settings (Factory setting) ▪ Display of all Alarms and traffic  Extras ▪ System Monitor About  ▪ Software Version ▪ IP addresses Menu Structure © AVT Audio Video Technologies GmbH...

  • Page 9: Encoder Configuration - Audio

    Control Port and for the UDP Outputs 1 and 2 the IP addresses and Port addresses Coding Settings  ▪ Selection of DAB or DAB+, Data Rate, Coding Mode and Sampling Rate Encoder Configuration - Audio © AVT Audio Video Technologies GmbH...
  • Page 10 Entering of the display time in seconds ▪ Via button “Open File Manager” the files can be defined Direct FTP  ▪ Direct FTP can be configured in a separate page Encoder Configuration - PAD © AVT Audio Video Technologies GmbH...
  • Page 11 Selection of front display language ▪ Activation of Key Tone for front keypad ▪ Configuration of backlight and Display contrast ▪ System Name can be entered ▪ Administrator password can be entered Configuration Time & System © AVT Audio Video Technologies GmbH...

  • Page 12: Configuration Audio

    Audio outputs ▪ The source for the outputs can be each input (analogue or digital AES/EBU 1 to 4) and the monitoring decoder output ▪ Each output can be configured individually Configuration Audio © AVT Audio Video Technologies GmbH...
  • Page 13 LAN interface FTP Settings  ▪ Selection of FTP Enable ▪ Entering FTP Server IP address and Port address ▪ Entering First Passive Port and Number of Passive Ports Configuration LAN & FTP © AVT Audio Video Technologies GmbH...

  • Page 14: Firmware Download

    Restart Device  ▪ After selecting the “OK” button a reset will be executed ▪ The configuration will not be changed Firmware Download © AVT Audio Video Technologies GmbH...

  • Page 15: Factory Reset

    Monitoring interface is switched to headphone ▪ Encoder 1 to 4  Data Rate: 128kbit/s  Sampling Rate: 48kHz  Mode: Stereo  Audio Enc.1: AES1 ▪ Monitoring Decoder shows status of Encoder 1 Factory Reset © AVT Audio Video Technologies GmbH...

  • Page 16: System Monitor

    System State  ▪ Indication of Temperature, Time, DSP Load and Uptime Network connections  ▪ Details of LAN1 and LAN2 ▪ NTP Server IP address ▪ IP addresses of Connected Clients System Monitor © AVT Audio Video Technologies GmbH...
  • Page 17 Indication of the  Firmware Version AVT`s Post address   Internet: AVT`s home page Support addresses  ▪ Phone number ▪ Email address About © AVT Audio Video Technologies GmbH...
