DMP Electronics 738Zplus Installation Manual

738Zplus Z-WAVE INTERFACE MODULE
Installation Guide

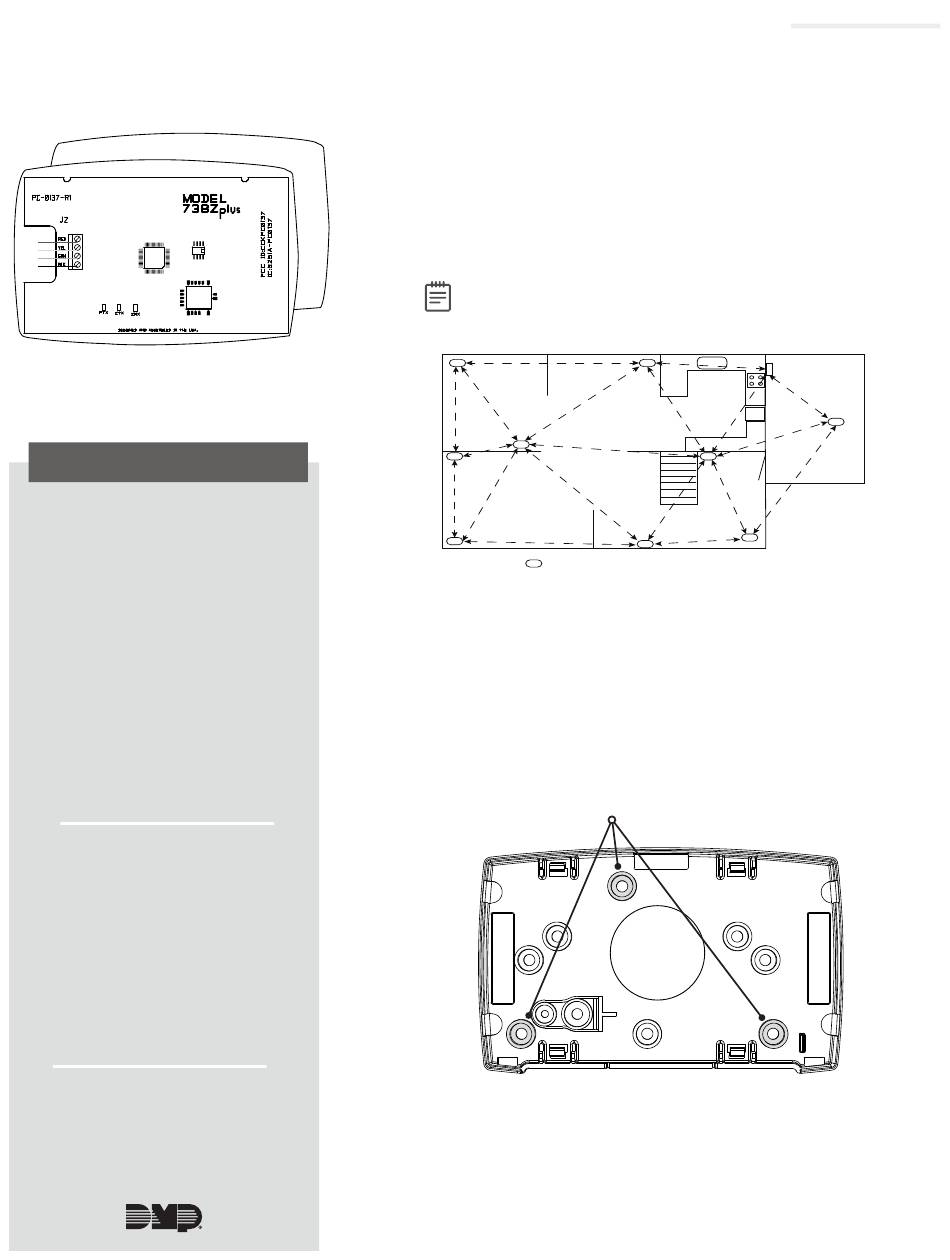

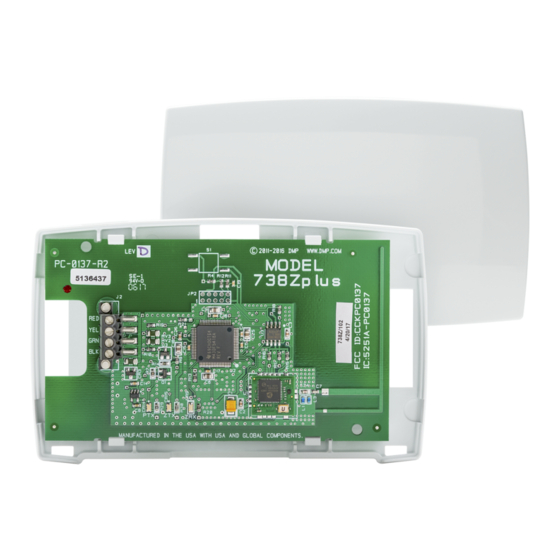

Figure 1: 738Zplus Z-Wave
Interface Module
DESCRIPTION
The 738Zplus Z-Wave Interface
Module allows DMP panels to
communicate with up to 140
Z-Wave or Z-Wave Plus devices,
such as light controls, light bulbs,
door locks, garage door openers,
and thermostats.
The 738Zplus is automatically
recognized by DMP panels, and no
additional programming is required.
Once the 738Zplus is connected to
a DMP panel, users can immediately
begin adding Z-Wave devices to
their system.
Devices can be remotely controlled
from smart phones using the DMP
Virtual Keypad™ App.
Compatibility
• DMP XT30/XT50
Series panels
• DMP XR150/XR550
Series panels
• All Z-Wave and Z-Wave
Plus devices
• See the Compatibility section for
complete information.
What is Included?
• 738Zplus Z-Wave
Interface Module
• Hardware pack
1
SELECT THE LOCATION
Select a central location for the 738Zplus Z-Wave Interface Module.
Keep in mind that at least one Z-Wave Plus device must be within
65 feet of the 738Zplus. Most Z-Wave Plus devices act as repeaters
for the signal to create longer and multiple transmission routes
(battery-powered Z-Wave Plus devices do not repeat signals in
order to extend battery life). See Figure 2.
Note: Place the module away from large, metal objects to
avoid interference with the Z-Wave Plus signal.
Office
Living Room
Figure 2: Example Z-Wave Plus Transmission Routes
2
MOUNT THE 738Zplus
1. With the housing cover off, carefully remove the 738Zplus's
PCB from the housing.
2. Use the supplied screws to secure the 738Zplus housing
against a wall or flat surface. See Figure 3.
Figure 3: 738Zplus Housing with Mounting Holes
Dining
Kitchen
Foyer
= Z-Wave Plus Device
Mounting Holes
Control
Panel with
738Zplus
Garage
