Summary of Contents for Furniture of America CM-BK932

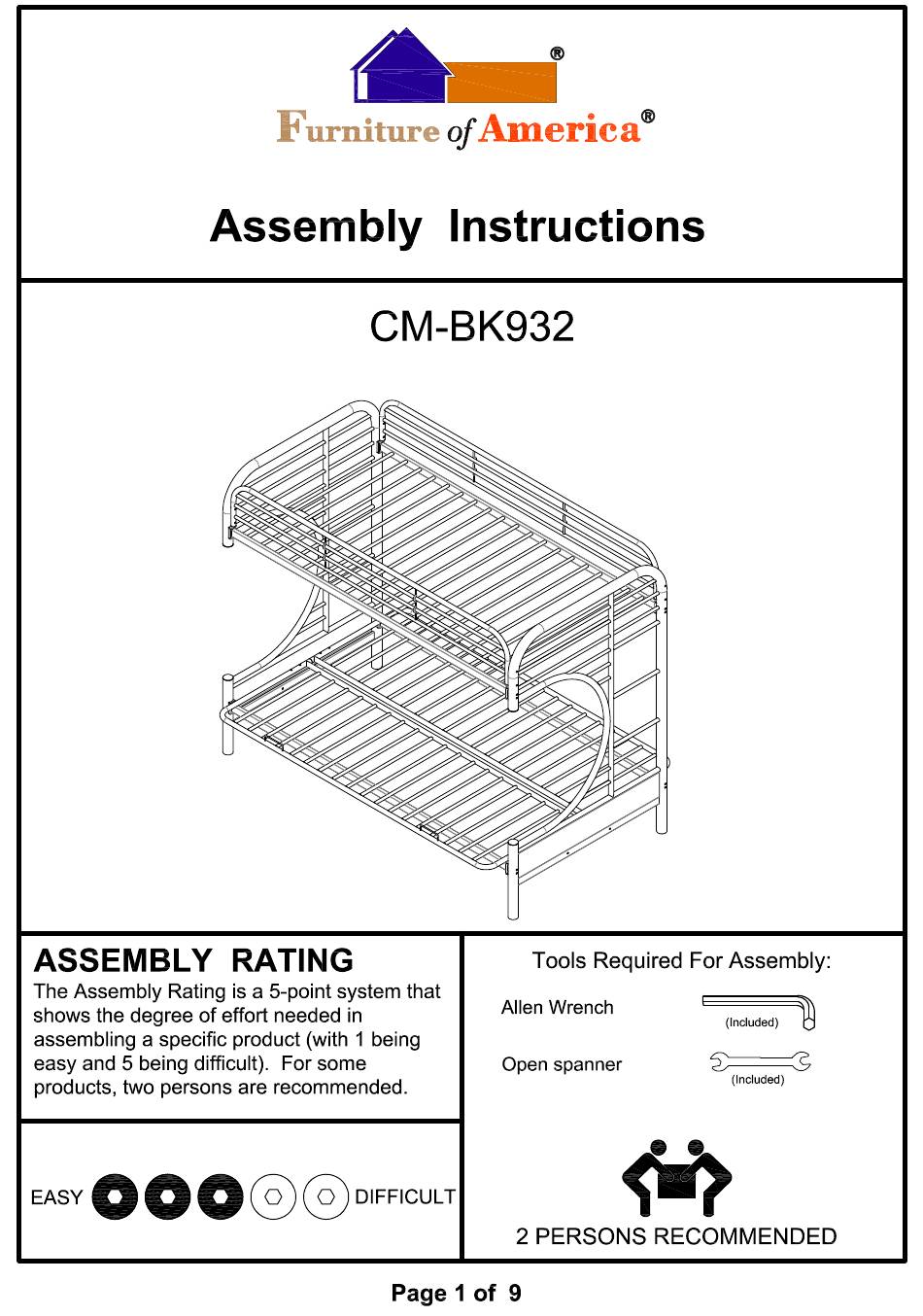

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 18-09-27...
- Page 5 Align bottom rails (#2) to the holes of the side frames (#1R/L). Align washer (#A) to the holes of the side frames (#1R/L), then secure by using bolts (#E). #E x 8pcs...
- Page 6 Align upper bed frame (#3) to the holes of the side frames (#1R/L). Align washer (#A) to the holes of the side frames (#1R/L), then secure by using bolts (#E). #E x 8pcs Prepare 8 bolts assembly by inserting washer (#B) onto bolts (#D).
- Page 7 Prepare 4 bolts assembly by inserting washer (#C) onto bolts (#F). Align metal joints (#7R/L) to the holes of the side frames (#1R/L), then secure by using bolts (#F) onto hex nut (#G). 1) Align front and back bed frames (#5,6) to the holes of the joins (#7R/L).
- Page 8 Flatten bottom bed frames (#5,6), then secure by using buckles (#8) and safety hook (#9). ASSEMBLY COMPLETED...
- Page 9 Safety Warnings 1.Follow the information on the warnings appearing on the upper bunk end structure and on the carton . Do not remove warning label from bed. 2.Always use the recommended size mattress or mattress support,or both,to help prevent the likelihood of entrapment or falls. 3.Surface of mattress must be at least 5 in(127mm).
