Summary of Contents for Furniture of America CM-BK937

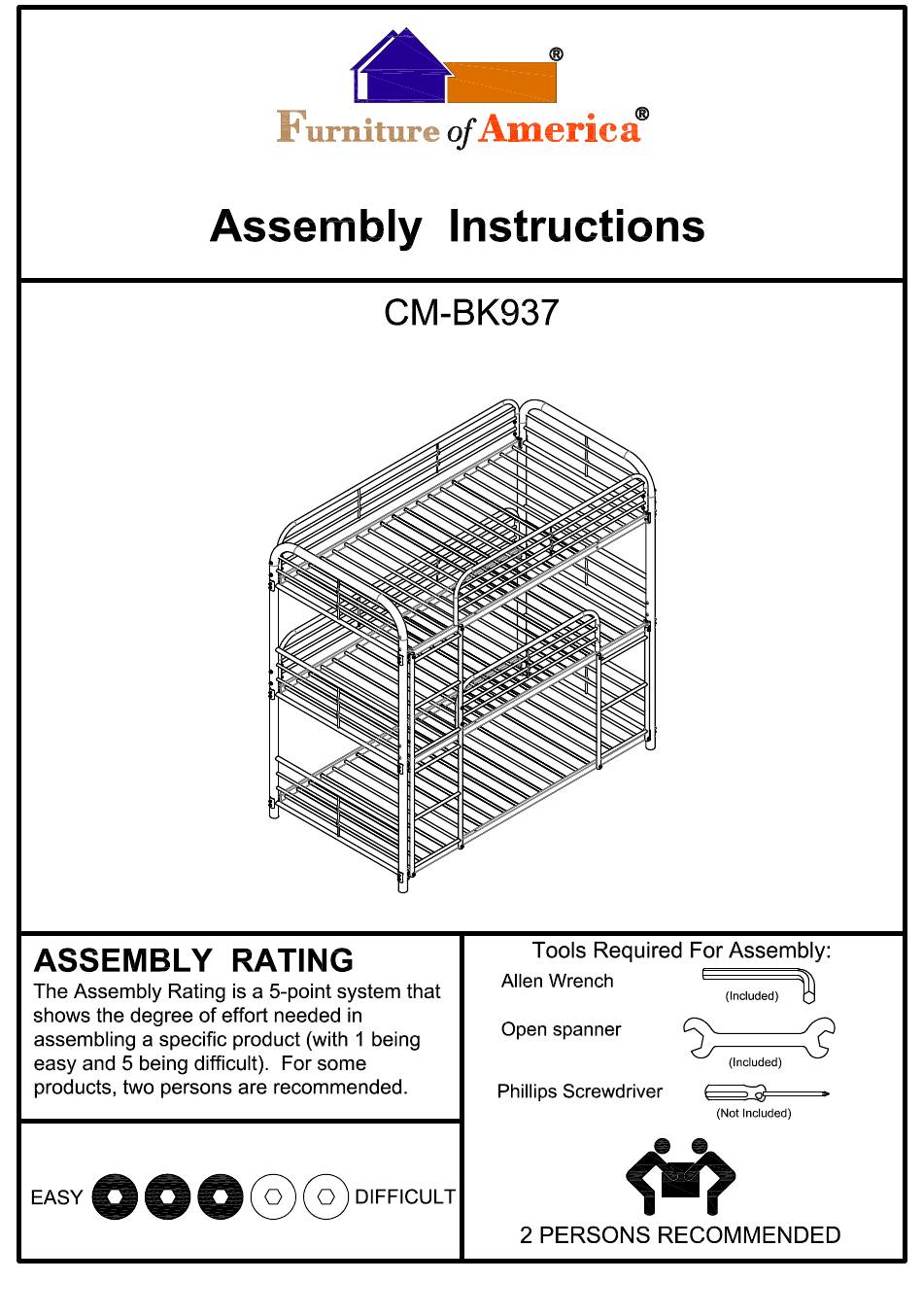

- Page 1 For more information contact our team: service.ec@foagoup.com Rev: 18-12-05 Page 1 of 12...
- Page 2 Page 2 of 12...
- Page 3 Page 3 of 12...
- Page 4 Page 4 of 12...
- Page 5 DO NOT FULLY TIGTHEN ALL BOLTS UNTIL ASSEMBLY IS COMPLETED. Align side support frames (#1) to the bed slat (#2), then secure by using bolts (#C) with washers (#A). Page 5 of 12...
- Page 6 Align bed slat (#2) to the side support frames (#1), then secure by using bolts (#C) with washers (#A) Align bed slat (#2) to the side support frames (#1), then secure by using bolts (#C) with washers (#A) Page 6 of 12...
- Page 7 Align long ladder (#3) to the holes of the bunk bed, then secure by using bolts (#D) with washers (#E), to hex nut (#G). Align short ladder (#4) to the holes of the bunk bed, then secure by using bolts (#D) with washers (#E), to hex nut (#G).
- Page 8 #D x 3pcs Align front middle guardrail (#5) to the holes of the bunk bed, then secure by using bolts (#D) with washers (#E), to hex nut (#G). Align front top guardrail (#6) to the holes of the bunk bed, then secure by using bolts (#B) with washers (#E), to hex nut (#G).
- Page 9 Align back guardrail (#7) to the holes of the bunk bed, then secure by using bolts (#B) with washers (#E), to hex nut (#G). Align back guardrail (#7) to the holes of the bunk bed, then secure by using bolts (#B) with washers (#E), to hex nut (#G).
- Page 10 Use plugs (#J,K) to cover holes. Wall Wall SCREWDRIVER 1) Place bunk bed by the wall to measure out the general area of where the wall anchor should be placed. 2) Secure metal plate (#N) to the wall anchor (#O) by using screws (#M). Page 10 of 12...
- Page 11 Attach the straps (#P) to the guardrail and metal plate. Page 11 of 12...
-
Page 12: Safety Warnings
Safety Warnings 1.Follow the information on the warnings appearing on the upper bunk end structure and on the carton . Do not remove warning label from bed. 2.Always use the recommended size mattress or mattress support,or both,to help prevent the likelihood of entrapment or falls. 3.Surface of mattress must be at least 5 in(127mm).
