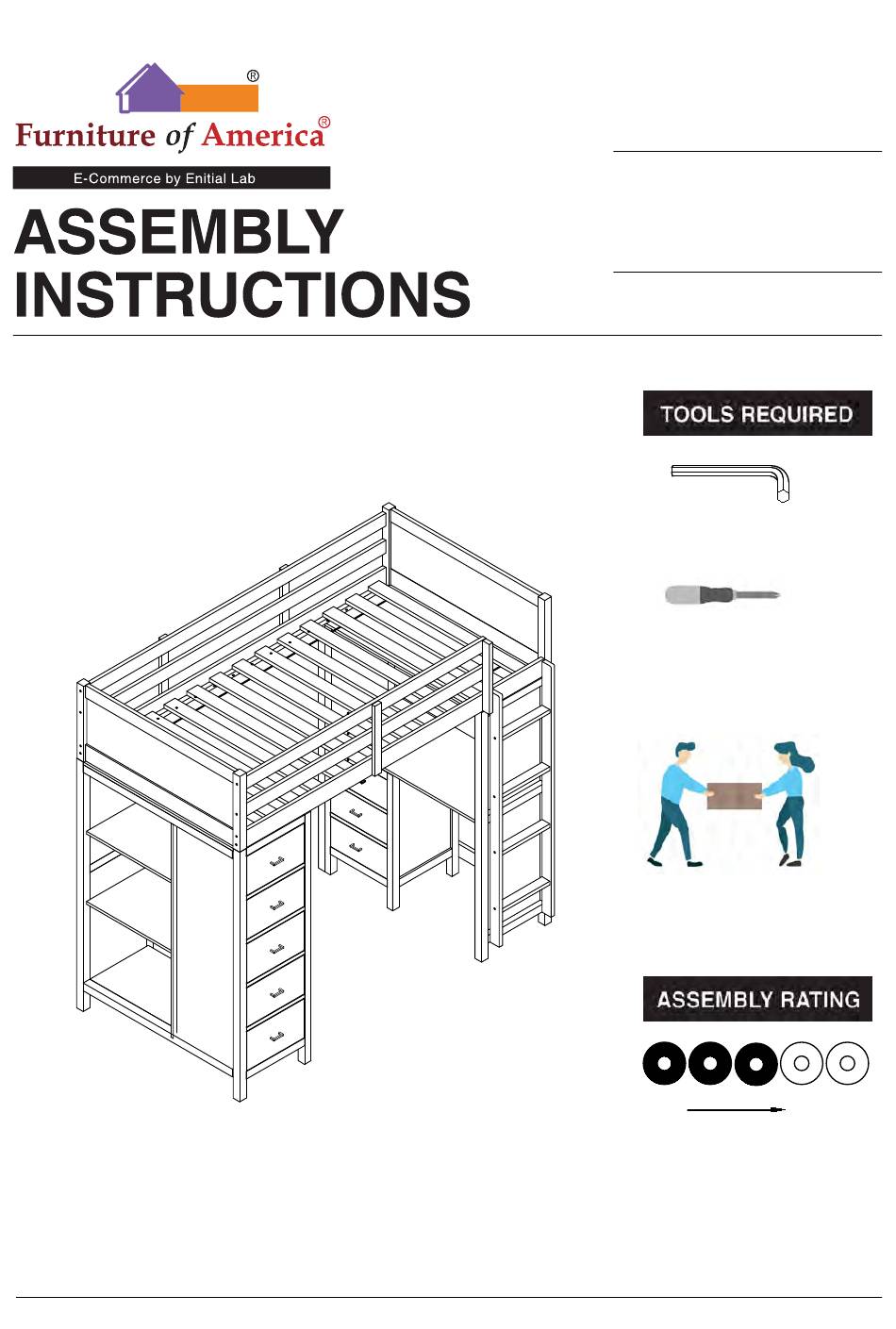

VERSION
# 20-01-11
1 / 12
MODEL #
CM-BK970
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK970
Summary of Contents for Furniture of America CM-BK970
- Page 1 MODEL # CM-BK970 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 12...
- Page 5 CM-BK970 #1 2pcs #2 2pcs #3 1pc #4 1pc Short Guadrail Long Guadrail Left Headboard Right Headboard #7 3pcs #8 1pc #6 1pc #5 1set Front Side rail Slat (13pcs) Guadrail Support Guadrail Support #9 1pc #10 2pcs #11 4pcs...
- Page 6 #D 26pcs #A 8pcs #B 9pcs #C 1pc Screw #4x35mm Bolt Ø5/16"x4" Bolt Ø1/4"x1-1/4" Allen Key 4mm #E 8pcs #F 12pcs #G 6pcs #H 6pcs Barel Nut Ø5/16" Dowel #10x40mm Screw Ø1/4"x3-1/8" Bolt Ø1/4"x1-5/8" #I 8pcs #K 6pcs 4pcs Bolt Ø1/4"x2" Dowel #10x30mm Bolt Ø1/4"x2-3/8"...
- Page 7 CM-BK970 is packed in 5 cases Carton Disignation Part Hardware Left Headboard Right Headboard CM-BK970-1 Slat (13pcs) CM-BK970-2 Short Guadrail #A x 8pcs Long Guadrail #B x 9pcs #C x 1pc Font Side Rail #D x 26pcs Guadrail Support #E x 8pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#F) to panels (#1,2). Part #1 x2pcs Part #2 x2pcs Hardware #F x12pcs Align guardrails (#1,2) to headboard (#3,4), then secure by using screws (#G). Part #3 x1pc Part #4 x1pc Part #6 x1pc Part #14 x1pc Hardware #A x8pcs Hardware...
- Page 9 ,then secure by using bolts (#H). using bolt (#B). Insert dowels (#L) onto the top holes of the bookcase (#9) and CM-BK970-4. Align bed on the top as shown in the diagram, then Part #9 x1pc secure by using bolts (#K).
- Page 10 ASSEMBLY INSTRUCTIONS Hardware #K x2pcs Secure bed to unit on the back side by using bolts (#K). Align ladder rungs (#11) to ladder rails Part #10 x1pc (#10,12), then secure by using screws (#I). Part #11 x4pcs Part #12 x1pc Hardware #I x8pcs 10 / 12...
- Page 11 ASSEMBLY INSTRUCTIONS Align ladder to bunk bed, then secure by using bolts (#K,H) as shown in the diagram. Hardware #H x2pcs Hardware #K x2pcs Part #5 x1set Hardware #D x26pcs Align slats (#5) to the bed, then secure by using screws (#D). 11 / 12...
- Page 12 ASSEMBLY INSTRUCTIONS Attach drawer handles to the front of the drawers. 12 / 12...
-
Page 13: Safety Warning
SAFETY WARNING To help prevent serious or fatal injuries from entrapment or falls Follow the information on the warnings appearing on the upper bunk bed structure and on thi carton. Do not remove warning label from the bed. . Always use the recommended type and size mattress or mattress support, or both, to help prevent the likehood of entrapment or falls. - Page 14 MODEL # CM-BK970-4 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 15 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 16 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 17 4 / X X X X X X X 8...
- Page 18 DESK CM-BK970-4 #18 1pc #15 1pc #16 1pc #17 3pcs Right Frame Top Panel Back Rail Left Frame #19 1pc Shelf Panel #M 8pcs #C 1pc #K 2pcs #N 8pcs Allen Key 4mm Washer Ø1/4" Bolt Ø1/4"x2-3/8" Bolt Ø1/4"x3-3/8" #O 20pcs...
-
Page 19: Exploded View
Exploded View Insert dowels (#O) to panels (#17,18,19). Part #17 x3pcs Part #18 x1pc Part #19 x1pc Hardware #O x20pcs 6 / 8... - Page 20 ASSEMBLY INSTRUCTIONS Align panels (#17) to side frame (#15), then secure by using bolts (#M) onto washers (#N). Part #15 x1pc Part #17 x3pcs Hardware #M x3pcs Hardware #N x3pcs Align panels (#18) onto side frame (#15), then secure by using bolts (#K). Align panel (#19) Part #18 x1pc onto side frame (#15), then secure by using...
- Page 21 ASSEMBLY INSTRUCTIONS 1) Align side frame (#16) to unit, then secure side frame (#16) to panel (#18) by using bolts (#K). Part #16 x1pc Hardware #K x1pc Hardware #M x4pcs Hardware #N x4pcs Secure panels (#17,19) onto side frame (#16) by using bolts (#M) with washers (#N).
