Advantech ASMB-922I Startup Manual

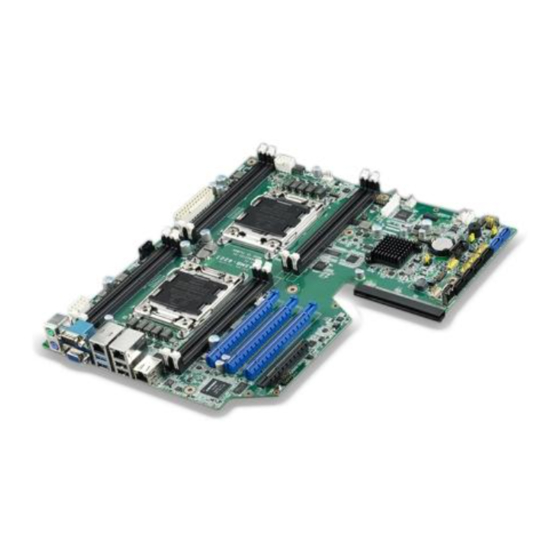

ASMB-922I Intel® Xeon® E5-2600 series Dual 2011 Socket
EATX Server Board with 4 PCIe Expansion Slots
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 ASMB-922I Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 2:
Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the ASMB-922I series Rev. A1
Part No. 2006922I10
Print in China
Specifications
Standard SBC Functions
• CPU: LGA2011 Intel ® Xeon® E5-2600 series
• BIOS: AMI 64 Mb SPI BIOS
• Chipset: Intel® C602J PCH
• System Memory: 8* DDR3 REG/ECC/Non-ECC
1066/1333/1600 unbuffered DIMM, Max. 128 GB
Note:
• SATA Interface: 4 x SATA2 3 Gb/s ports, 2 x SATA3
6Gb/s, supports Intel Matrix Storage (for Windows only)
software RAID 0, 1, 10 & 5.
• Serial ports: Two serial ports, only support RS-232
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 level timer intervals
• USB port: Supports up to eleven USB 2.0 ports (1*Type-
A) and two USB 3.0 ports
VGA Interface
• Chipset: Aspeed AST2300
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1:Intel 82579LM; LAN2: Intel I210; LAN3:
Realtek 8201EL(10/100Mbps for IPMI, ASMB- 922I sku
only)
Mechanical and Enviroment
• Dimensions (L x W): 330 x 304 mm (13" x 12")
• Power supply voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 19.69 A, +5 V@ 7.77 A, +12
V @ 14.66 A, +12 V(8P1) @ 22 A, +12 V(8P2) @ 22 A,
+5 Vsb@ 2 A
• Operating temperature: 0 ~ 40° C (depending on CPU)
• Weight: 1.7 kg (weight of board)
1st Edition
May 2013
Due to the inherent limitations of PC architecture,
the system may not fully detect 128 GB RAM
when 128 GB RAM is installed.
ASMB-922I Startup Manual 1
