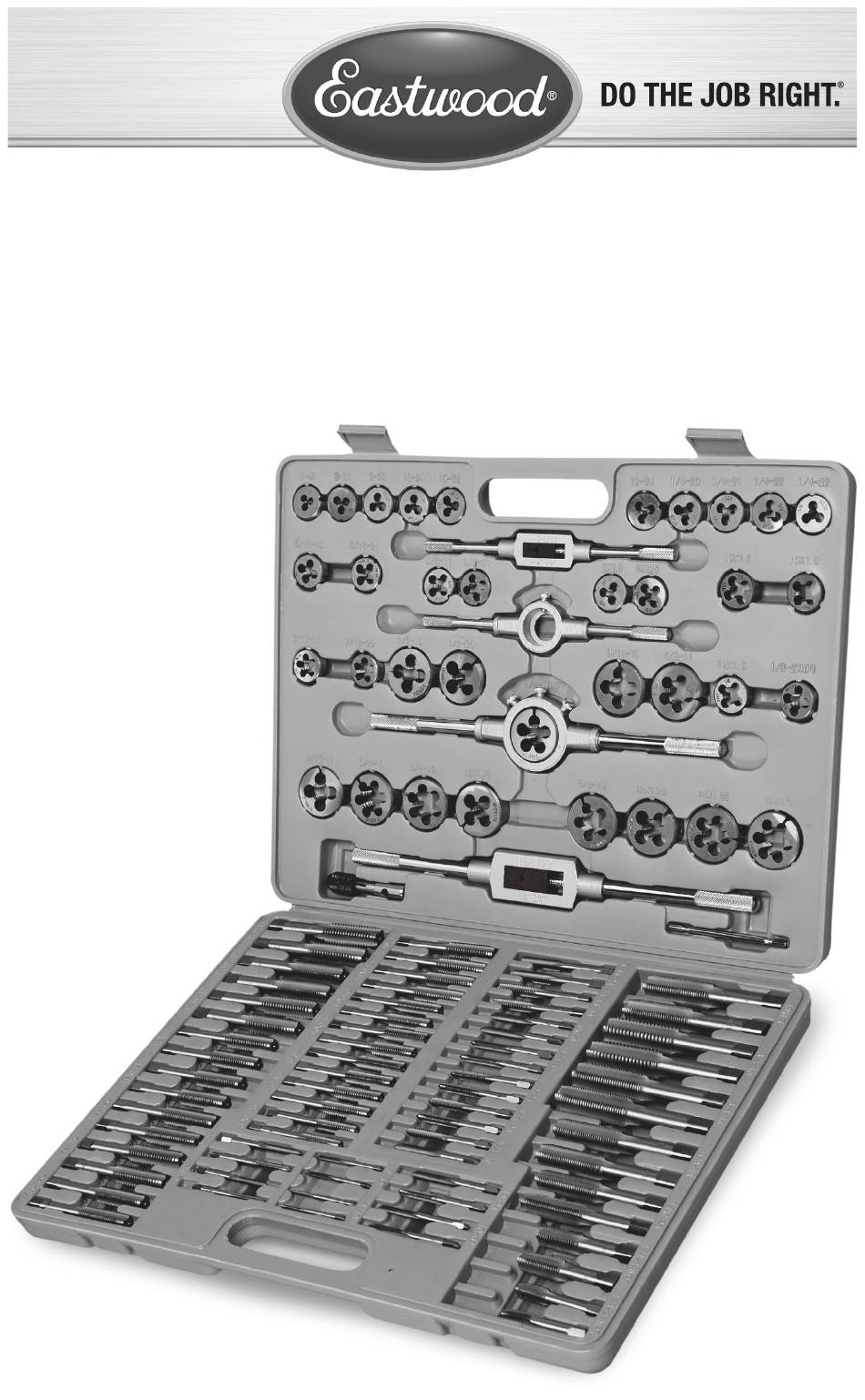

- Page 1 Item #33862 TAP & DIE SET INSTRUCTIONS...

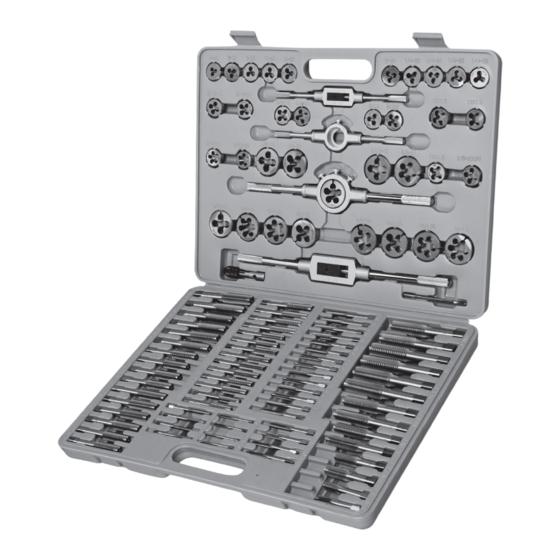

- Page 2 The EASTWOOD 110 PIECE TAP AND DIE SET offers a full array of both SAE and Metric, Tap and Die thread sizes to handle most any thread cutting project. A selection of Tap and Die holders provide positive and secure control of Taps and Dies while performing thread cutting operations. The included SAE and Metric Thread Gauges allow accurate measuring of existing threads to be matched.
-
Page 3: Safety Information
DO NOT APPLY EXCESSIVE FORCE! • Taps may break inside of a drilled bore. If excessive force is required, reverse direction of cutting, remove chips and resume cutting. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 4 - Loosen the three thumbscrews on the back of the Die Holder, rotate the aperture to set the Guide Jaws to lightly contact the O.D. of the rod being threaded. - Re-tighten the three aperture thumb screws finger tight. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 5: Thread Cutting
If excessive resistance is felt, stop immediately to avoid breaking a Tap. • Typical tapping procedure is one revolution then back out 1/2 turn to release chips. • When the tapping operation is complete, slowly, and steadily back out the Tap. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 6 NOTES Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 7 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
