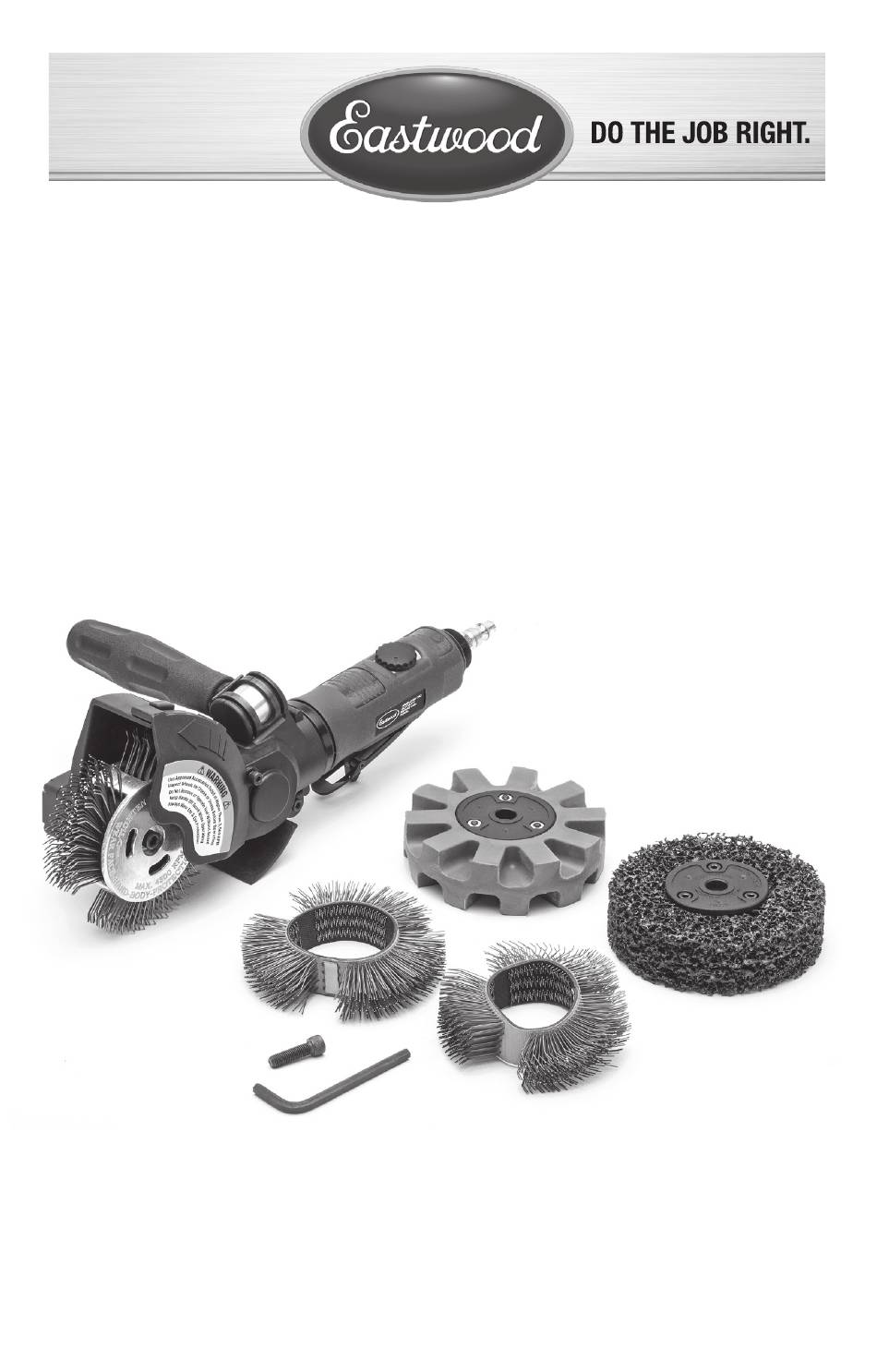

- Page 1 Item #30216 PNEUMATIC ROTARY REMOVAL TOOL INSTRUCTIONS...
- Page 2 • Always make sure the work piece being cleaned/sanded is securely clamped or anchored to allow two-handed operation of the tool. • Repetitive motion and extended exposure to vibration may harm hands and arms. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 3 Your Eastwood Rotary Removal Tool is a heavy-duty professional quality tool ruggedly designed for many years of reliable service. It features a wheel guard enclosure and an ergonomic multi-position, auxiliary handle for maximum safety. A high-torque, ball bearing supported, 4 vane motor and hard- ened spur gears provide smooth operation and long life.
- Page 4 • Always use two hands while operating tool, do not force but allow the rotational speed of the wheel to do the work. • Be sure that the workpiece is clamped down or held securely to always allow two hands to operate tool. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 5 • Slide the die-cast inner Drive Hub over the Sleeve, Spacer and Wire Band assembly then add the outer die-cast Hub making sure the triangular indexing and the tabbed features are seated properly (Fig D). To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 6 Hex Drive Spindle. (Fig E). • Insert the Socket Head Cap Screw into the Fig. H center hole of the Cleaning Wheel Hub (Fig H) and tighten securely with the included 5mm Hex Key. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 7 • With the air supply disconnected, periodically check that the Socket Head and Wheel Retaining screw is tight. To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 8 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/30216 manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.345.1178...
