Eastwood 31338 Instructions Manual

Eastwood 31338 Instructions Manual

1/2” drive micrometer torque wrench
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

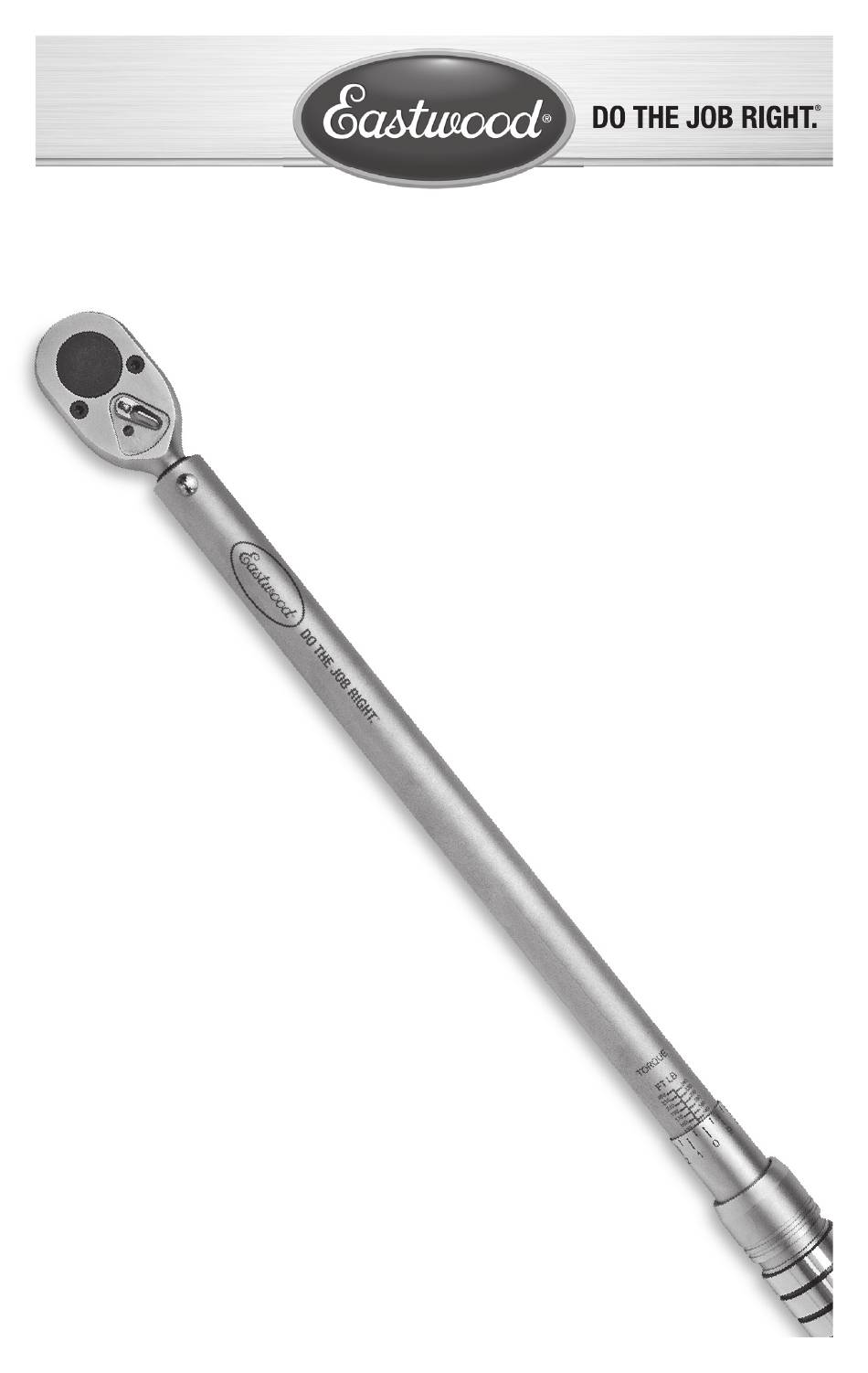

Part #31338
1/2" DRIVE MICROMETER
TORQUE WRENCH
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 31338 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eastwood 31338

Summary of Contents for Eastwood 31338

  • Page 1 Part #31338 1/2” DRIVE MICROMETER TORQUE WRENCH INSTRUCTIONS...

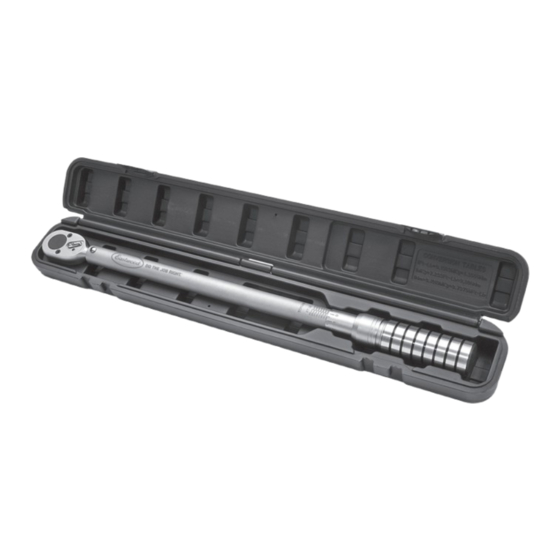

  • Page 2 (1) Torque Wrench (1) Heavy Duty Blow Molded Storage Case SPECIFICATIONS Range: 30 to 250 ft-lbs in 0.5 ft-lb increments 1/2” Drive 24 Tooth, Reversible Ratchet +/- 4% Clockwise Accuracy, +/- 6% Counter-Clockwise Accuracy Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
  • Page 3 • Inspect before every use, if tool appears damaged do not use. • Ensure all sockets and ancillary tools used in conjunction with this torque wrench are rated to handle the intended torque setting. To order parts and supplies: 800.345.1178 >> eastwood.com...
  • Page 4 4. The wrench is now set for operation. Do not turn the handle below the FIG. 2 minimum torque setting or above the maximum torque setting. Shown set to 70 ft-lb FIG. 3 Shown set to 73 ft-lb Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
  • Page 5 Adapter length Torque wrench length TW = Torque set on wrench Actual torque applied with extension in place TW = (TE x L) / (L+E) (TW x (L+E))/ L To order parts and supplies: 800.345.1178 >> eastwood.com...
  • Page 6 • If the Torque Wrench has not been used or has been in storage for some time, operate it sev- eral times at a low torque setting to permit the internal lubricant to re-coat working parts. • Periodically coat tool with a rust preventative coating such as a light machine oil. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
  • Page 7 To order parts and supplies: 800.345.1178 >> eastwood.com...
  • Page 8 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/31338manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.345.1178 Outside US: 610.718.8335...
