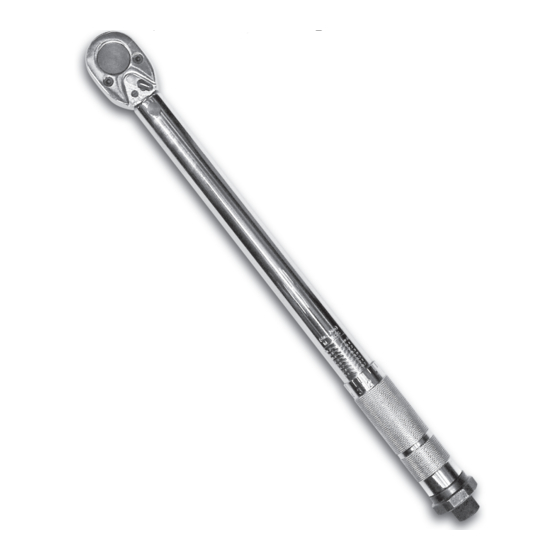

- Page 1 Part #s 31483, 31484, 31485 MICROMETER TORQUE WRENCH INSTRUCTIONS...
- Page 2 WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE is used to address practices not related to personal injury. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 3 • Inspect before every use, if tool appears damaged do not use. • All sockets, extensions or accessory tools used in conjunction with this torque wrench must be rated to handle the intended torque setting. To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 4 • The Torque Wrench is now ready for use. FIG. 3 Do not rotate the Rotating Handle Sleeve beyond or below the maximum range or the Torque Wrench factory calibration will be destroyed. Shown set for 42 ft-lbs Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 5 • Always bring fasteners to near final tightness with conventional tools before tightening with Torque Wrench to final torque. Never use the Torque Wrench as a general ratchet to tighten or loosen fasteners or permanent damage can occur. To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 6 FIG 4. Adapter length Torque wrench length FIG. 4 TW = Torque set on wrench Actual torque applied with extension in place TW = (TE x L) / (L+E) (TW x (L+E))/ L Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
- Page 7 Do Not drop the Torque Wrench or allow it to fall. • Keep the Torque Wrench stored in a clean, dry location, in the supplied case. Periodically coat with a rust preventative coating such as a light machine oil. To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 8 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/31482manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.345.1178 Outside US: 610.718.8335...
