- Page 1 Part #32290 METAL CUTTING JIG SAW INSTRUCTIONS...
-
Page 2: Specifications

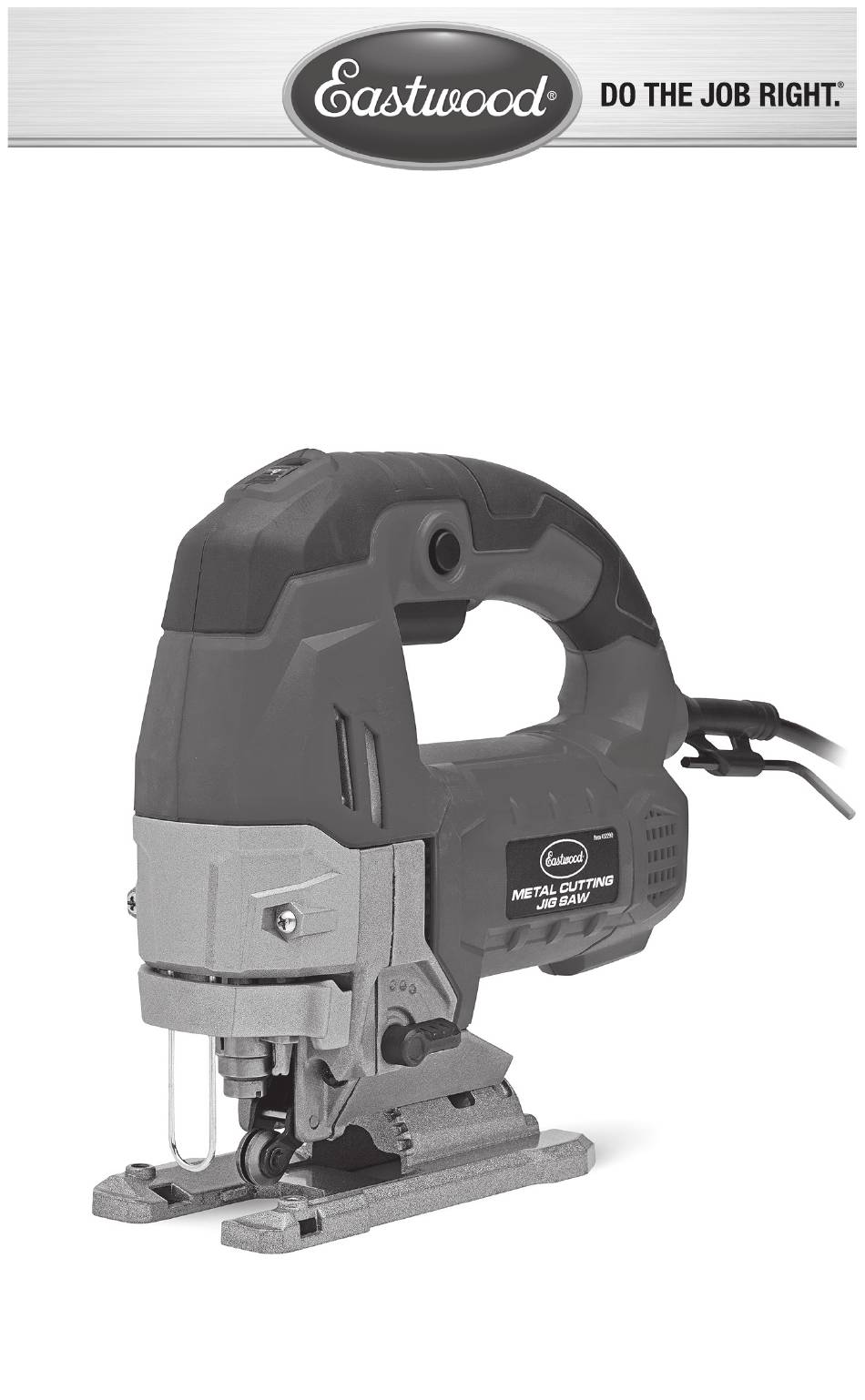

The EASTWOOD METAL CUTTING JIG SAW was designed with a powerful 6.5-amp motor and precision cut gearing for maximum cutting torque when needed. It features a quick-release blade changing feature, a 4-position orbital blade motion control, chip dispersal blower for maximum view of cut and an integral LED light. -
Page 3: Important Safety Information
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 4: Personal Safety
Use of the power tool for operations different from those intended could result in a hazardous situation. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com... -
Page 5: Additional Safety Information
• This Saw can eject a trail of sparks at high speed which can ignite flammable materials or injure others nearby. Do not operate in the vicinity of flammable materials and keep all persons and pets away from the work area. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 6 Orbital Motion When the Lever is placed in the full “Down” Position, there is no Orbital action and the Blade travels in a straight vertical, Up and Down motion (FIG 4). Orbit Off Blade Motion Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 7 Saw Base, slide the Fence (marked in 0.5 Centimeter gradua- tions) to the desired position then tighten set screws to lock it in place. FIG. 9 To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 8: Operation
Blade Holder (FIG 11) making sure the teeth face forward and the back of the blade rides in the groove of the Blade Support Bearing (FIG 11). Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com... -
Page 9: Maintenance
• Check tightness of all hardware. • Check operation and alignment of all guards. • Inspect Blade for cracks, damage, or wear. • Clean dirt and debris from Saw base and motor air cooling slots. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 10 NOTES Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 11: Troubleshooting
Allow Blade to cut by reciprocating motion Applied While alone. Do Not Force. Cutting Motor Overheats Dirt and cutting debris buildup in Use a brush or compressed air to remove motor cooling air debris. slots To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 12: Additional Items
2" x 5/16”, 24 TPI, Bi-Metal, Unified T-Shank Blades, 5 pack If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
