Operation Manual

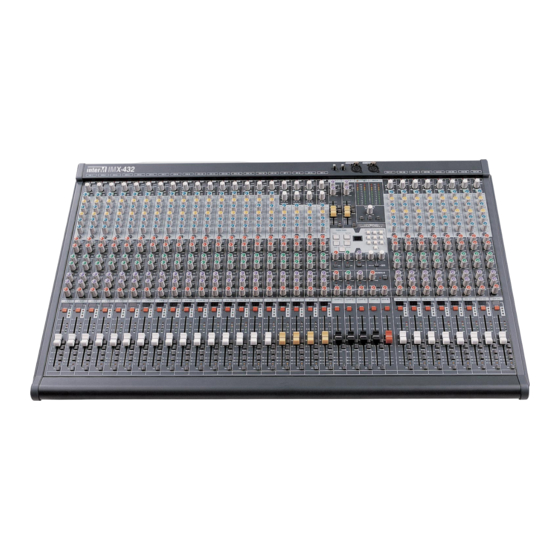

Hybrid Mixing Console (16ch/24ch/32ch)
IMX-416/424/432

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMX-416 and is the answer not in the manual?

Questions and answers

Related Manuals for Inter-m IMX-416

Summary of Contents for Inter-m IMX-416

  • Page 1 Operation Manual Hybrid Mixing Console (16ch/24ch/32ch) IMX-416/424/432...
  • Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    Auxiliary Master ..........................13 Mix Master ............................14 EFX Return .............................16 Monitor and Talk Back ........................17 Master Control ..........................19 Applications ..........................21 Block Diagram ..........................22 Specifications ..........................23 Dimensions ............................25 Service Procedures............................29 Schematic .............................29 Parts List ............................29 Variations and Options .......................29 Warranty ............................29 IMX-416/424/432...

  • Page 4: Unpacking

    S3125A S3125A IMX-416/424/432...

  • Page 5: Introduction

    Thank you for choosing the IMX-400 SERIES professional mixing console. Your IMX-400 SERIES benefits from over 20 years of Inter-M’s professional audio design and manufacture. This operation manual should quickly acquaint you with the console’s features and controls, while offering some suggestions for its application.

  • Page 6: Mono Input Channel

    80Hz and 12kHz respectively. Its two bell-response MID bands are semi-parametric, meaning that the center frequency of the curve can be varied. The IN switch inserts all four bands into the signal path, which is useful when checking the effectiveness of your EQ settings. IMX-416/424/432...
  • Page 7 If, for example, you are panning from hard left to center, you will notice a 3dB drop in the left channel as you do so. This “panning law” ensures that signals sound equally loud at all pan positions. IMX-416/424/432...
  • Page 8 “MIX” switch connects signal to MIX L and R bus, and “MONO” switch is for “MONO” bus. The “MONO” bus signal is not affected by PAN control. 13. PFL Routes the signal to the “PFL” bus for isolated auditioning and detailed metering. IMX-416/424/432...
  • Page 9 DO NOT use unbalanced sources with the phantom power switched on. The voltage on pins 2 & 3 of the XLR connector may cause serious damage. Please minimize the fader before pressing this switch to avoid speaker’s damage. 18. MIC INPUT Microphone inputs are on Female XLR. The impedance of this input is approximately 2kΩ. IMX-416/424/432...

  • Page 10: Stereo Input Channel

    High Mid and Low Mid bands have a bell response centered around 3.15kHz and 315Hz respectively. The IN switch inserts all four bands into the signal path, which is useful when checking the effectiveness of your EQ settings. IMX-416/424/432...
  • Page 11 If, for example, you are panning from hard left to center, you will notice a 3dB drop in the left channel as you do so. This “panning law” ensures that signals sound equally loud at all pan positions. IMX-416/424/432...
  • Page 12 “MIX” switch connects signal to MIX L and R bus, and “MONO” switch is for “MONO” bus. The “MONO” bus signal is not affected by PAN control. 14. PFL Routes the signal to the “PFL” bus for isolated auditioning and detailed metering. IMX-416/424/432...
  • Page 13 The voltage on pins 2 & 3 of the XLR connector may cause serious damage. Please minimize the fader before pressing this switch to avoid speaker’s damage. ST 1 17. MIC INPUT Microphone inputs are on Female XLR. The impedance of this input is approximately 2kΩ. IMX-416/424/432...

  • Page 14: Sub-Group

    1/4” TRS socket for inserting external devices. The send is pre-fader. The tip is wired to a ground compensated send, unbalanced return is via the ring and sleeve. Nominal I/O level is 0dBu. The “OUTPUT” TRS socket is impedance-balanced sob-group signal output. IMX-416/424/432...

  • Page 15: Auxiliary Master

    Connects the AUX output signal to monaural AFL bus. AUXILIARY SENDS AUX 2 AUX 1 AUX 6 AUX 5 AUX 4 AUX 3 3. AUX OUTPUTS The Auxiliary outputs are on TRS jack socket as impedance-balanced signal. The nominal level is 0dBu. IMX-416/424/432...

  • Page 16: Mix Master

    +10dB gain at fully clockwise, and unity at 0 position. 2. MIX MASTER “MIX” bus signal sent from input channels is mainly via this MIX master. MIX master has a 100mm stroked stereo vertical fader, MUTE and left / right BALANCE control. IMX-416/424/432...
  • Page 17 5. 12 DOT LED BAR METER 12-segment peak response meter shows the level of MIX output and MONO/SUB output. The MONO/SUB meter also shows PFL and AFL levels when a PFL or AFL button is activated. LED METER’s “0” is 0dB. IMX-416/424/432...

  • Page 18: Efx Return

    Connects the channel signal to AFL bus. 5. L / R Input A pair of 1/4” TRS jack sockets allow balanced input. AUXILIARY RETURN L/MONO L/MONO Nominal input level is 0dBu, and approximately input impedance is about 10kΩ. RET 2 RET 1 IMX-416/424/432...

  • Page 19: Monitor And Talk Back

    This sends the talkback mic signal to the outputs selected in the above routing section. It’s a momentary action button, so you have to hold it down for it to work. 8. TALK BACK MIC A Talkback Mic can be connected via this front panel XLR. IMX-416/424/432...
  • Page 20 DISCONNECTING THE MAINS SUPPLY LEAD FROM THE APPARATUS. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED SERVICE ENGINEER, THROUGH THE APPROPRIATE Inter-M DEALER. SERVICING SHOULD ONLY BE CARRIED OUT BY TECHNICALLY COMPETENT PERSONNEL. IMX-416/424/432...

  • Page 21: Master Control

    2) Select PGM number which you want to recall by using 10 numeric keys. You can use from “01” to “99” to recall your settings. 3) Press “EXE” key. The RECALL is done. If you wanted to stop SAVE action, please press “RECALL” key again, or the function will be automatically cancelled after 30 seconds without pressing “EXE” key. IMX-416/424/432...
  • Page 22 * SOFTWARE RESET FUNCTION Please turn the power on with pressing the number “2” key and keep it pressed until the current software version is displayed in the segment display. All data which the user stores in the memory is deleted. IMX-416/424/432...

  • Page 23: Applications

    RESET AUTO REVERSE MEMO RELAY BLANK DUBBING OUTPUT LEVEL PLAY SKIP HIGH DUBBING HIGH OPEN OPEN MODE PLAY LOGIC DECK RECORDING PLAY LOGIC DECK POWER MEMO R/PLAY SKIP/B PAUSE MUTE DECK A DECK B PHONES DECK A DECK B IMX-416/424/432...

  • Page 24: Block Diagram

    HYBRID MIXING CONSOLE Block Diagram Block Diagram IMX-416/424/432...

  • Page 25: Specifications

    HYBRID MIXING CONSOLE Specifications ............Specifications *0dBu=0.775V, 0dBV=1V IMX-416 IMX-424 IMX-432 MIC INPUT XLR 3 type female Electronically Balanced Input Impedance >1.5kΩ Nominal Level -60dBu to +10dBu(+30dBu Max.) Hi-Z INPUT TRS Jack socket Electronically Balanced Input Impedance >10kΩ Nominal level...
  • Page 26 HYBRID MIXING CONSOLE IMX-416 IMX-424 IMX-432 REC OUTPUT RCA pin type Unbalanced Output Impedance <150Ω Minimum load >2kΩ Nominal level -10dBv(+10dBV Max.) PHONES OUTPUT TRS Jack socket Unbalanced Minimum load >35Ω Maximum power 100mW / 600Ω LAMP XLR 4 type female(pin3=V+, pin4=V-) Output Voltage +12V(350mA Max.)

  • Page 27: Dimensions

    HYBRID MIXING CONSOLE Dimensions Dimensions - TABLE TYPE(IMX-432) REAR VIEW SIDE VIEW FRONT VIEW PUSH PUSH IMX-416/424/432...
  • Page 28 HYBRID MIXING CONSOLE - TABLE TYPE(IMX-424) REAR VIEW FRONT VIEW SIDE VIEW PUSH PUSH IMX-416/424/432...
  • Page 29 HYBRID MIXING CONSOLE - TABLE TYPE(IMX-416) REAR VIEW FRONT VIEW SIDE VIEW PUSH PUSH IMX-416/424/432...
  • Page 30 HYBRID MIXING CONSOLE - RACK TYPE(IMX-416) REAR VIEW TOP VIEW FRONT VIEW SIDE VIEW PUSH PUSH IMX-416/424/432...

  • Page 31: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 32 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
