Summary of Contents for Inter-m IMX-824

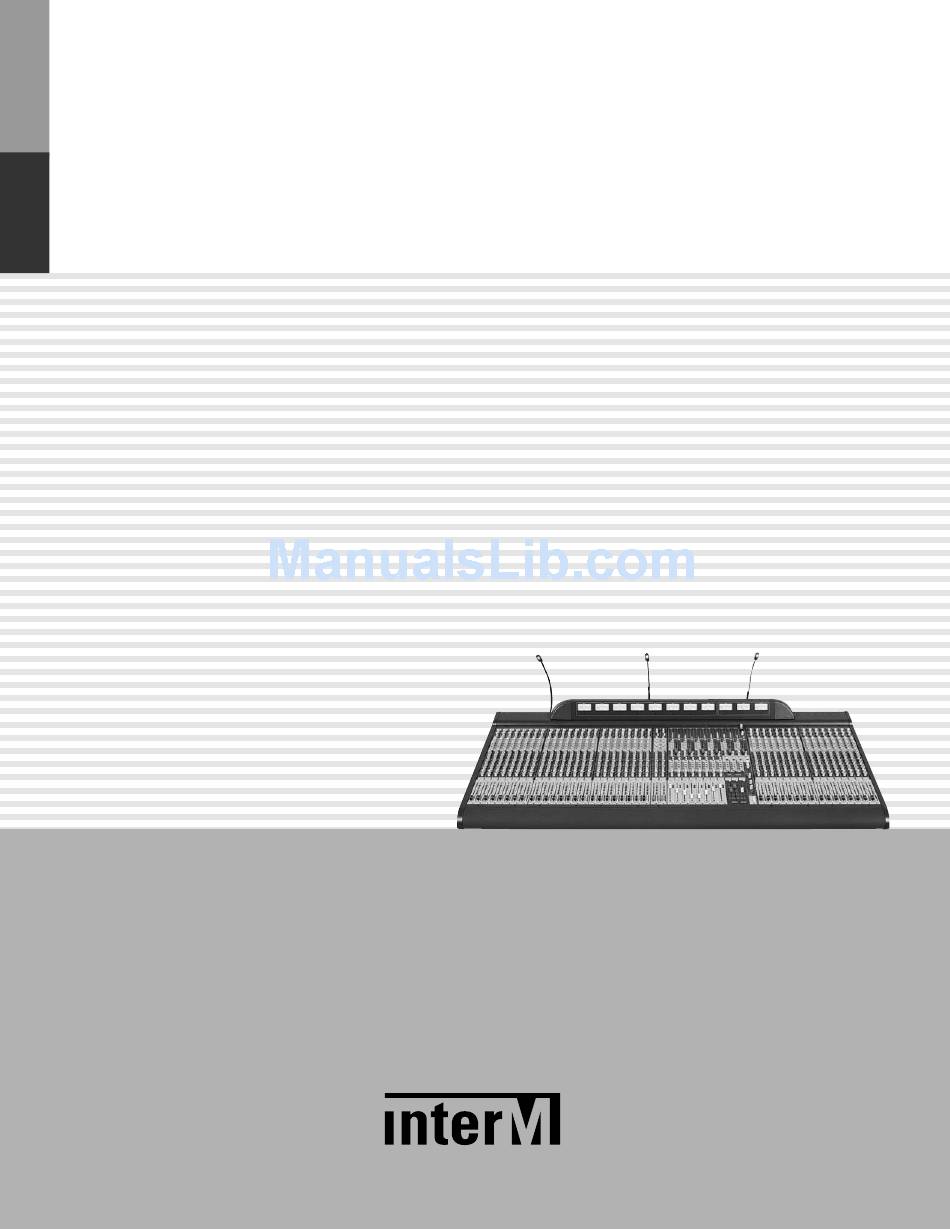

- Page 1 Operation Manual Mixing Console (24ch/32ch/40ch) IMX-824/832/840...
-
Page 2: Table Of Contents
MIXING CONSOLE Contents Contents Welcome Warning............................1 Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Introduction .............................3 Features ............................3 Mono Input Channel ........................4 Stereo Input Channel ........................8 Sub-Group/Aux Master ......................12 Mix Master/MTX Master ......................15 EFX Return Input ...........................18 Monitor and Talk Back ........................20 Cable and Connector Configurations ..................23... -
Page 3: Warning
Care should be taken so than objects do not fall and liquids are not spilled into the enclosure through openings.” IMX-824/832/840... -
Page 4: Unpacking
S3125A S3125A IMX-824/832/840... -
Page 5: Introduction
Each Stereo Return has 3-band EQ, 2 AUX sends, full Sub-group assignment, 60mm high quality fader and solo system. - FULL TALK-BACK SYSTEM Talk-Back assignment to AUX, Groups, MIX outputs can be selected. Matrix outputs have Talk-Back enable switches. IMX-824/832/840... -
Page 6: Mono Input Channel
80Hz and 12kHz respectively. Its two bell-response MID bands are semi-parametric, meaning that the center frequency of the curve can be varied. The IN switch inserts all four bands into the signal path, which is useful when checking the effectiveness of your EQ settings IMX-824/832/840... - Page 7 If, for example, you are panning from hard left to center, you will notice a 3dB drop in the left channel as you do so. This “panning law” ensures that signals sound equally loud at all pan positions. IMX-824/832/840...
- Page 8 MUTE switch will turn on at half bright. 14. SOLO Routes the signal to the solo bus for isolated auditioning and detailed metering. 15. CHANNEL FADER A professional 100mm fader gives you smooth, high-resolution control over the channel level. IMX-824/832/840...
- Page 9 30k ohms. If using an unbalanced source, please make sure to link Sleeve and Ring together to avoid unwanted noise. 4. MIC INPUT Microphone inputs are on Female XLR. The impedance of this input is approximately 2k ohms. IMX-824/832/840...
-
Page 10: Stereo Input Channel
High Mid and Low Mid bands have a bell response centered around 3.15kHz and 315Hz respectively. The IN switch inserts all four bands into the signal path, which is useful when checking the effectiveness of your EQ settings. IMX-824/832/840... - Page 11 Similarly, with the balance control set to hard right only the right signal will be sent to even numbered buses. If, for example, you are panning from hard left to center, you will notice a 3dB drop in the left channel as you do so. This “panning law” ensures that signals sound equally loud at all pan positions. IMX-824/832/840...
- Page 12 MUTE switch will turn on at half bright. 12. SOLO Routes the signal to the solo bus for isolated auditioning and detailed metering. 13. CHANNEL FADER A professional 100mm fader gives you smooth, high resolution control over the channel level. IMX-824/832/840...
- Page 13 XLR connectors. The XLR and TRS connectors for each channel are summed together prior to the input preamplifier. The nominal input impedance of the both XLR and TRS inputs are 10k. IMX-824/832/840...
-
Page 14: Sub-Group/Aux Master
A professional 100mm fader gives you smooth, high re- solution control over the sub-group level. 7. AFL Connects the sub-group’s Post-Fader signal to mono AFL bus. You can monitor the signal on your phones and the AFL BAR METER. IMX-824/832/840... - Page 15 IMX-800 SERIES allows either the Aux or Group outputs to use the long-throw faders and inserts. This is done for each output using the FLIP control. Please take care when using this control, as the physical output and insert sockets are also affected by your selection. See above for more details. IMX-824/832/840...
- Page 16 In normal operation, the top XLR connector is the output for the Auxiliary bus, while the lower XLR and INSERT jack are for the Group signal. When the front panel “FLIP” switch is activated, the signals to the connectors are swapped. IMX-824/832/840...
-
Page 17: Mix Master/Mtx Master
2. MUTE Mutes the After-fader signal of the channel path. Pre-fader signal, which provided to Matrix-PRE path is NOT affected by this switch. 3. MASTER FADER A 100mm stroke fader adjusts the channel signal level continuously from to +10dB. IMX-824/832/840... - Page 18 SOLO or AFL button is activated. 5. MATRIX MASTER - MASTER LEVEL: The Matrix master level ranges from +10dB. - AFL: Connects the MTX output to monaural AFL bus - TB: Connects talk-back signal to MTX output. IMX-824/832/840...
- Page 19 Each MIX output has a 1/4” TRS type insert point. The tip is wired to a ground compensated send, unbalanced return is via the ring and sleeve. Nominal I/O level is 0dBu. 3. MIX OUTPUTS MIX L, R and C outputs are on male XLR connectors. IMX-824/832/840...
-
Page 20: Efx Return Input
The PK lamp warns of signal levels approaching the upper headroom limit, which means about 3dB to the clip point. We recommend that you reduce the source’s output level to avoid nasty clipping! 8. BUS ROUTING Connects the channel signal to each of the GROUP and MIX buses. IMX-824/832/840... - Page 21 1. L / R INPUT A pair of 1/4” TRS jack sockets allow balanced input. Nominal input level can be selected by a level switch on the RETURN section as -10dBv or +4dBu. Input impedance is about 10k ohms. IMX-824/832/840...
-
Page 22: Monitor And Talk Back
6. DESTINATION Selects destination for both the tone generator and the talk- back circuit. 7. TALK BACK This sends the talkback mic signal to the outputs selected in the above routing section. This switch is a PTT (push-to-talk) momentary pushbutton. IMX-824/832/840... - Page 23 Use only stereo phones! When a mono connector is plugged into the stereo connector, it connects both sides of the headphone amplifier to a single load. (1/4" Phone 3-conductor Connector) (1/4" Phone 2-conductor Connector) IMX-824/832/840...
- Page 24 This can be used to monitor the recording of a performance without the danger of creating feedback. Nominal input level is -10dBv. 3. RECORD Standard RCA sockets for stereo consumer audio equipment. This signal is a 2-channel mix of the MIX L/C/R outputs. IMX-824/832/840...
-
Page 25: Cable And Connector Configurations
Sleeve (= ground) to both pin-3 and pin-1. Black/LOW White(Red)/HIGH Shield/GND (XLR) DO NOT use unbalanced sources with the phantom power switched on. The voltage on pins 2 & 3 of the XLR connector may cause serious damage. IMX-824/832/840... - Page 26 A special cable (custom-made for use as an insertion cable) is required for interconnection with external equipment, with separate send/return 2-conductor (unbalanced) plugs (as shown below): Signal Send Signal Return Send to External Device Insert Point Screen Return from External Device IMX-824/832/840...
-
Page 27: Meter Unit(Option)
VU meter. There also is a mechanical adjustment for the meter needle position. Gently use a screwdriver to adjust the meter needle position control (this looks like a screw head on the lower front face of the meter) to attain mechanical “zero”. IMX-824/832/840... -
Page 28: Applications
Reverb 1 Keyboard or other line level input Any Line Reverb 2 Level Input D.I. Vocal Microphones DAT or Cassette Deck GEQ-1231D/2231D(Graphic Equalizer) GEQ-1231D/2231D(Graphic Equalizer) R-150PLUS/300PLUS/500PLUS (Amplifier) Stereo Compressor L-800/1400/1800/2400/3000 Stage Monitors Stage Monitors (Amplifier) RS-3800 (POWER SUPPLY) Main Speaker IMX-824/832/840... -
Page 29: Block Diagram
MIXING CONSOLE Block Diagram Block Diagram IMX-824/832/840... -
Page 30: Appendix
This may be changed so the AUX SEND PRE signal is not muted when the channel MUTE switch is activated by changing the position of an internal jumper from the standard setting of “YES MUTE” to the user preference of “NO MUTE.” AUX Pre MUTE IMX-824/832/840... -
Page 31: Specifications
MIXING CONSOLE Specifications ............Specifications *0dBu=0.775V, 0dBV=1V IMX-824 IMX-832 IMX-840 MIC INPUT XLR 3 type female Electronically Balanced Input Impedance >2kΩ Nominal Level -60dBu to +10dBu(+30dBu Max.) Hi-Z INPUT TRS Jack socket Electronically Balanced Input Impedance >30kΩ Nominal level -34dBu to +36dBu... - Page 32 MIXING CONSOLE IMX-824 IMX-832 IMX-840 MONITOR OUTPUT XLR3 type male Unbalanced Output Impedance <150Ω Minimum load >2kΩ Nominal level 0dBu(+18dBu Max.) INSERTION SEND TRS Jack socket Unbalanced Output Impedance <150Ω Minimum load >2kΩ Nominal level 0dBu DIRECT OUTPUT TRS Jack socket Unbalanced Output Impedance <150Ω...
- Page 33 MIXING CONSOLE DIMENSIONS 1799 1532 1265 IMX-824/832/840...
-
Page 34: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. IMX-824/832/840... - Page 35 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
