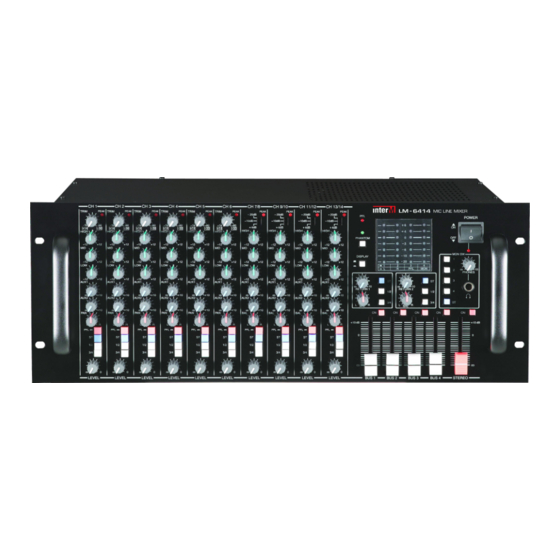

- Page 1 Operation anual Mic ine Mixer M-6414 * Rack mount products in the Western Hemisphere(North merica, South merica, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
MIC LINE MIXER Contents Contents Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Operation ............................3 Front Panel ............................4 Rear Panel ............................7 pplications ............................9 Block Diagram ..........................10 Specifications ..........................11 Service Procedures............................13 Schematic .............................13 Parts List ............................13 Warranty ............................13 LM-6414... -
Page 4: Unpacking
MIC LINE MIXER Unpacking Unpacking lthough your LM-6414 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
Keep volume levels at minimum gain before switching on. NOTE:The system’s operation is delayed by approximately three seconds after pressing the C Mains power switch. This is due to the built-in protection circuitry, designed to protect speakers and other system components. LM-6414... -
Page 6: Front Panel
These buttons assign the channel’s input signal to the stereo output bus, or to the Bus 1/2 or Bus 3/4 outputs. ny combination of output busses may be chosen. 6. POWER SWITCH This switch is used to switch the unit on and off. When the unit is on, the Power Indicator LED (20) is lit. LM-6414... - Page 7 14. BUS 2 ND 4 M STER F DERS These faders adjust the output level of signals routed to Bus 2 and Bus 4. 15. STEREO M STER F DER This fader adjusts the output level of signals routed to the Master Bus. LM-6414...
- Page 8 ON : STEREO L/R, PFL, MON, Level OFF : BUS 1, 2, 3, 4 24. UX1/2 SEND G IN CONTROLLER These are gain controller for each input channel audio to send UX1/2 SEND for external device such as effector. LM-6414...
-
Page 9: Rear Panel
Line-level inputs on unbalanced 1/4” phone and RC connectors. These are provided for input of signal from line-level sources such as keyboards, guitar preamps, tuner, cassette or CD players, or line outputs from an external mixer. 4. MIC INPUTS 1-6 Mic-level inputs on balanced three-pin XLR connectors. LM-6414... - Page 10 These unbalanced 1/4” TRS jacks are provided for input and output of an external processor on the individual channel. The Insert signal is unaffected by the Channel Input levels. 12. LINE INPUTS 1-6 Line-level inputs on balanced 1/4” phone connectors. LM-6414...
-
Page 11: Pplications
AUTO REVERSE RESET AUTO REVERSE MEMO RELAY BLANK DUBBING OUTPUT LEVEL PLAY SKIP HIGH DUBBING HIGH MODE PLAY LOGIC DECK RECORDING PLAY LOGIC DECK POWER DECK A MEMO R/PLAY SKIP/B PAUSE MUTE DECK B PHONES DECK A DECK B LM-6414... -
Page 12: Block Diagram
MIC LINE MIXER Block Diagram Block Diagram LM-6414... -
Page 13: Specifications
MIC LINE MIXER Specifications Specifications LM-6414 Mic Input -60dB/600 Balanced Input Sensitivity/Impedance Line Input -30dB/47k Balanced Mic Bus 1~4, ST Out 84dBm Mic to Monitor 74dBm (PFL: 64dBm) Mic to UX 84dBm Maximum Voltage Gin Line to Bus 1~4, ST Out... - Page 14 MIC LINE MIXER DIMENSIONS LM-6414...
-
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
