B&B Electronics ELinx EIR-G-SFP-T Quick Start Manual

Quick Start Guide

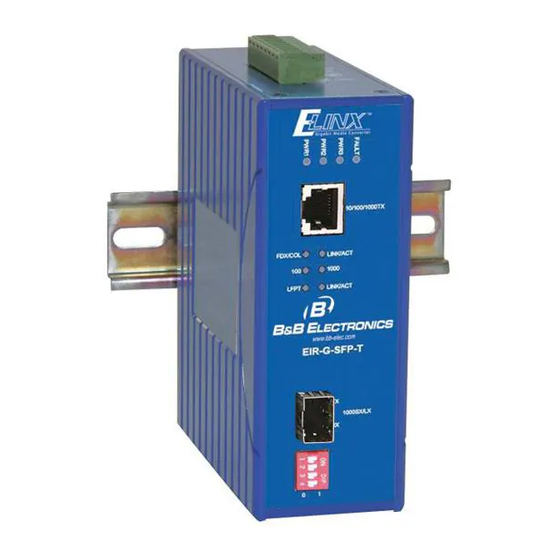

ELinx EIR-G-SFP-T
10/100/1000Base-TX to Gigabit
SFP Media Converter
1
Items Included
Gigabit Media Converter
o
o This Quick Start Guide
Note: Required but not included. Power supply, 12 – 48
VDC 10.6 watts. A gigabit 1000Base-SX/LX SFP
module.
2
Hardware Installation
1. This is a DIN rail mountable hardened media converter
and can be located in environments with temperatures
ranging from -40 to 75° C. The relative humidity should
be less than 95%, non-condensing.
2. Mount the converter on standard DIN rail by hooking
the top rear of the media converter onto the top edge
of the DIN rail. Using a small flat head screwdriver,
pull down on the spring-loaded tab on the bottom of
the unit and push the unit back against the rail.
Release the spring-loaded tab locking the media
converter to the bottom edge of the DIN rail. Reverse
these steps to remove. Also, can be panel mounted
with optional kit (EIRPMKT).
3. Insert 1000Base-SX/LX module into SFP socket.
Accepts 1000Base multi-mode or single-mode fiber
SFP modules.
4. Insert RJ-45 Ethernet line into 1000Base-T port first and
then connect the fiber port. The copper port auto
negotiates speed and supports auto MDI/MDIX for uplink
purposes.
5. Provide DC power to the unit between 12 – 48 volts.
While only one power source is required to power up
the media converter, using two sources provides
redundancy for mission critical applications. The
removable terminal block accepts 12 – 24 AWG wire.
Be sure polarity matches diagram next to the terminal
block. Terminals labeled Power are positive while
GND is negative.
6. The terminal labeled Fault is connected to a dry
contact and is rated 1 amp at 24VDC. The dry
contact is normally closed when power is connected
to both Power1 and Power2. When power fails on
either Power1 or Power2 the contact will open
signaling power failure. Power3 has no effect.
7. Power3 is available for use with optional 12VDC AC
to DC power adapter (PS12VDC3P).

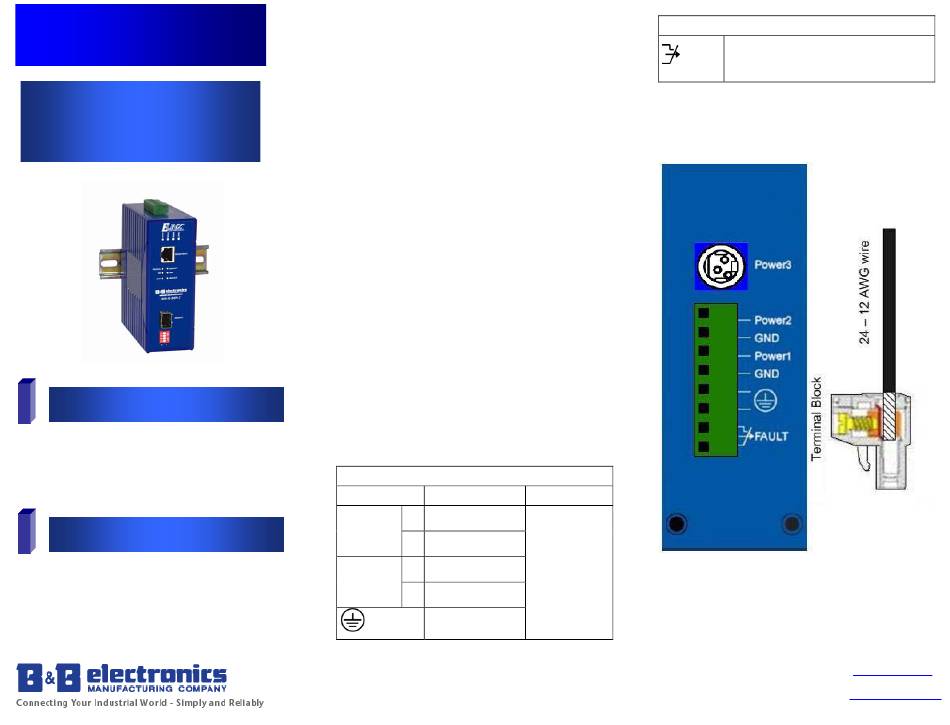

Power Input Assignment
Power3 12VDC
＋
12-48VDC
Power2
－
Power Ground
＋
12-48VDC
Power1
－
Power Ground
Earth Ground
Relay Alarm Assignment
FAULT
DC Jack
Terminal Block
