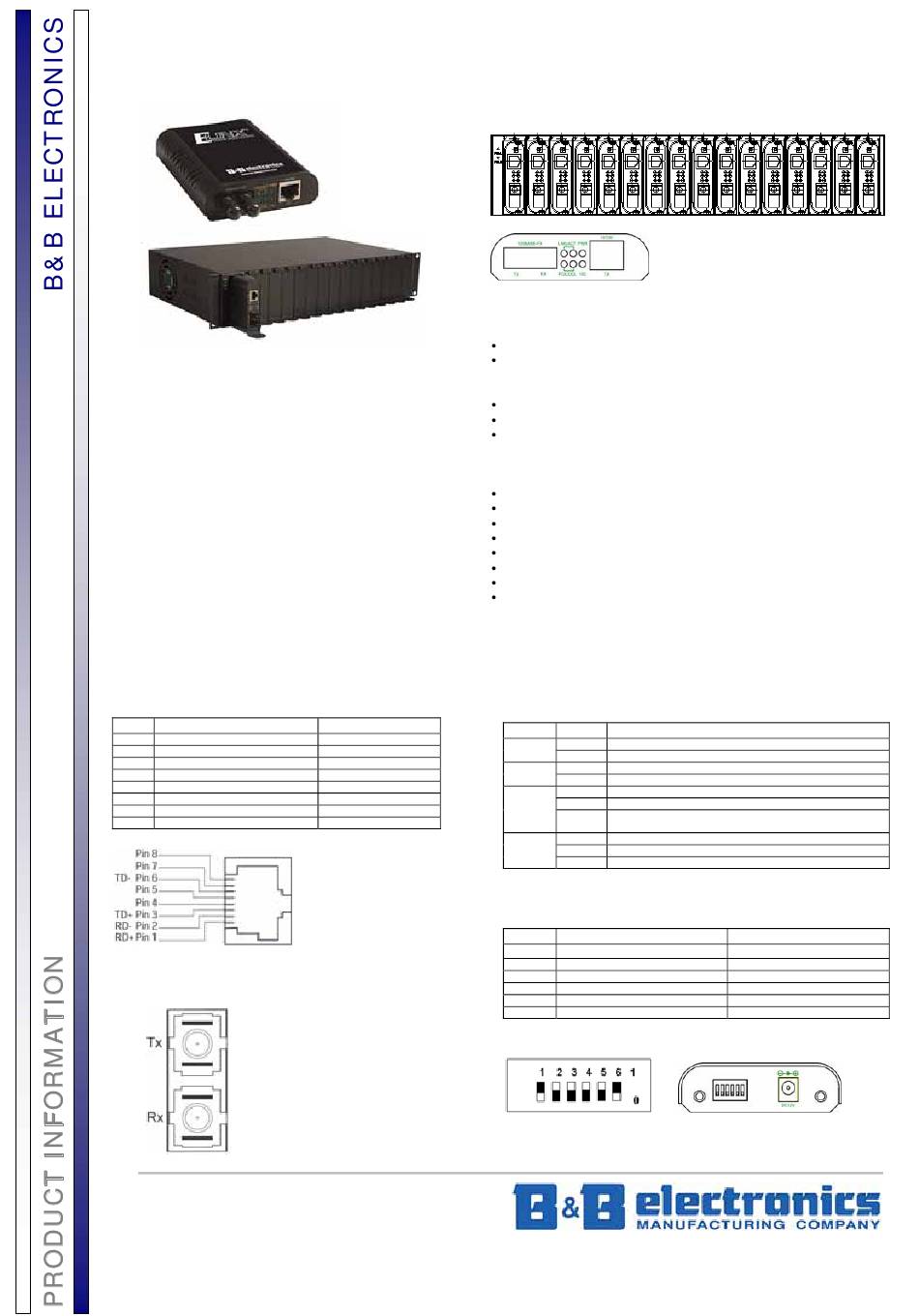

B&B Electronics EIS Series Installation Manual

Ethernet Media Converter
& Rack Chassis
This quick installation guide describes how to install and
use the Ethernet Media Converter and optional Rack
Chassis.
10/100BaseTX and 100BaseFX Connectors
10/100BaseTX Connections:
Pin Regular Ports
1 Receive Data + (input)
2 Receive Data – (input)
3 Transmit Data + (output)
4 NC
5 NC
6 Transmit Data – (output)
7 NC
8 NC
100BaseFX Connections:
The Tx (transmit) port of device 1
is connected to the Rx (receive)
port of device 2, and the Rx
(receive) port of device 1 to the Tx
(transmit) port of device 2.
+353 91 792444 Fax +353 91 792445 www.bb-europe.com orders@bb-europe.com support@bb-europe.com
Description
The media converter provides one channel for media conversion
between 10/100BaseTX and 100BaseFX. It can be used as a stand-
alone device or with a standard 19 inch chassis as shown below.
Features
Uplink Port
Transmit Data + (output)
Transmit Data – (output)
Receive Data + (input)
NC
NC
Receive Data – (input)
NC
NC
International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax 433-5104
European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland
One-channel media conversion: 10/100BaseTX & 100BaseFX
Fiber media:
Multi-mode fiber using SC or ST connectors
Single-mode fiber using SC connectors
Auto negotiation of speed and duplex mode on TX port
Auto MDIX on TX port
DIP switch configuration for:
Link-fault-pass-through
Fixed speed
Half/full duplex
Store-and-forward mechanism
Non-blocking full wire-speed forwarding rate
Supports broadcast storm filtering
Back-pressure & IEEE802.3x compliant flow control
Front panel status LEDs
External AC to DC power adapter (included)
Used as a stand-alone device or with a chassis
Hot-swappable when used with a chassis
LED's and DIP Switch
LED Status:
LEDs State Indication
PWR Steady Power on (PWR stands for POWER)
Off Power off
100 Steady 100Mbps network connection
Off 10Mbps network connection
LNK/ACT Steady Network connection established(LNK stands for LINK)
Transmitting or receiving data(ACT stands for ACTIVITY)
Flashing
Off Neither a network connection established nor
transmitting/receiving data
Connection in full duplex mode(FDX stands for FULL-DUPLEX)
FDX/COL Steady
Flashing Collision occurred(COL stands for COLLISION)
Off Connection in half-duplex mode
DIP Switch Settings:
Pos. DOWN (0)
1 Enable Link-fault-pass-through
2 RJ45 Auto Negotiation Enabled
3 RJ45 Forced to 100Mbps
4 RJ45 Forced to Full Duplex
5 Fiber Forced to Full Duplex
6
www.bb-elec.com orders@bb-elec.com support@bb-elec.com
EIS Series-1406 - 1/2
UP (1)
Disable Link-fault-pass-through
RJ45 Forced Mode
RJ45 Forced to 10Mbps
RJ45 Forced to Half Duplex
Fiber Forced to Half Duplex
