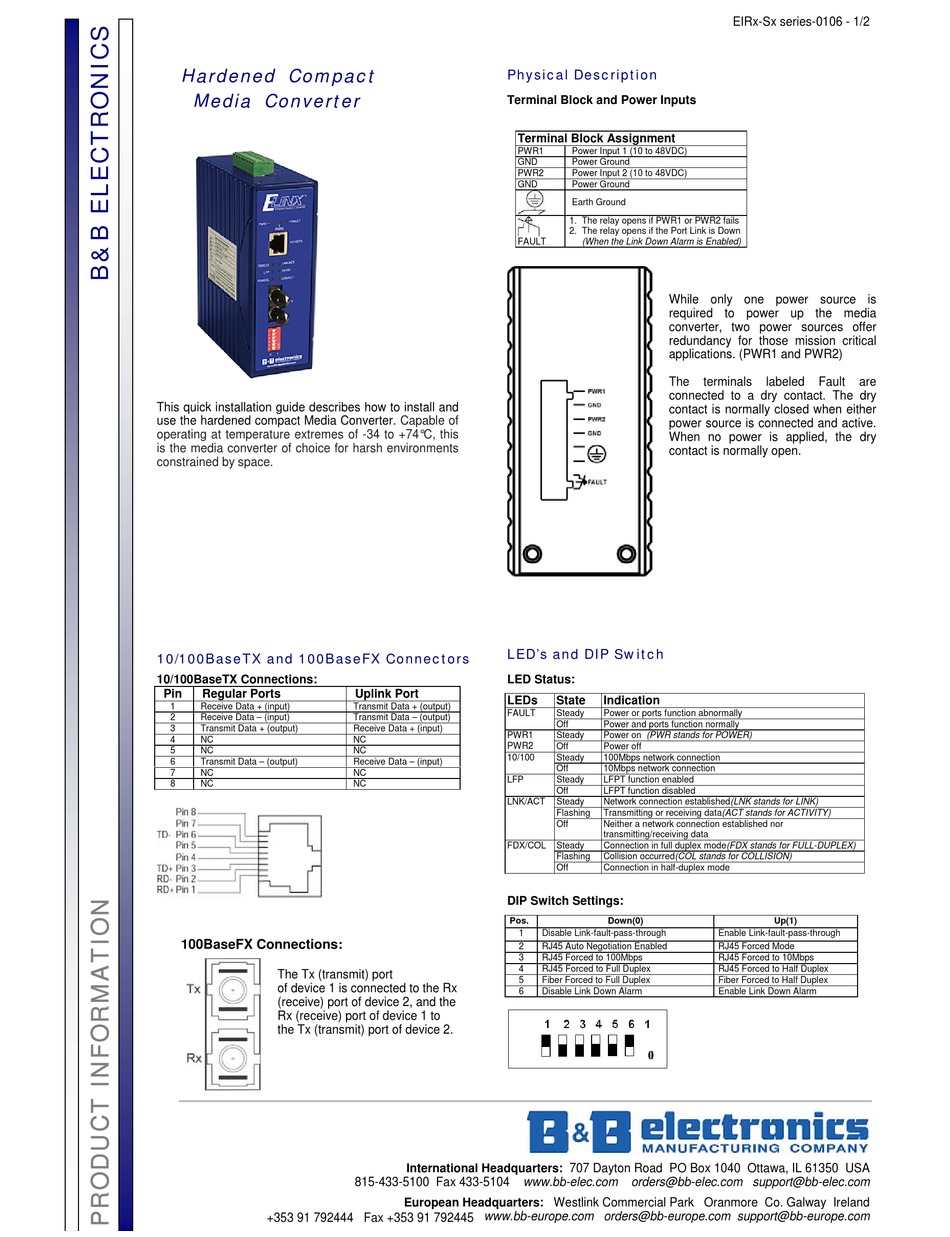

B&B Electronics EIR*-S series Quick Installation Manual

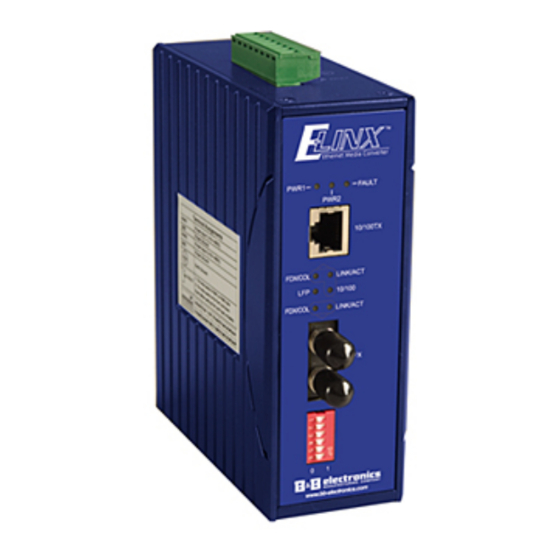

Hardened Compact
Media Converter
This quick installation guide describ d compact Media
This quick installation guide describes how to install and
Converter. Capable of operating at temperature
use the hardened compact Media Converter.
extremes of -34 to +74°C, this is the media converter
operating at temperature extremes of -34 to +74°C, this
choice for harsh environments constrained by space.
is the media converter of choice for harsh environments
constrained by space.
10/100BaseTX and 100BaseFX Connectors
10/100BaseTX Connections:
Pin Regular Ports
1 Receive Data + (input)
2 Receive Data – (input)
3 Transmit Data + (output)
4 NC
5 NC
6 Transmit Data – (output)
7 NC
8 NC
100BaseFX Connections:
The Tx (transmit) port
of device 1 is connected to the Rx
(receive) port of device 2, and the
Rx (receive) port of device 1 to
the Tx (transmit) port of device 2.
+353 91 792444 Fax +353 91 792445 www.bb-europe.com orders@bb-europe.com support@bb-europe.com
Physical Description
Terminal Block and Power Inputs
Terminal Block Assignment
PWR1
GND
PWR2
GND
FAULT
Capable of
LED's and DIP Switch
LED Status:
Uplink Port
LEDs
Transmit Data + (output)
FAULT
Transmit Data – (output)
Receive Data + (input)
PWR1
NC
PWR2
NC
10/100
Receive Data – (input)
NC
LFP
NC
LNK/ACT
FDX/COL
DIP Switch Settings:
Pos.
1
2
3
4
5
6
International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax 433-5104 www.bb-elec.com
European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland
Power Input 1 (10 to 48VDC)
Power Ground
Power Input 2 (10 to 48VDC)
Power Ground
Earth Ground
1. The relay opens if PWR1 or PWR2 fails
2. The relay opens if the Port Link is Down
(When the Link Down Alarm is Enabled)
While only one power source is
required to power up the media
converter, two power sources offer
redundancy for those mission critical
applications. (PWR1 and PWR2)
The terminals
connected to a dry contact. The dry
contact is normally closed when either
power source is connected and active.
When no power is applied, the dry
contact is normally open.
State Indication
Steady Power or ports function abnormally
Off Power and ports function normally
Steady Power on (PWR stands for POWER)
Off Power off
Steady 100Mbps network connection
Off 10Mbps network connection
Steady LFPT function enabled
Off LFPT function disabled
Steady Network connection established(LNK stands for LINK)
Flashing Transmitting or receiving data(ACT stands for ACTIVITY)
Off Neither a network connection established nor
transmitting/receiving data
Steady Connection in full duplex mode(FDX stands for FULL-DUPLEX)
Flashing Collision occurred(COL stands for COLLISION)
Off Connection in half-duplex mode
Down(0)
Disable Link-fault-pass-through Enable Link-fault-pass-through
RJ45 Auto Negotiation Enabled RJ45 Forced Mode
RJ45 Forced to 100Mbps RJ45 Forced to 10Mbps
RJ45 Forced to Full Duplex RJ45 Forced to Half Duplex
Fiber Forced to Full Duplex Fiber Forced to Half Duplex
Disable Link Down Alarm Enable Link Down Alarm
orders@bb-elec.com support@bb-elec.com
EIRx-Sx series-0106 - 1/2
labeled Fault are
Up(1)
